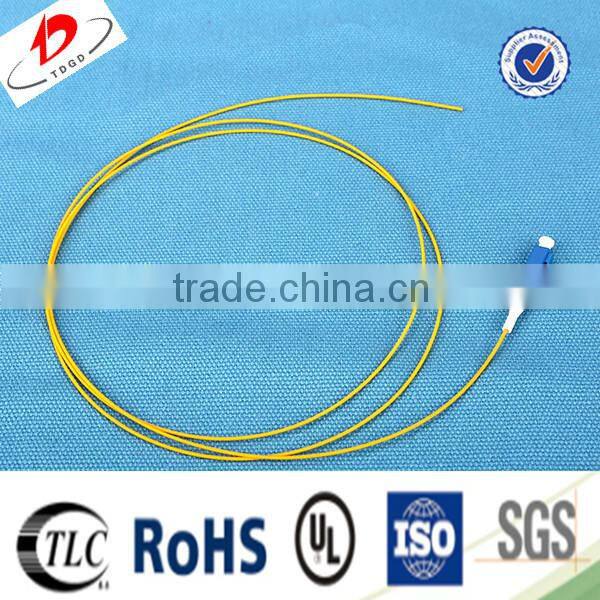

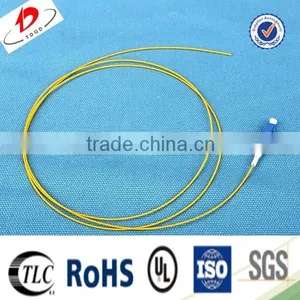

LC/SM/1M Fiber Optic Patchcord

Name: LC/SM/1M Fiber Optic Patchcord
Brand: TDTX
Price: USD $1 - 3 / Piece

FOB Price

USD $1 - $3 / Piece

10 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

TDTX

Model Number:

TDTX-patchcord-sc

Packaging Details

Box/ carton

Product Description

TDTX-JEFF CHAN

Specifications:

FC/APC-SC/APC Fiber Optic Patch Cord

Low IL and High RL

High precision alignment

Various fiber optic patch cords with good price

fiber optic patchcord
1.SM,MM,SImplex,Dumplex available
2.High return loss, Low insertion loss
3.Quick delivery time

Characteristics	Unit	Value/Performance			Comments
		SM		MM
		PC	APC
Basic
Insertion Loss (IL)	dB	<0.3			IEC 61300-3-4
Return Loss (RL)	dB	SPC>45 UPC>50	>60	>23	IEC 61300-3-6
Endurance	dB	<0.2			IEC 61300-2-2, coupling and uncoupling 500 cycles, clean every 25 cycles
Operating Temperature	°C	-20 ~ +70
Storage Temperature	°C	-40 ~ +70
Ferrule end-face geometry
Radius of Curvature (R)	mm	10-25	5-12	NA	Telcordia GR326(4.4.5)
Apex Offset	um	<50		NA	Telcordia GR325(4.4.5)
Fiber Protrusion	nm	<50	<100	NA	Telcordia GR326(4.4.5)
Fiber Under Cut	nm	<125@ R=7-10	<100	NA	Telcordia GR326(4.4.5). For PC, Under Cut <-0.02R3+1.3R2-31R+325 when R=10-25mm
Mechanical
Drop	dB	<0.2			IEC 61300-2-12, 1.5m, 5 drops, no damage
Vibration	dB	<0.2			IEC 61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5 hrs/axis
Flex	dB	<0.2			Telcordia GR326(4.4.3.2), 0.9kg, +90°, 100cycles, for 2mm or larger cable
Twist	dB	<0.2			Telcordia GR326(4.4.3.3), 1.35kg load, +2.5 turns, 10 cycles, for 2mm or larger cable
Pull Proof	dB	<0.2			Telcordia GR326(4.4.3.4), 3.4kg at 90°, 6.8kg at 0°, for 2mm or larger cable
Static Bending	dB	<0.2			IEC 794-1-2, 60mm diameter 10 turns
Crushing	dB	<0.2			IEC 794-1-2, 102kg for 2mm or larger cable, 10.2kg for 900m cable
Environmental
Salt mist		No sign of corrosion			IEC 61300-2-26, 5% NaC1, 30°C, 7 days
Cold	dB	<0.2			IEC 61300-2-17, -20°C, 96 hrs
Dry Heat	dB	<0.2			IEC 61300-2-18, 70°C, 96 hrs
Damp Heat	dB	<0.2			IEC 61300-2-19, 40°C, 95%RH, 96 hrs
Transmission
Characteristics	Unit	G652 SM		G655 SM	Std. 50um	62.5um	OM2	OM3
Max. Attenuation	dB/km (nm)	0.4/0.3 (1310/1550)		0.3 (1550)	2.8 (850)	3.0 (850)	2.8 (850)	2.8 (850)
Min. Bandwidth	MHz·km (nm)	-		-	500/500 (850/130)	200/200 (850/1300)	750 (850)	2000 (850)
Dispersion Coefficient	ps/ nm2·km	<3.0 (1310nm)		2.6-6.0 (1550nm)	-	-	-	-

Features	Applications
1. Push-pull latching mechanism	1. Telecommunication
2. Non-optical disconnect performance	2. Computer networks
3.High quality zirconia ferrules	3. CATV networks
4. Materials meet RoHS requirements	4. Active device termination
5. Riser, Plenum, or LSZH cables available	5. Instrumentation

Package Notice:

There are different packages for different fiber optic components or devices.

The usual package is Carton. For Fiber Optic Adapter,Fiber Optic Pigtail, Fiber Optic Patch Cord,Fiber Optic Attenuator,Fiber Optic Terminal Box, Fiber Optic Splice Closure.They have an inner package individually and then will be packed into an outer carton.For Fiber Optic Cable, It is Wooden Drum.

Lead Time & Shipment Practice:

We usually send goods via DHL / UPS / Fedex / EMS / ARAMEX and airway for small order.We would arrange it for you if you have special requirements on it. Generally speaking, goods can be sent in 3-8 working days (depends on your order) after received payment.

For bulk order,We will arrange shipment by Air or by Sea after agreement with our customers.

Terms of Payment?

Usually, we accept payment by 100% T/T in advance (Telegraphic Transfer), West Union, PayPal and International Credit Card (small amount of money).

Our Services

After Services:

We concentrate on our customers’ satisfaction, we have the professional after-service department, to solve the problems our customers meet in using, to enhance your benefits.We concentrate on our customers’ satisfaction, we have the professional after-service department, to solve the problems our customers meet in using, to enhance your benefits.

FAQ

Q: Can you supply OEM or Odm Service?

A: We can supply OEM/ODM service absolutely!

Q: May I get free sample?

A: Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available. However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...

Q: What kind of payment methods and price term?

A: EXW, CIF, CFR, FOB ..etc. We accept Paypal, West Union, T/T usually. But we also accept L/C or OA under special situation.

Q: Warranty?

A: Products against defects are found to be defective under normal use within 1 year will be repaired without charge. If assume defects can’t be repaired will be replaced without charge within 1 year.
