GPRS MBus Automatic Meter Reading System with EN1434-2008, EN13757-3 Protocol

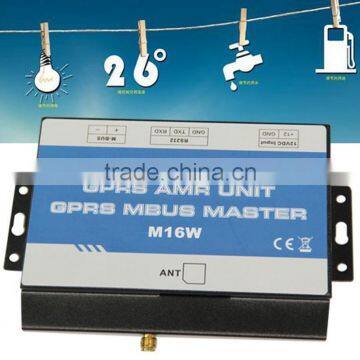

The GPRS M-Bus Master M Series is a wireless GPRS Automatic Meter Reading(AMR) System. It embedded with high-performance ARM®Cortex®-M3 32-bit RISC MCU with real-timeμC/OS-II RTOS and industrial GPRS Engine inside. It is special for communication between monitoring center and M-Bus meters, intelligent instrument and industrial meters over wireless GPRS Network. It is the best solution for meter reading master station or controller.

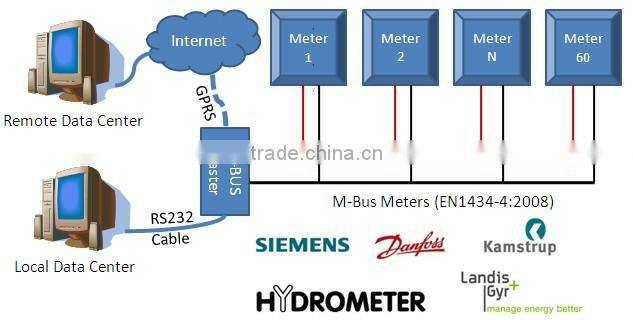

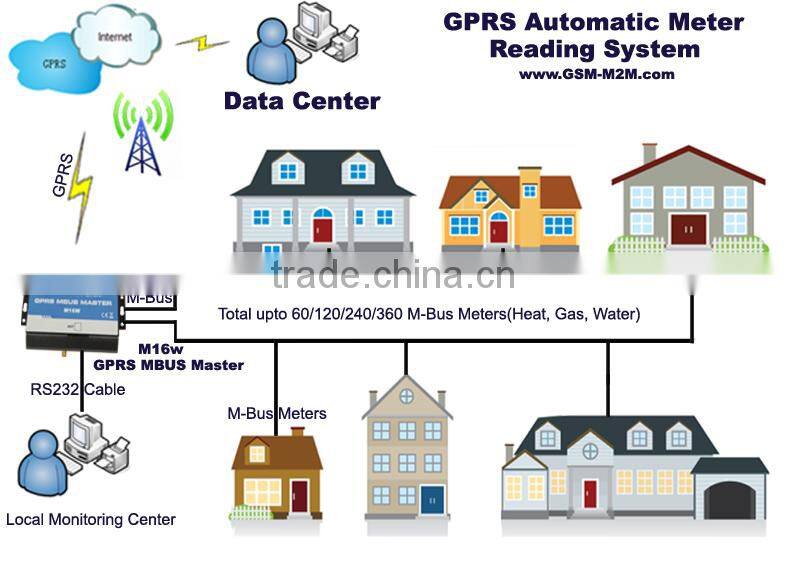

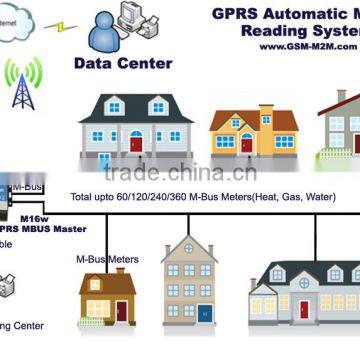

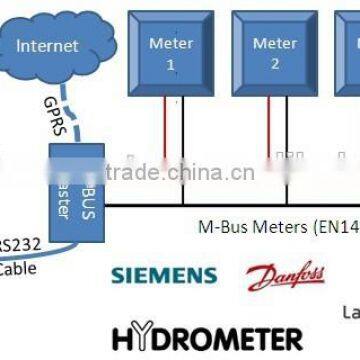

The GPRS M-Bus Master M Series is special for automatic meter reading(AMR) system, compatible with EN 1434-2008 protocol, it supports 60/120/240/360 M-BUS meter Slaves, like M-BUS heat meters, M-BUS Gas meters, M-BUS electricity meters, M-BUS Water meters and other M-BUS meters, and then transfer the meters data over wireless GPRS Network to Server.

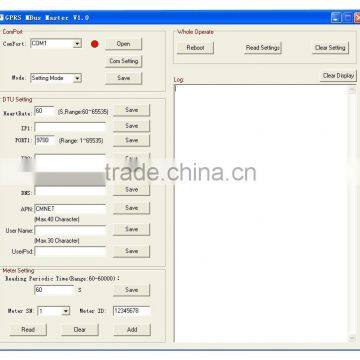

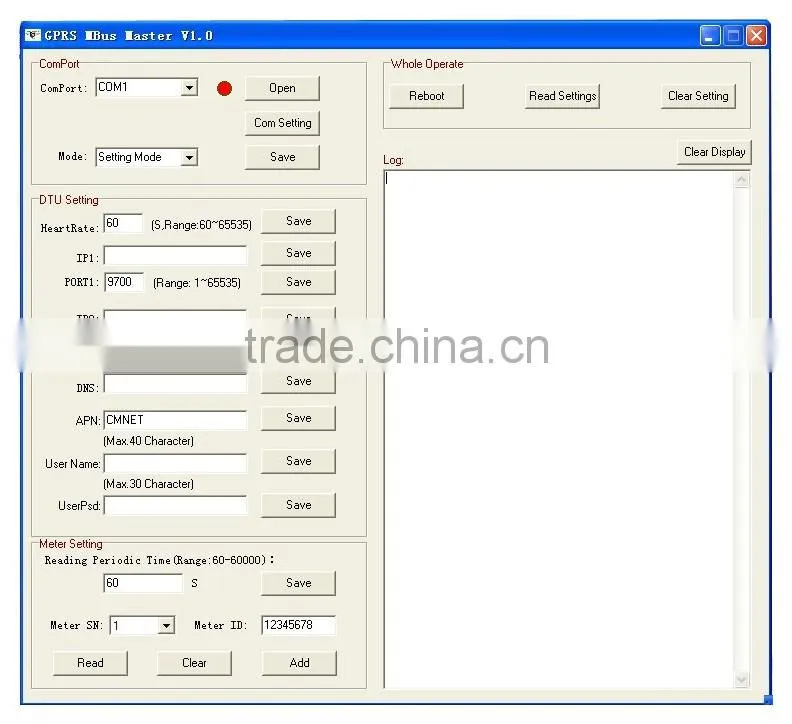

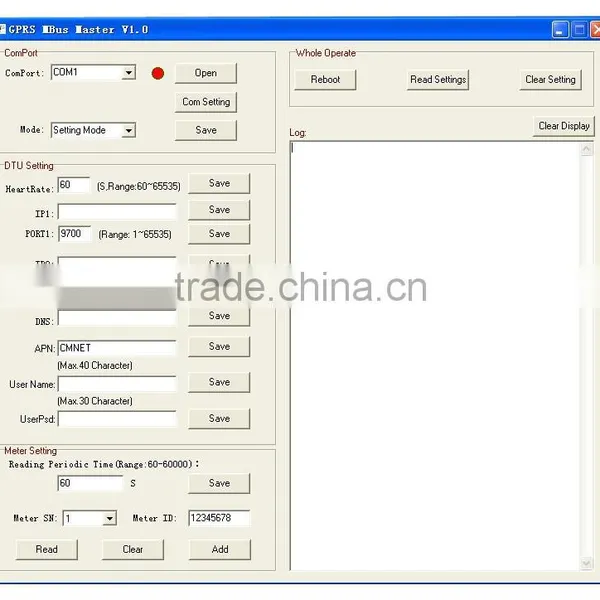

The user can remotely setup the GPRS M-Bus Master parameters via GPRS. The GPRS M-Bus Master will periodically automatic reading the meters, and upload the meters’ value to monitoring center transparently. The data format that uploading by GPRS is the same as the meters data format. It is convenient for users to maintain its present monitoring center.
Moreover, it equips RS232 port, this user can local read the meters by RS232 or use RS232 for debug.
Ø GPRS Data Transmission, real-time online data transfer, no distance limitation;
Ø Embedded ARM®Cortex®-M3 32-bit RISC MCU with real-timeμC/OS-II RTOS;
ØEmbedded complete PPP, TCP/IP protocol stack;
Ø Supports European standard M-Bus (Meter Bus) interface for intelligent meters;
Ø Supports EN 1434-2008 protocol (Intelligent meter communication protocol) over GPRS network communication for up to 60 /120/240/360 meters;
Ø Supports transparent and non-transparent data transfer via RS232 or GPRS network;
Ø Supports point-to-point, Point–to–Multipoint, Multipoint-to-Multipoint Communication Mode;
Ø Supports up to 3 DNS and static data service center IP address;
Ø “Plug and Play” solution can realize data transmission between com port and internet;
Ø Supports RS232 three-wire standard serial port, rate speed up to 115200 BPS;
Ø Built-in hardware Watch Dog Timer to ensure it reliable and stable;
Ø Supports remotely program the GRPS M-Bus Master from server via TCP/IP;
Ø Adopts application layer heartbeat technology to keep application layer stable connection;
Ø Running Stability: 365 x 24 hours;
Ø Industrial class design suitable for long time work applications.
Specifications of the GPRS M-BUS MASTER:
| ||||||||||||||||||||||||||||||||||
Standard Package list of the GPRS M-BUS MASTER:
Mainframe X1
AC/DC AdaptorX1
GSM Antenna X1
User Manual X1
PC ConfiguratorX1
1. How to make sure the quality?
- Process Quality Control
- Final Quality Control
- Outgoing Quality Control
2. How to get the order?
- First,Tell us the model and quantity of the products you want.
- Second ,we will make a PI for you.
- Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
- Fourth, we will send you the goods within the promissory time.
3. How about the Shipping?
- The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost. (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)
- Reference Shipment Cost
For example, ship to Denmark from China.
Weight(Kg) | Shipment Cost | Average Cost for per Kg |
0.5Kg | 22.32USD |
|
1Kg | 28.27USD | 28.27USD |
16Kg | 206.83USD | 12.93USD |
21Kg | 147.13USD | 7.00USD |
31Kg | 210.00USD | 6.77USD |
51Kg | 316.00USD | 6.20USD |
101Kg | 590.00USD | 5.84USD |
201Kg | 1145.70USD | 5.70USD |
- Our recommends:
For samples, ship by Express, usually 3-5days.
While place small order, try to make the finial weight more than 21Kg.
If the order weight less than 100Kg, recommend to ship them by Express.
If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;
If the weight is above 200kgs, recommend to ship them by air cargo or by sea.
- For small order by express, 20-30 pcs per order is the best.
4. What's the delivery time?
- Sample within 1-3days;
- Wholesales 4-7days according different quantities;
- OEM 7-14 days after all info confirmed.
- ODM depends on the detail requirements.
5. What is the warranty of your company?
- 2~3 years warranty for the main unit; one year warranty for the accessories.
- Please send back the defective goods within the warranty period, we will repair them or send you new free.
- Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.
6. Can you do the design for us?
Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
Why KING PIGEON?
King Pigeon is a professional GSM/GPRS/3G wireless Alarm System, GSM elderly alarm,SMS Controller, Industrial Remote Controller, RTU Data Logger, Telemetry, Temperature Measurement Logger, Power Monitoring, M2M products Designer & Manufacturer in China since 2005.
Welcome OEM/ODM Service
Put Your LOGO on Unit and Package Available!
