Specifications
1) 27 Years Professional Manufacturer2) Public Company in 2010
3) Prodution is around 40,000 Kms
4) Complete quality test

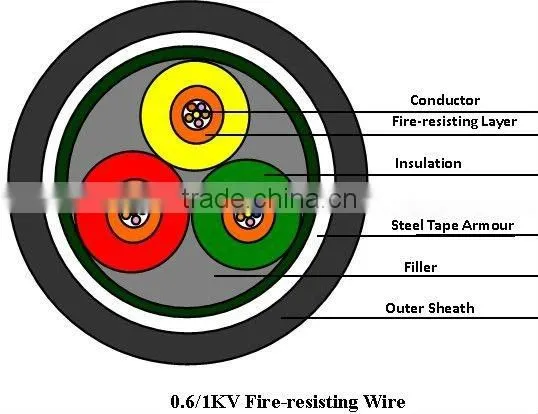

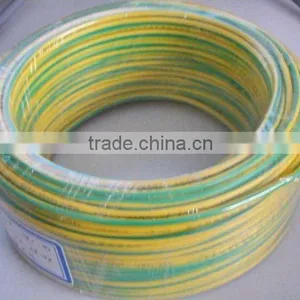

Flexible Low-voltage Electrical Cable
2.Characteristics:
2.1 Rated voltage U0/U : 0.6/1kV
2.2 Maximum conductor temperature is 90°C
2.3 Short circuit temperature (lasting for less than 5s):less than 250 °C
2.4 Ambient installation temperature shall be not lower than 0°C; minimum bending radius: for single-core cable,20(D+d)(mm), for multi-core cable, 15(D+d)(mm)(D=cable outside diameter, d= nominal diameter of main conductor).
2.5 Cable can be laid aerially, in trough, or underground
Model Type Specification:
Model Type Specification of YD/T1173-2001 standard
1.Cu conductor Low-smoke zero-halogen polyolefin insulated category A flame-retardant flexible cable
2.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed category a flame-retardant flexible cable
3.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored Category a flame--retardant flexible cable
4.Cu conductor Low-smoke zero-halogen polyolefin Insulated category A fire-resistant flexible cable
5.Cu conductor Low-smoke zero-halogen p0Iyolefln insulated and sheathed category A fire-resistant flexible cable
6.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category a fl re--resistant flexible cable
Excellent Characteristics:
Low-smoke zero-halogen characters complying with the requirement of GB/T17650-1998 and GB/T17651-1998
(1)conductivity≤ 10&mμ S/mm (2)pH≥ 4.3
(3)Smoking density penetration ratio≥ 60%
Low--smoke zero-halogen flame-retardant flexible cable
Flame-retardant properties of the cable can comply with the requirements specified in GB/T 18380.3-2001(IEC60332-3-22: 2000)for category A
Low--smoke zero--halogen fire--resistant flexible cable
Fire-resistant properties of the cable can comply with the requirements specified in GB/T 12666.
Correction factors of ampacity in air at different temperature
| Ambient Temperature | 20 | 25 | 30 | 35 | 40 | 45 |
| Correction factors | 1.29 | 1.22 | 1.15 | 1.08 | 1.00 | 0.91 |
Specification
227 IEC01(BV),BV,BLV |
Copper(aluminum) core PVC insulated cable(wire) |
BVV,BLVV |
Copper(aluminum) core PVC insulated and sheathed power cable |
277 IEC02(RV),BV |
Copper core PVC insulated flexible cable(wire) |
227 IEC05(BV),BV |
Copper core PVC insulated cable |
227 IEC06(RV) |
Copper core PVC insulated flexible cable |
227 IEC07(BV-90) |
Copper core PVC insulated heat-resisting (90°C) cable |
227 IEC08(RV-90) |
Copper core PVC insulated heat-resisting (90°C) interconnecting flexible cable |
227 IEC10(BVV),BVV |
Copper core PVC insulated and sheathed round cable |
227 IEC42(RVB),RVB |
Copper core PVC insulated flat interconnecting flexible cable |
|
227IEC52(RVV) or 227IEC53(RVV) |
Copper core PVC insulated and sheathed round interconnecting flexible cable |
BVR |
Copper core PVC insulated flexible cable |
RVS |
Copper core PVC insulated and stranded interconnecting flexible cable |
RVVB |
Copper core PVC insulated and sheathed flat interconnecting flexible cable |
AV |
Copper core PVC insulated installing cable |
AVR |
Copper core PVC insulated flexible installing cable |
AVP |
Copper core PVC insulated and screened installing wire |
RVVP |
Copper core PVC insulated and sheathed screened flexible wire |
ZA-BVR-105 |
Copper core flame-retardant (105°C) PVC insulated flexible cable |
ZA-RV-105 |
Copper core flame-retardant (105°C) PVC insulated wire |
RVV,ZA-RVV300/500V |
Copper core PVC-insulated and sheathed (flame-retardant) flexible wire |
227 IEC10(BVV),BVV |
Copper core PVC insulated and sheathed round cable |
227 IEC42(RVB),RVB |
Copper core PVC insulated flat interconnecting flexible cable |
|
227IEC52(RVV) or 227IEC53(RVV) |
Copper core PVC insulated and sheathed round interconnecting flexible cable |
BVR |
Copper core PVC insulated flexible cable |
RVS |
Copper core PVC insulated and stranded interconnecting flexible cable |
RVVB |
Copper core PVC insulated and sheathed flat interconnecting flexible cable |
AV |
Copper core PVC insulated installing cable |
AVR |
Copper core PVC insulated flexible installing cable |
AVP |
Copper core PVC insulated and screened installing wire |
RVVP |
Copper core PVC insulated and sheathed screened flexible wire |
ZA-BVR-105 |
Copper core flame-retardant (105°C) PVC insulated flexible cable |
ZA-RV-105 |
Copper core flame-retardant (105°C) PVC insulated wire |
RVV,ZA-RVV300/500V |
Copper core PVC-insulated and sheathed (flame-retardant) flexible wire |

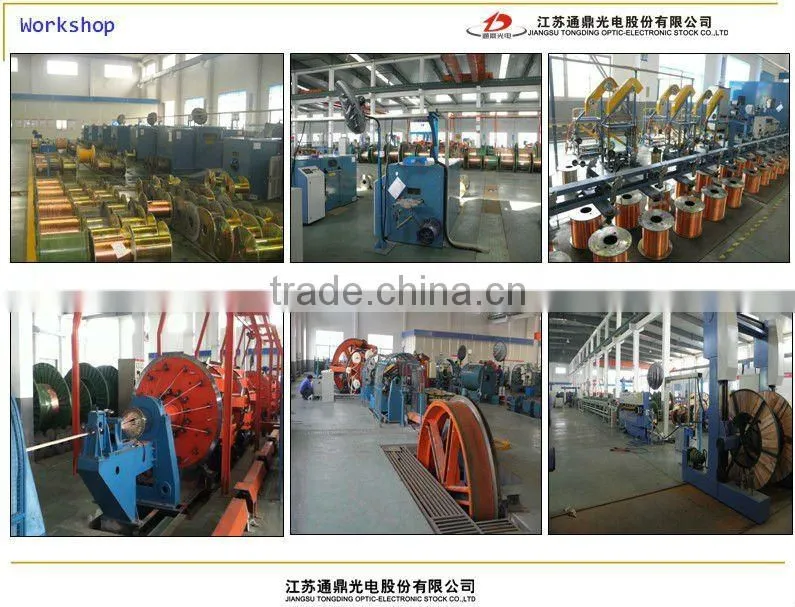

Quality Managements

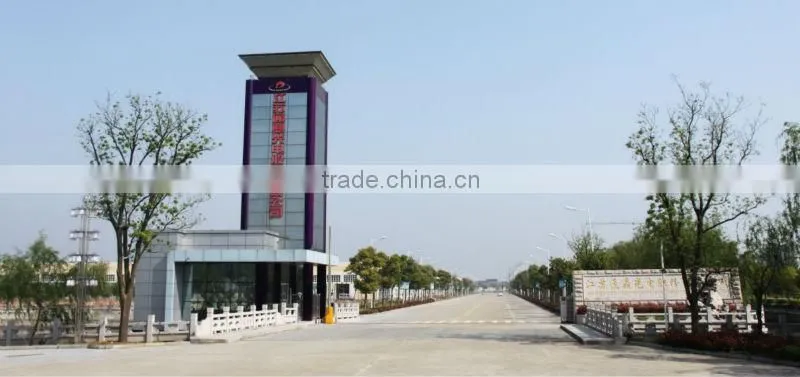

Company Profile
Jiangsu Tongding Optic-Electronic Stock Co.,Ltd. (Public Company)
The pursuit of providing high-quality product and service never stops.
