Specifications
1) 27 Years Professional Manufacturer2) Public Company in 2010
3) Prodution is around 40,000 Kms
4) Complete quality test

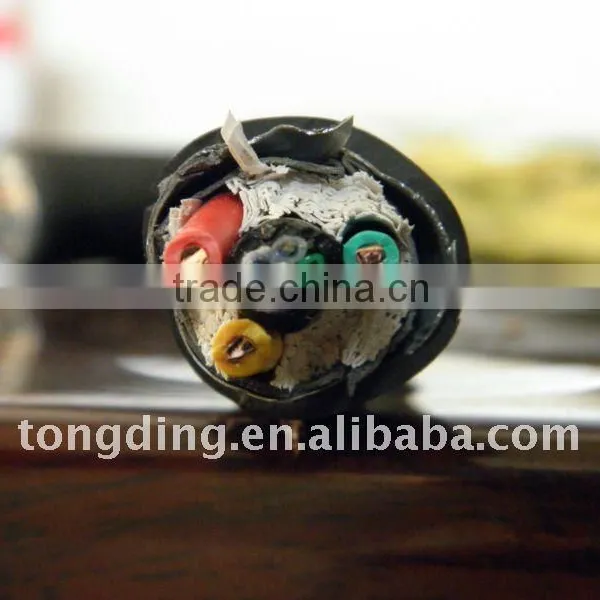

Optical Fiber Composite Low-voltage Cable/Optical Fiber Power Composited Cable (OPLC)
Rated Voltage:
U0/U:0.6/1(1.2) KV
Product Description:
1.Combines optical fiber and DC power for RRHs(Remote Radio Head) in a single
lightweight aluminum corrugated cable,making it the world's most innovative
solution for RHH developments.
2.It was developed to reduce installation complexity and cost ar Cellular sites.
3.Allows mobile operators deploying and RHH architecture to matched RHH
installation process and eliminates the need for and the cost of cabling grounding.
4.Eliminates the need for junction boxes and connect up to 3 sectors with a single
feeder.
Features:
1.A corrugated armor with excellent bending characteristics minimizes installation
time and enables mechanical protection and EMC shielding.
2.Outer conductor grounding eliminates typical additional grounding requirement
and saves on installation costs
3.lightweight solution and compact design decreases tower loads.
4.Robust cabling eliminates need for expensive cable trays and conduits.
5.Installation of stripped fiber optic cable pairs directly to RRH reduces CAPEX and
wind load by
eliminating need for junction boxes.
6.F/O and DC housed in single corrugated cable saves CAPEX by matching RRH cable
installation and reducing installation equipments.
Characteristic of Optical Cable
Tensile strength (N) | Crush Resistance (N/100mm) | The Min. Bending Radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | Static |
600 | 1500 | 1000 | 3000 | 10D | 20D |
Main mechanical & environmental characteristics test
NO | ITEM | TEST METHOD | ACCEPTANCE REQUIREMENTS |
1 | Tensile Strength IEC 794-1-E1
| - Load: 6000 N - Length of cable under load: 50m - Load time: 5 min. | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
2 | Crush Test IEC 60794-1-E3
| - Load: 1, 000 N/100mm - Load time: ≥1min | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
3 | Impact Test IEC 60794-1-E4
| - Points of impact: 5 - Times of per point: 5 - Impact energy: 4.5Nm - Radius of hammer head: 12.5mm - Impact rate: 2sec/cycle | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
4 | Repeated Bending IEC 60794-1-E6
| - Bending Dia.: 20 x OD - Load: 150N - Flexing rate: 3sec/cycle - No. of cycle: 30 | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
5 | Torsion IEC 60794-1-E7
| - Length: 1m - Load: 150N - Twist rate: 1min/cycle - Twist angle: ±180° - No. of cycle: 10 | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
Characteristics of Power Cable
Average Thickness of Insulation | PVC | ≥0.8 |
XLPE/PE | ≥0.7 | |
The Thinnest Thickness of Insulation | PVC | ≥0.62 |
XLPE/ PE | ≥0.53 | |
Max.Temperature of Conductor | 70°C | |
Conductor Resistance 20°C (Ω/km) | Single Wire | ≤7.41 |
Multi Wires | ≤7.98 | |
Dielectric Strength (2000V/ 5min) | No Breakdown | |

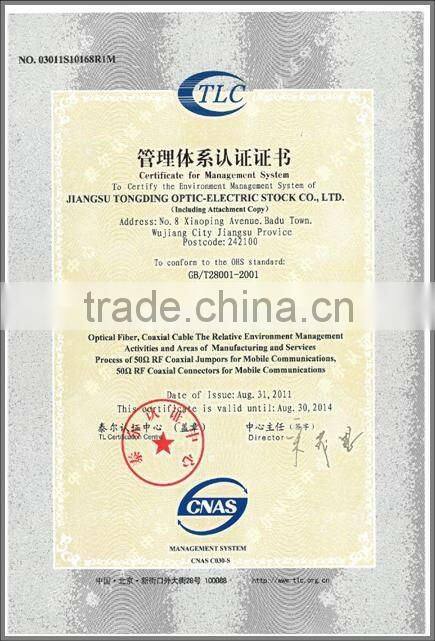

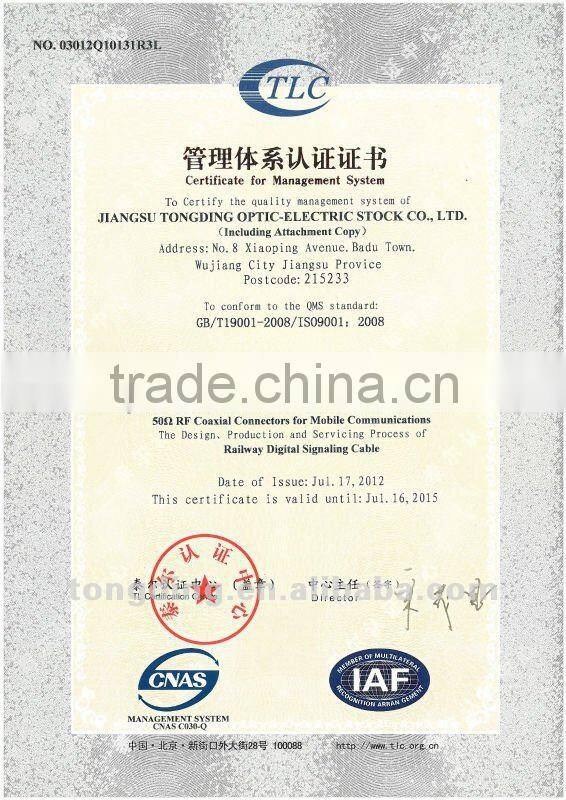

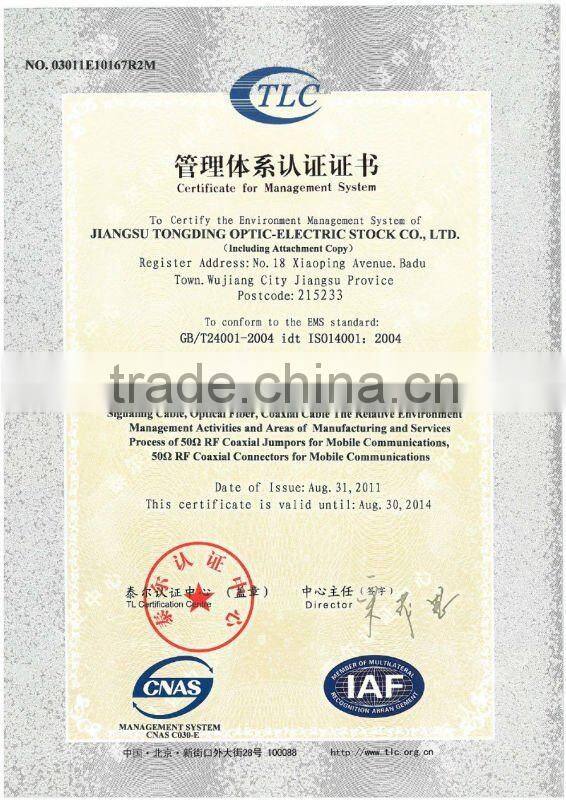

Certificates
The latest equipments,professional teamwork and the best quality management system make us
believe we are able to realize our dream.Now we invite you join us to get more benefits,
and witness the next wonderful decades together.
Quality Managements

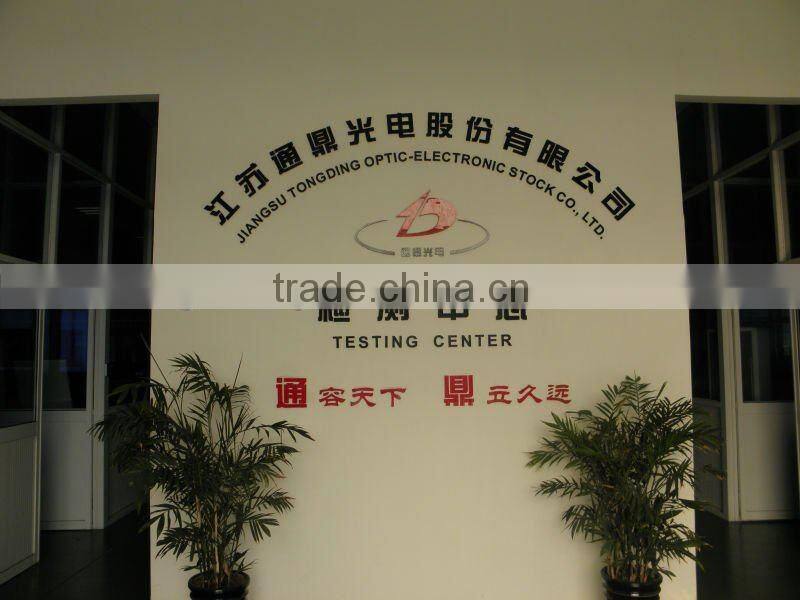

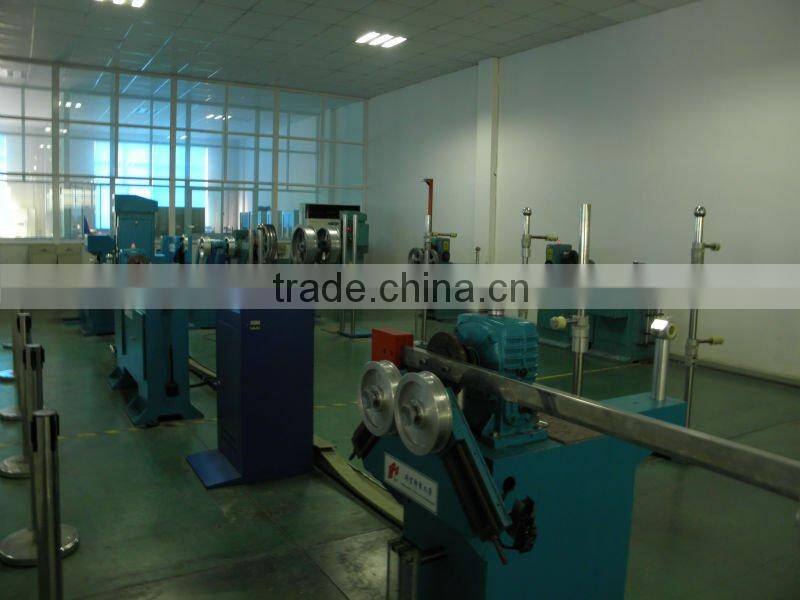

Company Profile
Jiangsu Tongding Optic-Electronic Stock Co.,Ltd. (Public Company)
The pursuit of providing high-quality product and service never stops.
