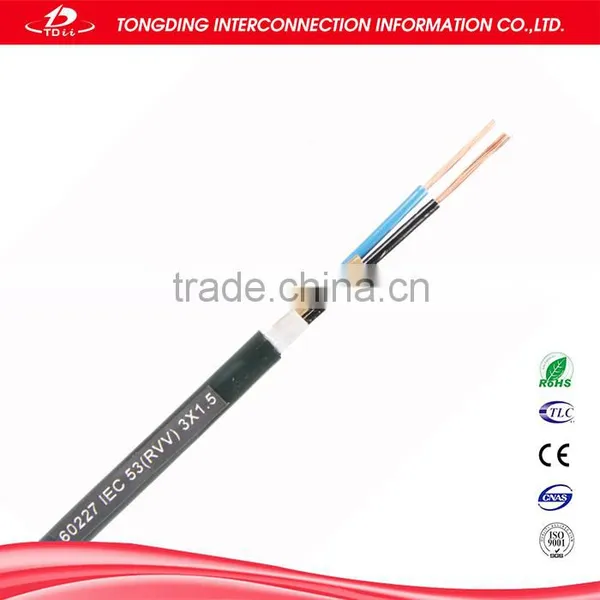

Flexible Electrical Cable with PVC or XLPE Insulation
Application:
This product is mainly designed for power equipment,instrument and telecommunication device with rated AC voltage of 450/750V and below.
Standards Applied:
GB5023,JB8734,GA306,GB/T18380,IEC60332.3,GB/T19666
2.Characteristics:
2.1 Rated voltage U0/U : 0.6/1kV.
2.2 Maximum conductor temperature is 90°C.
2.3 Short circuit temperature (lasting for less than 5s):less than 250 °C
2.4 Ambient installation temperature shall be not lower than 0°C; minimum bending radius: for single-core cable,20(D+d)(mm), for multi-core cable, 15(D+d)(mm)(D=cable outside diameter, d= nominal diameter of main conductor).
2.5 Cable can be laid aerially, in trough, or underground
Model Type Specification:
Model Type Specification of YD/T1173-2001 standard
1.Cu conductor Low-smoke zero-halogen polyolefin insulated category A flame-retardant flexible cable
2.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed category a flame-retardant flexible cable
3.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored Category a flame--retardant flexible cable
4.Cu conductor Low-smoke zero-halogen polyolefin Insulated category A fire-resistant flexible cable
5.Cu conductor Low-smoke zero-halogen p0Iyolefln insulated and sheathed category A fire-resistant flexible cable
6.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category a fl re--resistant flexible cable
Excellent Characteristics:
Low-smoke zero-halogen characters complying with the requirement of GB/T17650-1998 and GB/T17651-1998
(1)conductivity≤ 10&mμ S/mm (2)pH≥ 4.3
(3)Smoking density penetration ratio≥ 60%
Low--smoke zero-halogen flame-retardant flexible cable
Flame-retardant properties of the cable can comply with the requirements specified in GB/T 18380.3-2001(IEC60332-3-22: 2000)for category A
Low--smoke zero--halogen fire--resistant flexible cable
Fire-resistant properties of the cable can comply with the requirements specified in GB/T 12666.
Specification:
227 IEC01(BV),BV,BLV |
Copper(aluminum) core PVC insulated cable(wire) |
BVV,BLVV |
Copper(aluminum) core PVC insulated and sheathed power cable |
277 IEC02(RV),BV |
Copper core PVC insulated flexible cable(wire) |
227 IEC05(BV),BV |
Copper core PVC insulated cable |
227 IEC06(RV) |
Copper core PVC insulated flexible cable |
227 IEC07(BV-90) |
Copper core PVC insulated heat-resisting (90°C) cable |
227 IEC08(RV-90) |
Copper core PVC insulated heat-resisting (90°C) interconnecting flexible cable |
227 IEC10(BVV),BVV |
Copper core PVC insulated and sheathed round cable |
227 IEC42(RVB),RVB |
Copper core PVC insulated flat interconnecting flexible cable |
|
227IEC52(RVV) or 227IEC53(RVV) |
Copper core PVC insulated and sheathed round interconnecting flexible cable |
BVR |
Copper core PVC insulated flexible cable |
RVS |
Copper core PVC insulated and stranded interconnecting flexible cable |
RVVB |
Copper core PVC insulated and sheathed flat interconnecting flexible cable |
RVVP |
Copper core PVC insulated and sheathed screened flexible wire |
ZA-BVR-105 |
Copper core flame-retardant (105°C) PVC insulated flexible cable |
ZA-RV-105 |
Copper core flame-retardant (105°C) PVC insulated wire |
RVV,ZA-RVV300/500V |
Copper core PVC-insulated and sheathed (flame-retardant) flexible wire |
Notes:
1.For flame retardant power cable, add “ZA”("ZB" or “ZC”)before the model of common power cable.
2.For fire-resisting power cable, add “N-" before the model of common power cable.
3.For low halogen, low smoke and flame retardant power cable, add “DDZ” before the model of common power cable.
|
Core Number |
Colour |
||
Main Core |
The fourth and fifth core |
||
1 |
Any(Black first) |
|
|
2 |
Red,Light blue |
|
|
3 |
Red,Yellow,Green |
|
|
4,3+1 |
Red,Yellow,Green |
Light blue |
|
4+1,3+2 |
Red,Yellow,Green |
Light blue |
Black |
1.How to confirm that our factory is a reliable supplier?
RE: Tongding Interconnection Information Co.,Ltd is top 3 of communications industry in China. You can search our company's information on Baidu or Google.We are the Assessed Supplier of . Alibaba as the third party verifies our factory and company to confirm that we are a real and reliable supplier.
2.Does our company support factory inspection?
RE: Of course,we do.The company covers an area of 1000,000 square meter.There are 4000~5000 workers in our factory now.We have 6 production division and 1 testing centre.Besides that, we also own fiber optic business unit and 40 wire drawing towers.Welcome to inspect factory anytime and anywhere.
3.Do you provide free samples?
RE: Yes.We provide free samples below 10 meters.
4.How to ensure the products are qualified in your factory?
RE: We control the quality strictly and inspect every working procedure of semi-finished products.We strictly control the proportion of unqualified products,so as to guarantee the quality of the final products.
5.Can we become a distributor to sale your products?
RE: Yes,of course.Anyone is welcome to become our distributor.And we will give you the corresponding preferential policies.
