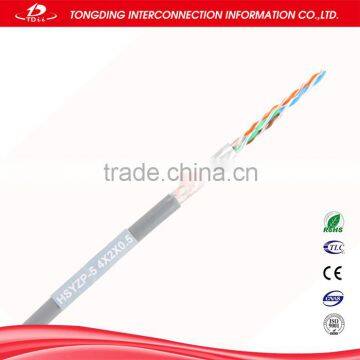

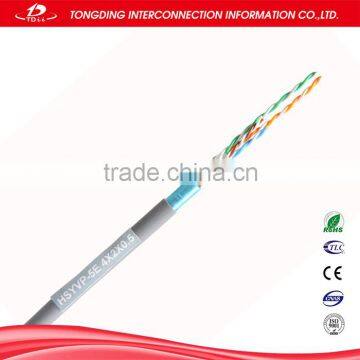

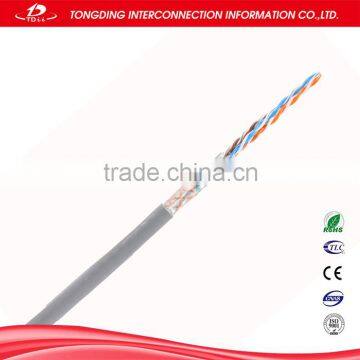

4 Pairs FTP Data Communication cable cat5e network cable
Conductor:
Material: solid bare copper
Number of pairs: 4 pairs
AWG: 23AWG
Conductor diameter: 0.57 ±0.003mm
Insulation:
Material: HDPE and FRPE
Diameter: 1.02 ±0.005mm
Average thickness: 0.225mm
Minimum point thickness: 0.2245mm
First screen: Aluminum Foil (superposition rate: 25%)
Overall screen: 48/0.1mm TC braid shield (braid density: 40%)
Jacket rid cord: optional
Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.545mm
Includes:
Polyester Wrapping
Drain Wire
Aluminum-plastic Laminated Screen
Jacket:PVC / PE /LSOH
Standard:
YD/T1019-2001, TIA/EIA-568B, ISO/IEC61156
Application :
Horizontal cabling in working area.Used in voice system,ISDN,
ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
Characteristic of Network Cable:
|
Frequency Mhz |
Impedance Ohm |
RL dB |
Attenuation dB/100M |
Next dB/100M |
ELFEXT dB/100M |
PS NEXT dB/100M |
PS Elfext dB/100M |
1 |
100±15 |
20 |
2.0 |
65.3 |
63.8 |
62.3 |
60.8 |
4 |
100±15 |
23 |
4.1 |
56.3 |
51.7 |
53.3 |
48.7 |
8 |
100±15 |
25 |
5.8 |
51.8 |
45.7 |
53.3 |
42.7 |
10 |
100±15 |
25 |
6.5 |
50.3 |
43.8 |
47.3 |
40.8 |
16 |
100±15 |
25 |
8.2 |
47.3 |
39.7 |
44.2 |
36.7 |
20 |
100±15 |
25 |
9.3 |
48.5 |
37.7 |
42.8 |
34.7 |
25 |
100±15 |
24 |
10.4 |
44.3 |
35.8 |
41.3 |
32.8 |
31.25 |
100±15 |
24 |
11.6 |
42.9 |
33.9 |
39.9 |
30.9 |
62.5 |
100±15 |
22 |
17.0 |
38.4 |
27.8 |
35.4 |
24.8 |
100 |
100±15 |
20 |
22.0 |
35.3 |
23.8 |
32.3 |
20.8 |
155 |
100±18 |
19 |
28.1 |
33.0 |
20.0 |
29.0 |
17.0 |
200 |
100±22 |
19 |
32.4 |
31.0 |
18.0 |
28.0 |
15.0 |
310 |
100±22 |
18 |
41.8 |
28.0 |
14.0 |
25.0 |
11.0 |
350 |
100±22 |
17 |
44.9 |
27.0 |
13.0 |
24.0 |
10.0 |
1.How to confirm that our factory is a reliable supplier?
RE: Tongding Interconnection Information Co.,Ltd is top 3 of communications industry in China. You can search our company's information on Baidu or Google.We are the Assessed Supplier of . Alibaba as the third party verifies our factory and company to confirm that we are a real and reliable supplier.
2.Does our company support factory inspection?
RE: Of course,we do.The company covers an area of 1000,000 square meter.There are 4000~5000 workers in our factory now.We have 6 production division and 1 testing centre.Besides that, we also own fiber optic business unit and 40 wire drawing towers.Welcome to inspect factory anytime and anywhere.
3.Do you provide free samples?
RE: Yes.We provide free samples below 10 meters.
4.How to ensure the products are qualified in your factory?
RE: We control the quality strictly and inspect every working procedure of semi-finished products.We strictly control the proportion of unqualified products,so as to guarantee the quality of the final products.
5.Can we become a distributor to sale your products?
RE: Yes,of course.Anyone is welcome to become our distributor.And we will give you the corresponding preferential policies.
