GYXTC8S Self-supporting Aerial Optical Cable
Technical Characteristics
♦ Fiber count: 2~96
♦ Low loss, low dispersion
♦ Proper design and precise excess length control and cabling process offers cable superior mechanical and environmental properties
♦ Steel wire armor and steel tape armor enhance the cable's anti-bending and side pressure resisting capability, and prevent it from gun and redent
♦ Small size, light weight, self-supporting
Performance
♦ Applicable to long distance, inter-exchange communication, CATV, computer network transmission system, etc.
♦ Minimum bend radius: static 10D, Dynamic 20D
♦ Operation temperature: -40 ~ +70
2. Cable Specification

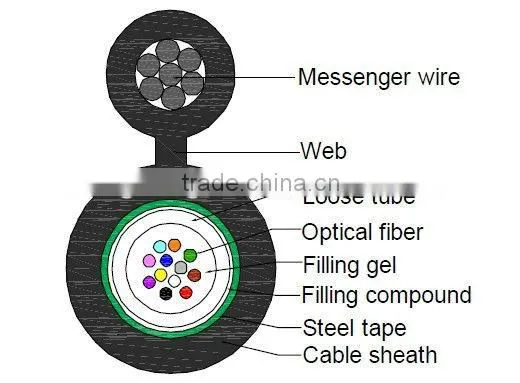

2.1 Cable cross-section
2.2 Fiber color code
No. |
1 |
2 |
3 |
4 |
5 |
6 |
Color |
Blue |
White |
Yellow |
Green |
Gray |
Red |
No. |
7 |
8 |
9 |
10 |
11 |
12 |
Color |
Orange |
Black |
Pink |
Violet |
Brown |
Aqua |
3. Fiber Properties
3.1 The properties of single mode optical fiber (ITU-T Rec. G.652D or G657A)
4. Characteristic of Optical Cable
4.1 Cable bending radius:
10 x cable diameter (during operation)
20 x cable diameter (during installation)
4.2 Temperature range
Operating temperature range |
-40oC to +60oC |
Storage / Transport temperature range |
-50oC to +70oC |
Installation temperature range |
-20oC to +50oC |
4.3 Cable structure and parameter
|
Fiber number |
Tube Diameter |
Messenger strand steel wire diameter |
Sheath thickness (nominal*) |
Diameter W*H (Nominal*) |
Weight (Approx.) |
mm |
mm |
mm |
mm |
kg/km |
|
12 |
3.0 |
3.0 (1.0mm*7) |
1.5 |
7.3*14.3 |
116 |
24 |
3.6 |
3.0 (1.0mm*7) |
1.5 |
7.9*14.9 |
125 |
4.4 Main mechanical & environmental characteristics test
1 |
Tensile Strength |
As per IEC 794-1-E1 |
2 |
Crush Test |
As per IEC 60794-1-E3 |
3 |
Impact Test |
As pe IEC 60794-1-E4 |
4 |
Repeated Bending |
As pe IEC 60794-1-E6. |
5 |
Torsion |
As pe IEC 60794-1-E7 |
6 |
Water Penetration |
As pe IEC 60794-1-F5B |
7 |
Temperature Cycling |
As pe IEC 60794-1-F1 |
8 |
Compound Flow |
As pe IEC 60794-1-E14 |
9 |
Sheath High Voltage Test |
- No sheath breakdown @ 9t KV |

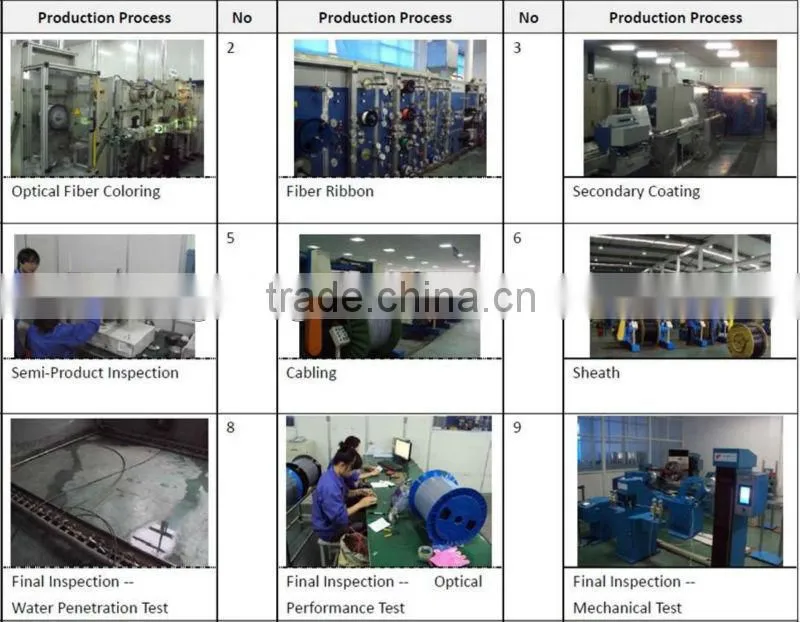

5. Production Flow

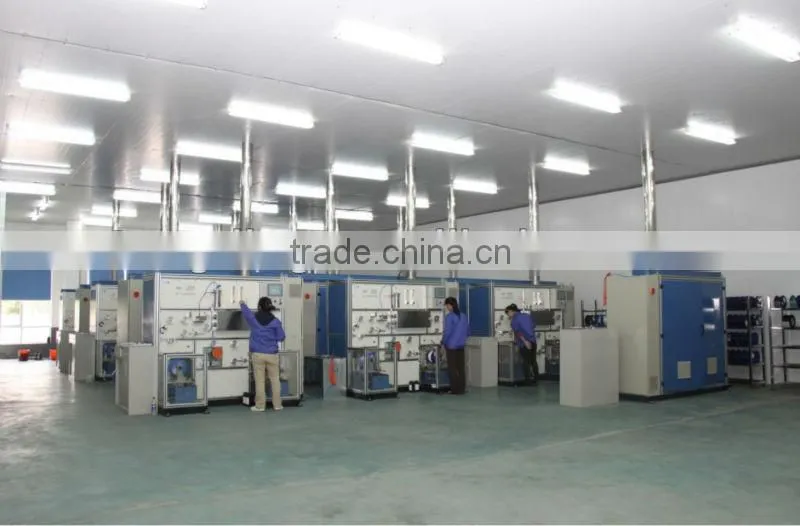

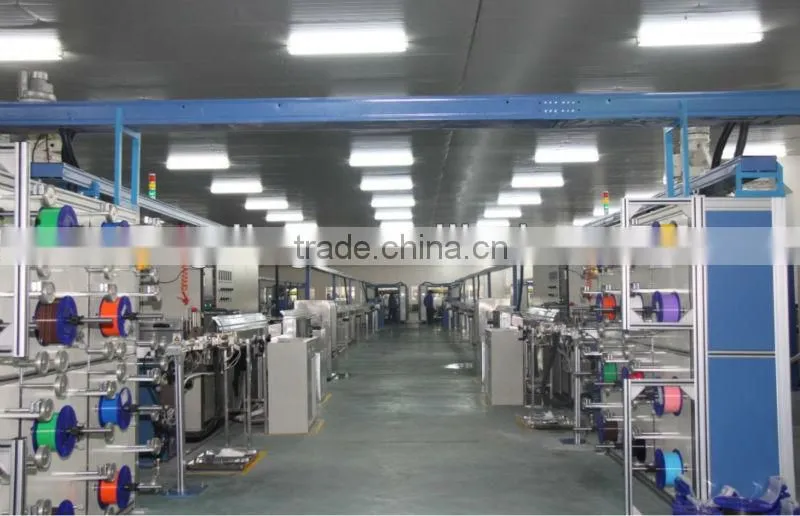

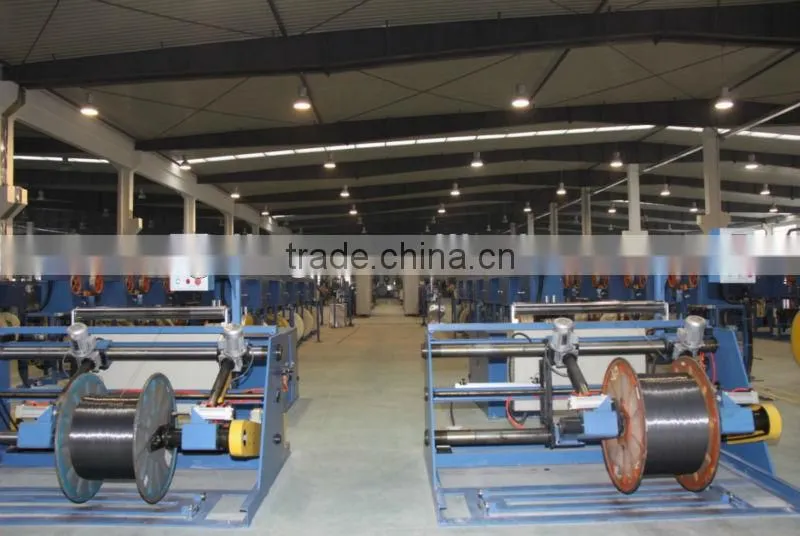

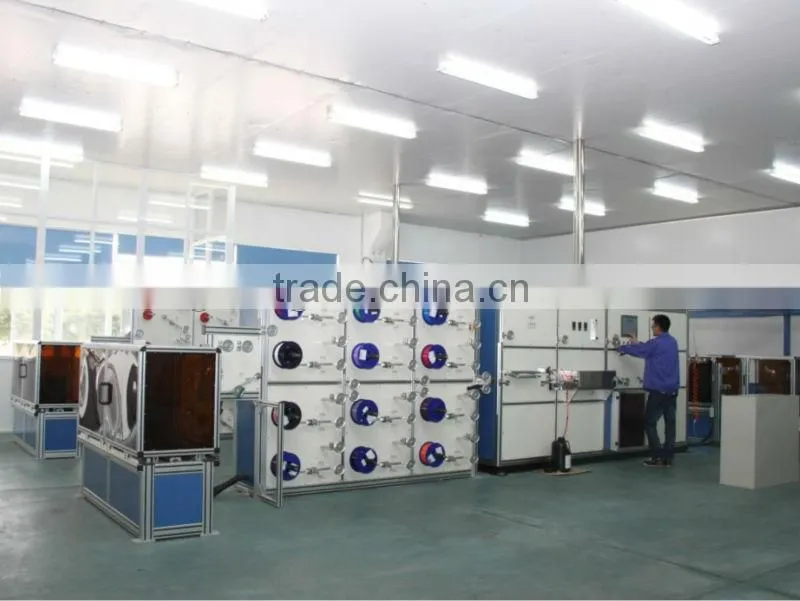

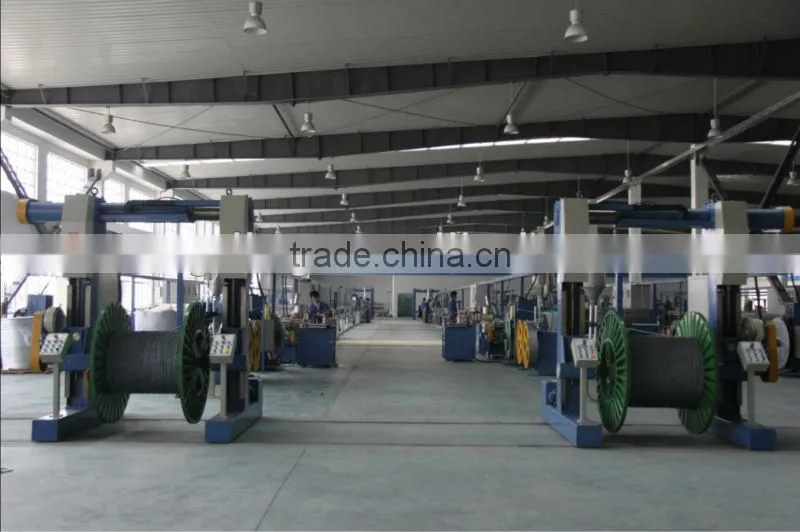

6. Workshop

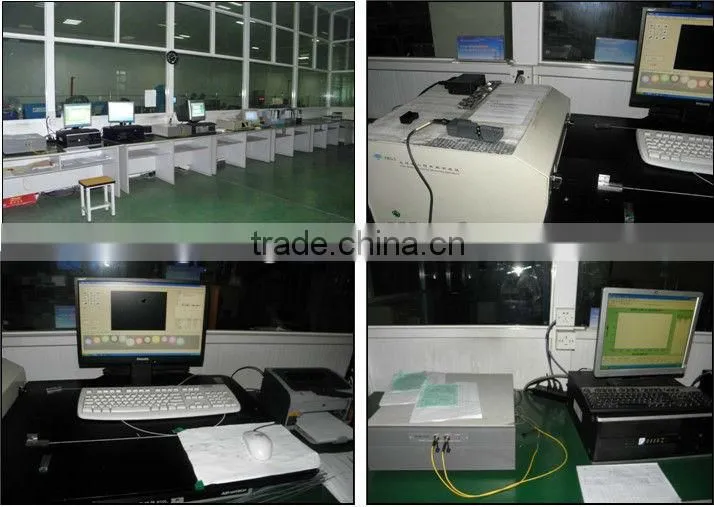

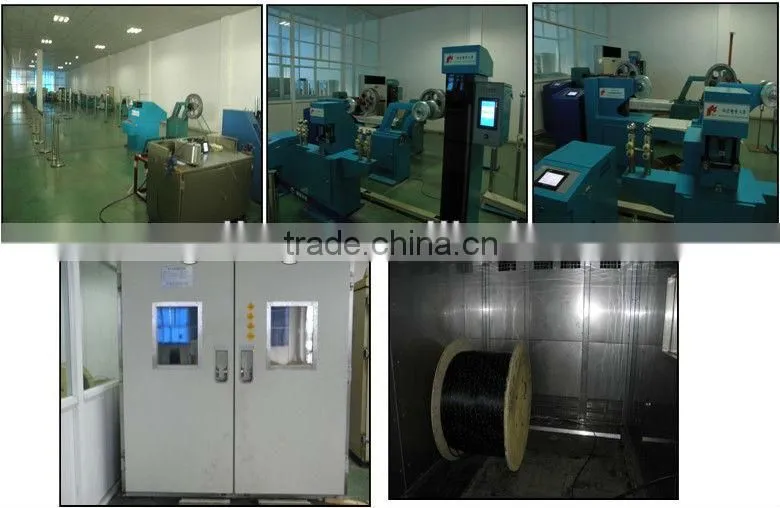

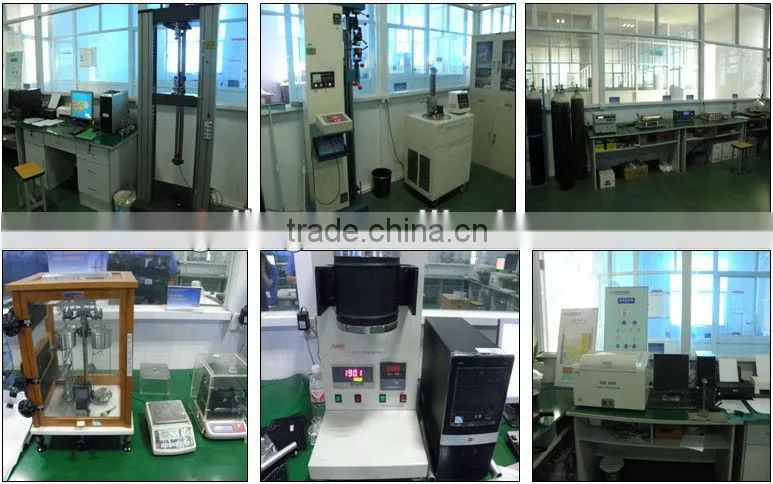

7. Quality Management
8. Certificate
