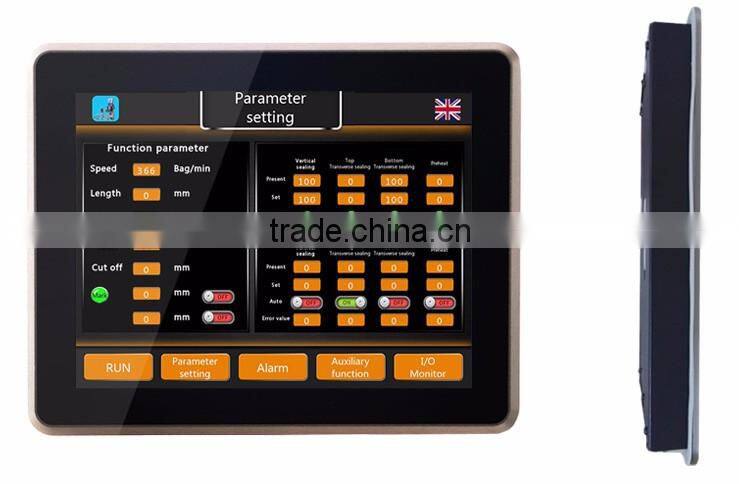

RS232 led resistive tft lcd cheap hmi touch control panel display
| Technical Data and All Size of metal touch control panel display | |||||
| Item | MC4070M | MC4097X | MC4150X |
||
| Bottom Software | Linux | ||||
| Compatible PC OS of Programming Software | Win7/ Win10/ WinXP | ||||
| CPU | Cortex-A8 600MHz | ||||
| Touch Screen | 4 wire resistive touch screen | ||||
| Display | Screen Size | 7" TFT LCD | 9.7" 4:3 TFT LCD, wide view | 15" TFT LCD | |
| Resolution | 800x480 | 1024x768 | |||
| Colors | 24 bit | 16 bit | 24 bit | ||
| Brightness | 300 cd/m2 | 420 cd/m2 | 400 cd/m2 | ||
| Backlight | LED | ||||
| LED life | 50,000 hours | ||||
| Storage | Flash | 128M | |||
| RAM | 128M | ||||
| SD Card | supporting | ||||

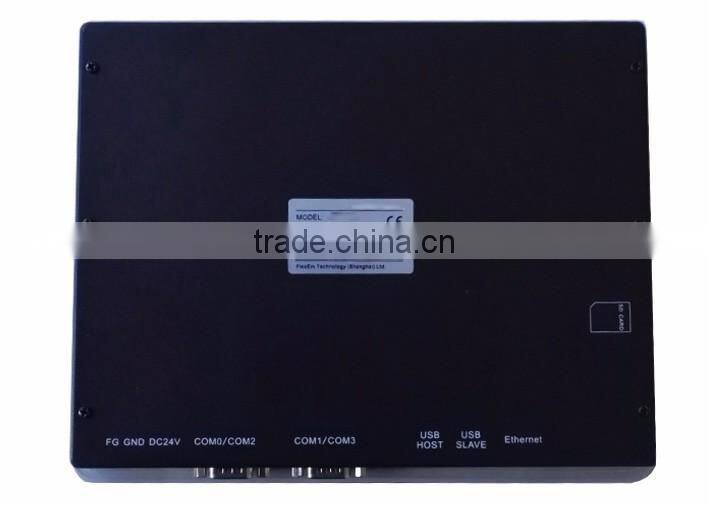

| Ports | USB Port | USB Host: USB 2.0 x 1;USB Client: USB 2.0 x 1 | |||
| Serial Port | COM1: RS232/RS485/RS422 | COM1/COM2: RS232/RS485/RS422 | |||
COM3: RS232 |
COM3/COM4: RS232 | ||||
| Download Project | USB Disk/ USB Device/ Ethernet | ||||
| Power | Power Supply |
DC24V, input range: DC18~28v |
|||
| Power | <10w | <15w | |||
| power isolation | isolated power supply, protect from surging and thunderstrike | ||||
| Power Down Allowed | <5ms |
||||
| Seismic resistance | 10 ~ 25 Hz (X, Y, Z 2G/30 min) | ||||
| Dimensions | Shell | aluminum front panel with hard oxide treatment, steel back cover with baking finish treatment | |||
| Dimension/mm | 200.1x146x40 | 245x190x31 | 394x297x48.3 | ||
| Mounting Size/mm | 192x138 | 233x180 | |||
| Weight/kg | 0.8 | 1.1 | 3.85 | 2.5 | |
| Environment | Protection | front IP 65(with NEMA panel), back IP20 | |||
| Temperature | Storage: -30℃~80℃; Working: -20℃~70℃ | ||||
| Humidity | 10 ~ 90%RH | ||||
| CE Certification | EN61000-6-2:2005, EN61000-6- 4:2007, CE, RoHs | ||||
| RoHs | applied, surge immunity: ±4KV, EFT: ±4KV, ESD: 4KV, Air: 8KV | ||||
| Programming Software | above Mochuan Studio V1.0 | ||||

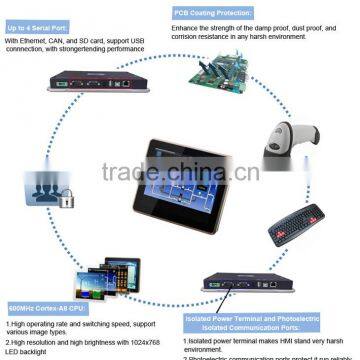

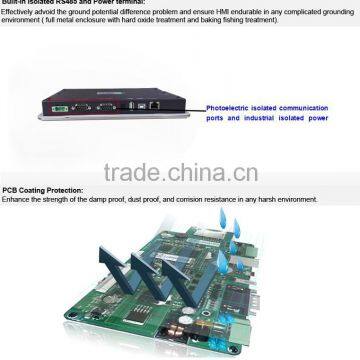

Built-in Isolated RS485 and Power Terminal:
Effectively advoid ground potentialndifference problem and ensure HMI endurable in complicated grounding environment( full metal enclosure with hard oxide treatment and braking fishing treatment)

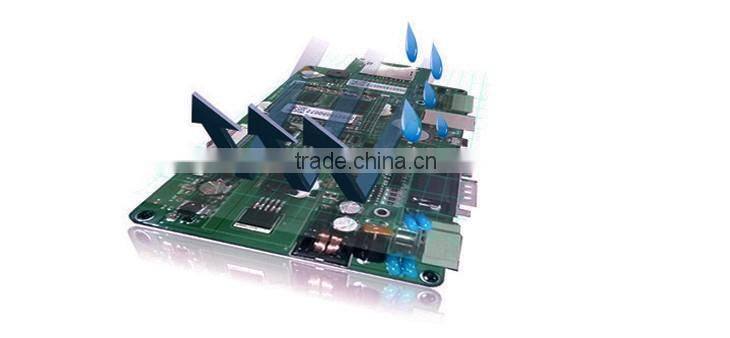

PCB Coating Protection: Enhance the strength of damp proof, dust prrof, corrision resistance in harsh environment.
Powerful Cortex-A8 Processors:
1. With 600MHz CPU, more efficient operation is reliable, such as 15times speed of displaying JPEG, 10 times speed of reading&writing PLC data, shortest boot time, and highest switching speed.

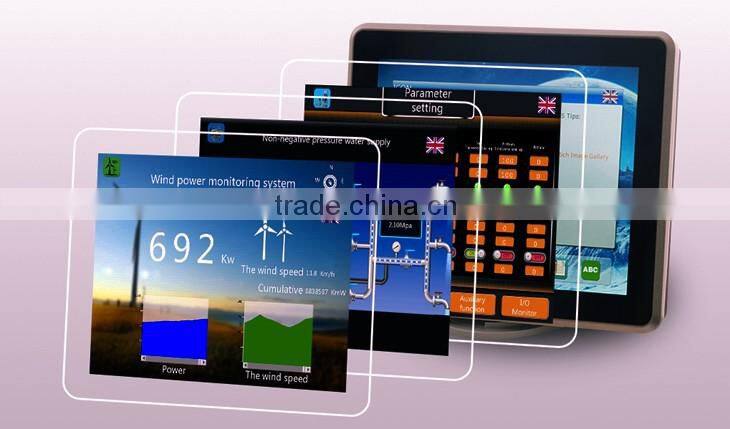

2. The complicated grahics could be presented eifitically due to 160,000,000 color.

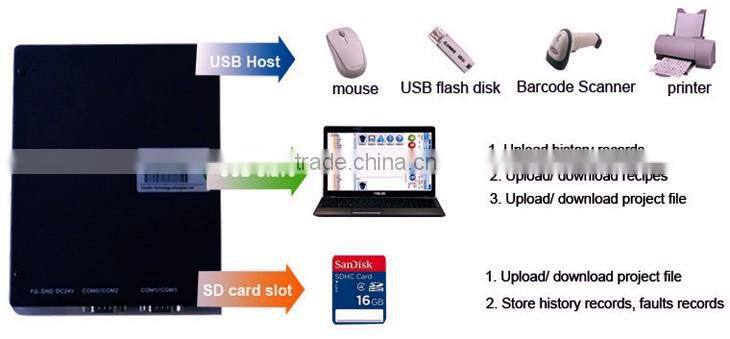

Various input&output interface;

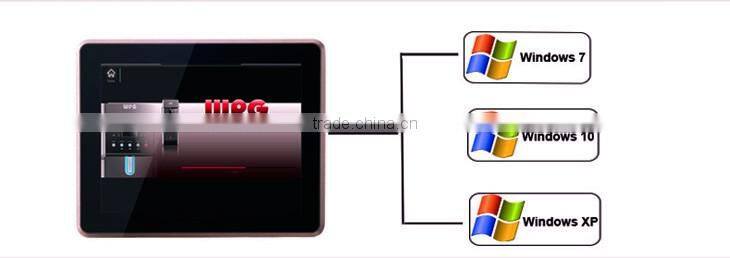

Compatible OS System of Programming Software- Mochuan Studio: Win7/ Win10/ Winxp:
Multi-Language:
could build various language environment, and support up to 12 various language for choice presented at one time.
Shipping terms of metal touch control panel display
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 working days for samples, 5~25 working days for batch goods.
Payment Terms of metal touch control panel display
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); trade assurance from aliaba
2. MOQ: 1 set;
Due to the quality problem, the free replacement part will be offered.
Due to incorrect use, unauthorized repaorment, fall, tec., maintenance cost will be charged.
MOCHUAN owns the complete industry chain: R&D team, powerful supply capacitive, perfect system of freight forwarding
and first-class pre-sale and after-sale service of any problem in operating PLC, HMI, VFD, AC Servo motor.
Every product is finishes by the strict quality test system to ensure customers' benefit. Besides, every order is checked by
the professional engineer before delivering.
1. More than 15 Years' Experiece in Drivers Manufacturing metal touch control panel display : the complete industry chain: the strong R&D team, the powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any problem in operating hmi .
2. Customization Production: size, model, package of capacitive hmi can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our metal touch control panel display for customers.
1. Do you provide the engineer to program the project file per user's tech requests?
For simple tech requests, of course, it is ok, and for free. But for a complicated one, or a full set of project file including metal touch control panel display and PLC, some fee should be charged.
2. Do your metal touch control panel display support all brand PLC?
The metal remote access touch control panel display support alsmost all foreign and Chinese PLC.
3. If one brand PLC is not in your supported list, what is your sdolution?
There are two solutions: the first one is to give us your detailed PLC drives tech data, then the tech depart program it into our metal touch control panel display the second is to make it throguh Modbus communication.
4. Do you have a recommended power supply?
The power supply of metal touch control panel display is DC24V. So a external DC24V switch power supply is needed to buy by users. It is a general device, which is very easy to buy in the electronic market.
5. Do your metal touch control panel display support Modbus TCP/IP and Modbus RTU?
Of course, yes, it could be seen in our programming software-Mochuan Studio. If you need, please contact us for its screenshot.
6. What's the difference between your metal touch control panel display and pc?
One biggest difference is that our hmi is to monitor industrial machine's running state through a programmed project file, and do not support APP, Video&audio input&output.
