Optical Fiber Cable GYXTC8S(S)
Technical Characteristics
♦Fiber count: 2~24
♦Low loss, low dispersion
♦Proper design and precise excess length control and cabling process offers cable superior mechanical and environmental properties
♦Corrugated steel tape armor brings better side pressure resistance and humidity proof performance
♦Compact construction, light weight, self-supporting installation.
Performance
♦ Applicable to long distance, inter-exchange communication, CATV, computer network transmission system, etc.
♦ Minimum bend radius: static 10D, Dynamic 20D
♦Operation temperature: -40 ~ +70
2. Cable Specification

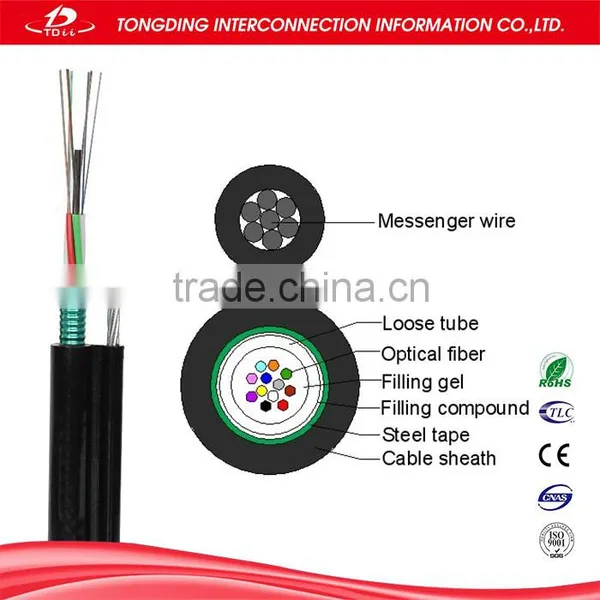

2.1 Cable cross-section
2.2 Fiber color code
No. |
1 |
2 |
3 |
4 |
5 |
6 |
Color |
Blue |
Orange |
Green |
Brown |
Gray |
White |
No. |
7 |
8 |
9 |
10 |
11 |
12 |
Color |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
No. |
13 |
14 |
15 |
16 |
17 |
18 |
Color |
Blue+R |
Orange+R |
Green+R |
Brown+R |
Gray+R |
White+R |
No. |
19 |
20 |
21 |
22 |
23 |
24 |
Color |
Red+R |
Natural+R |
Yellow+R |
Violet+R |
Pink+R |
Aqua+R |
2.3 Cable structure and parameter
|
Fiber number |
Tube Diameter |
Messenger strand steel wire diameter |
Sheath thickness (nominal*) |
Diameter W*H (Nominal*) |
Weight (Approx.) |
mm |
mm |
mm |
mm |
kg/km |
|
12 |
3.0 |
3.0 (1.0mm*7) |
1.5 |
7.3*14.3 |
116 |
24 |
3.6 |
3.0 (1.0mm*7) |
1.5 |
7.9*14.9 |
125 |
3. Fiber characteristic
3.1 All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T RecommendationG.657A / G.652D / G.652C
4. Characteristic of Optical Cable
4.1 Cable bending radius:
10 x cable diameter (during operation)
20 x cable diameter (during installation)
4.2 Temperature range
Operating temperature range |
-40oC to +60oC |
Storage / Transport temperature range |
-50oC to +70oC |
Installation temperature range |
-20oC to +50oC |
4.3 Main mechanical & environmental characteristics tes
1 |
Tensile Strength |
As per IEC 794-1-E1 |
2 |
Crush Test |
As per IEC 60794-1-E3 |
3 |
Impact Test |
As pe IEC 60794-1-E4 |
4 |
Repeated Bending |
As pe IEC 60794-1-E6. |
5 |
Torsion |
As pe IEC 60794-1-E7 |
6 |
Water Penetration |
As pe IEC 60794-1-F5B |
7 |
Temperature Cycling |
As pe IEC 60794-1-F1 |
8 |
Compound Flow |
As pe IEC 60794-1-E14 |
9 |
Sheath High Voltage Test |
-No sheath breakdown @ 9t KV |
1.How to confirm that our factory is a reliable supplier?
RE: Tongding Interconnection Information Co.,Ltd is top 3 of communications industry in China. You can search our company's information on Baidu or Google.We are the Assessed Supplier of . Alibaba as the third party verifies our factory and company to confirm that we are a real and reliable supplier.
2.Does our company support factory inspection?
RE: Of course,we do.The company covers an area of 1000,000 square meter.There are 4000~5000 workers in our factory now.We have 6 production division and 1 testing centre.Besides that, we also own fiber optic business unit and 40 wire drawing towers.Welcome to inspect factory anytime and anywhere.
3.Do you provide free samples?
RE: Yes.We provide free samples below 10 meters.
4.How to ensure the products are qualified in your factory?
RE: We control the quality strictly and inspect every working procedure of semi-finished products.We strictly control the proportion of unqualified products,so as to guarantee the quality of the final products.
5.Can we become a distributor to sale your products?
RE: Yes,of course.Anyone is welcome to become our distributor.And we will give you the corresponding preferential policies.
