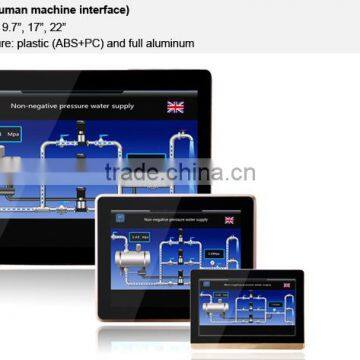

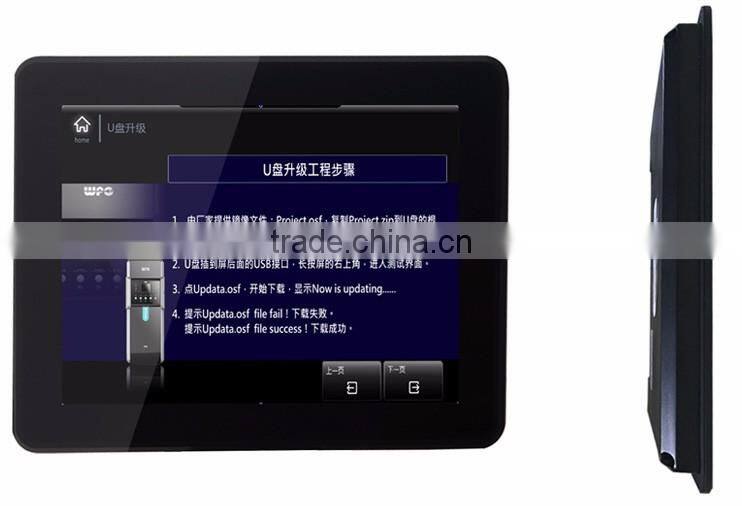

embedded round TFT LCD 9.7" industrial hmi screen monitor
| Technical Data and All Size of capacitive industrial hmi screen monitor | |||||
| Item | M007 | M010 | MC5170 | MC5220 | |
| Bottom Software | Linux | ||||
| Compatible Labtop OS of programming software | WIN7/ WIN10/ WINXP | ||||
| CPU | Cortex-A8 600MHz | Cortex-A8 800MHz | |||
| Touch Screen | Glass+ Glass projective mulit-touch capavitive panel | ||||
| Display | Screen Size | 7" 16:9 TFT LCD, IPS | 9.7" 4:3 TFT LCD, IPS | 17" TFT LCD, full HD, wide view | 22" TFT LCD, full HD, wide view |
| Resolution | 1024x600 | 1024x768 | 1280x1024 | 1920x1080 | |
| Colors | 16,000k(24 bit) | 16 bit | |||
| Brightness | 450 cd/m2 | 420 cd/m2 | 350 cd/m2 | 300 cd/m2 | |
| Backlight | LED | ||||
| Storage | Flash | 128M | 256M | ||
| RAM | 128M | 256M | |||
| SD Card | supporting | ||||
| Ports | USB Port | USB Host: USB 2.0 x 1;USB Client: USB 2.0 x 1 | |||
| Serial Port | COM1: RS232/RS485/RS422 | COM1/COM2: RS232/RS485/RS422 | COM1/COM2: RS232/RS485/RS232 | ||
|
COM2/COM4: RS484 COM3: RS232 |
COM3/COM4: RS232 | COM3: RS232 | |||
| Download Project | USB Disk/ USB Device/ Ethernet | ||||
| Power | Power Supply | 24V DC, input range: 9~28V DC | DC24V, input range: DC18~28v | ||
| Power | <10w | <18w | <20w | ||
| power isolation | protected from thunderstrike and surging | ||||
| Power Down Allowed | <3ms | <5ms | |||
| Seismic resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minute) | ||||
| Dimensions | Shell | ABS | aluminum front panel and steel back panel | ||
| Dimension/mm | 1851.1x131.1x30 | 247x197x31.5 | 393x330x40 | 532x338x40 | |
| Mounting Size/mm | 178x125 | 233x180 | wall mount and snap-in installation | ||
| Weight/kg | 0.64 | 1 | 3.85 | 5.3 | |
| Environment | Protection | front IP 65(with NEMA panel), back IP20 | |||
| Temperature | Storage: -30℃~70℃; Working: -10℃~60℃ | ||||
| Humidity | 10 ~ 90%RH | ||||
| CE Certification | EN61000-6-2:2005, EN61000-6- 4:2007 Standard | ||||
| RoHs | applied, surge immunity: ±4KV, EFT: ±4KV, ESD: 4KV, Air: 8KV | ||||
| Programming Software | above Mochuan Studio V1.0 | ||||

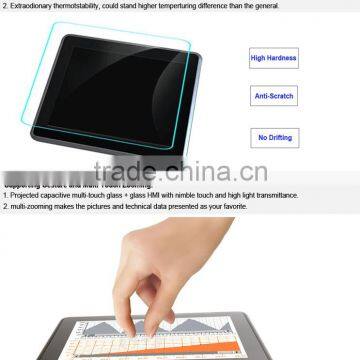

Supporting Multi-Touch Zooming and Gesture:
1. projected capacitive multi-touch glass+glass hmi with nimble touch and high light transmittance.
2. multi-zooming makes the pictures and technical data presented as your favorite.

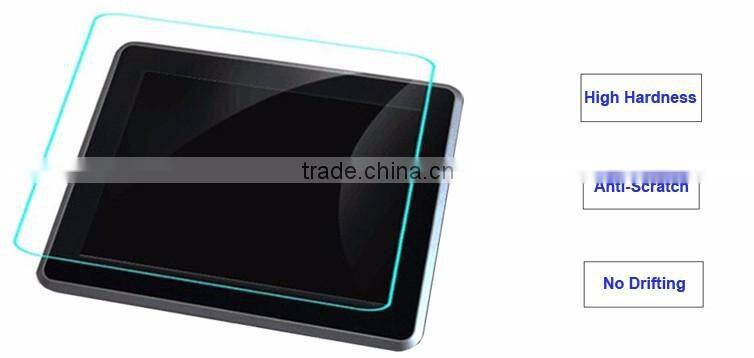

Projected capacitive, multi-touch glass+glass, nimble touch, anti-scratching, no drifting.
1. IPS full view TFT LCD, high resolution, high brightness, clear under sunshine.
2. Extraordionary thermostability stands higher tempeturing difference than the normal.

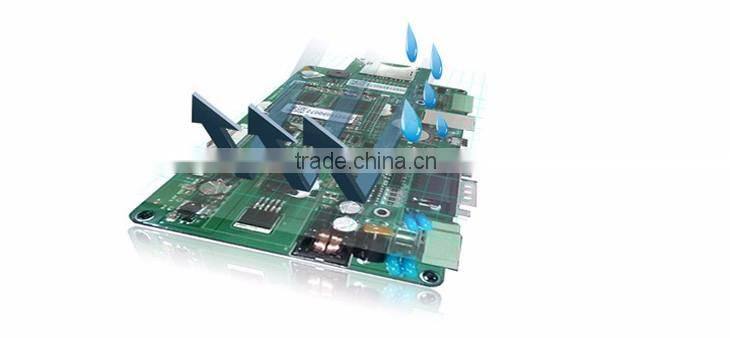

PCB Coating Protection: Enhance the strength of damp proof, dust prrof, corrision resistance in harsh environment.
Powerful Cortex-A8 Processors:
1. With 600MHz CPU, more efficient operation is reliable, such as 15times speed of displaying JPEG, 10 times speed of reading&writing PLC data, shortest boot time, and highest switching speed.
2. The complicated grahics could be presented eifitically due to 160,000,000 color.
Multi-Language:
could build various language environment, and support up to 12 various language for choice presented at one time.

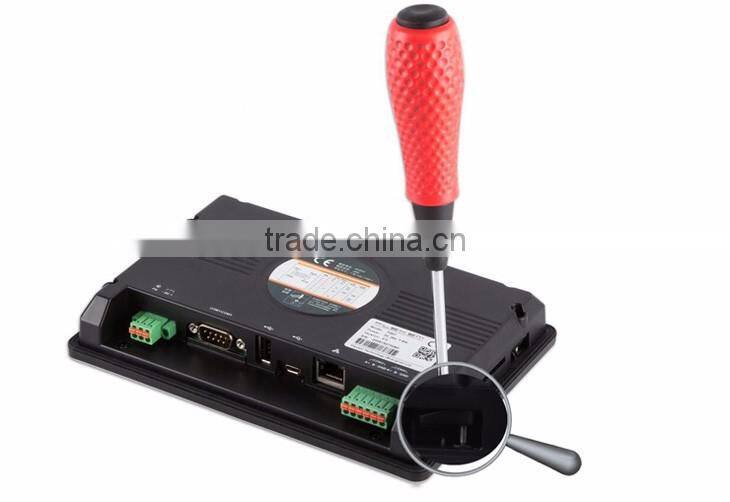

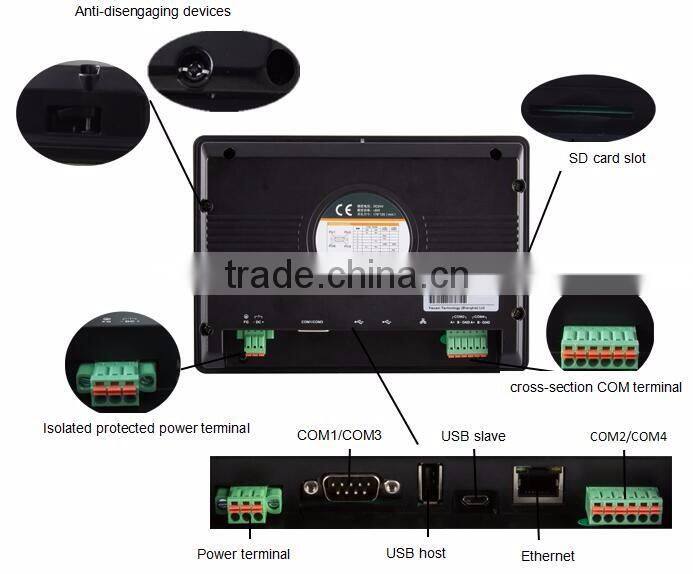

Anti-Disengaging Installation Design:
High Temperature Resistance:
Dust standard has a breakthrough by competent for all kinds of working environment. After using fanless mainboard, temperature resistance increases 50%.
Shipping terms of industrial hmi screen monitor
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 working days for samples, 5~25 working days for batch goods.
Payment Terms of industrial hmi screen monitor
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); trade assurance from aliaba
2. MOQ: 1 set;
Due to the quality problem, the free replacement part will be offered.
Due to incorrect use, unauthorized repaorment, fall, tec., maintenance cost will be charged.
MOCHUAN owns the complete industry chain: R&D team, powerful supply capacitive, perfect system of freight forwarding
and first-class pre-sale and after-sale service of any problem in operating PLC, HMI, VFD, AC Servo motor.
Every product is finishes by the strict quality test system to ensure customers' benefit. Besides, every order is checked by
the professional engineer before delivering.
1. More than 15 Years' Experiece in Drivers Manufacturing capacitive industrial hmi screen monitor: the complete industry chain: the strong R&D team, the powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any problem in operating hmi .
2. Customization Production: size, model, package of capacitive hmi can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our capacitive industrial hmi screen monitor for customers.
1. Do you provide the engineer to program the project file per user's tech requests?
For simple tech requests, of course, it is ok, and for free. But for a complicated one, or a full set of project file including capacitive industrial hmi screen monitorand PLC, some fee should be charged.
2. Do your capacitive industrial hmi screen monitor support all brand PLC?
The capacitive industrial hmi screen monitor support alsmost all foreign and Chinese PLC.
3. If one brand PLC is not in your supported list, what is your sdolution?
There are two solutions: the first one is to give us your detailed PLC drives tech data, then the tech depart program it into our capacitive industrial hmi screen monitor the second is to make it throguh Modbus communication.
4. Do you have a recommended power supply?
The power supply of capacitive industrial hmi screen monitor is DC24V. So a external DC24V switch power supply is needed to buy by users. It is a general device, which is very easy to buy in the electronic market.
5. Do your capacitive industrial hmi screen monitor support Modbus TCP/IP and Modbus RTU?
Of course, yes, it could be seen in our programming software-Mochuan Studio. If you need, please contact us for its screenshot.
6. What's the difference between your capacitive industrial hmi screen monitor and pc?
One biggest difference is that our hmi is to monitor industrial machine's running state through a programmed project file, and do not support APP, Video&audio input&output.
Feel free to contact us at any time for any questions ,please click " send " right now
