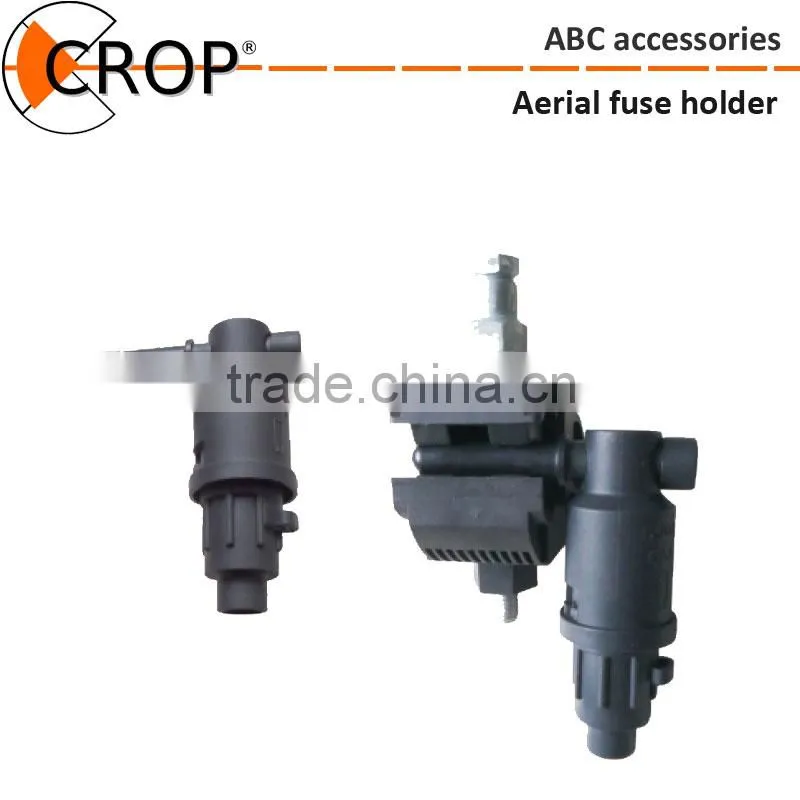

Up to 63A 1KV Horizontal Insualted fuse holder
PRODUCT DESCRIPTION:
FCC model has been designed to connect consumers between the low-voltage
overhead distribution lines and service,being able to connect conductors of 1.5-16 sqmm
(A.W.G.16-5).
FCC allows connection of the fuse NEZD with a stainless steel spring,flat copper tinned contacts
ensure safe and proper connection.
The FCC is weatherproof,is available in two versions,horizontal and vertical(V).the base model is
Equipped with a FCC crimpeable terminal for connection to the customer and a contact line isolated
for easy installation on main lines with insulation piercing connector(IPC).
FCC can be used as a protection device,using fuses or as a point of connection and disconnection point
using a contact element copper or plastic.this represents a great advantage over other products because
there is no need eliminate to fixed,or cut the net,and since it is difficult for the user to turn on the pole for
possible fraud with the connection.
The FCC model has the ability to put the seals or cable tie to ensure a secure connection.
- Connector with an insulated structure getting a high mechanical and climatic resistance.
- Tap side equipped with a security stud fitted with a bayonet locking.
- Water tightness system to restore insulation , flashover resistance 6kv deeped in water.
- Easy to use and install: insulating piercing (PCT), shear head, screw never on potential,
stud protected against direct contact.
CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
