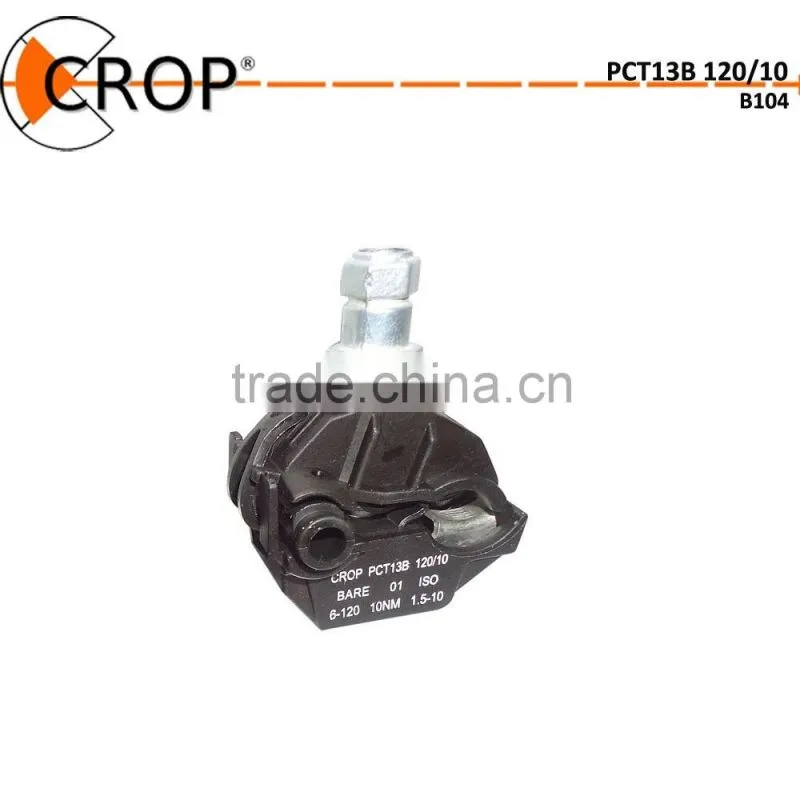

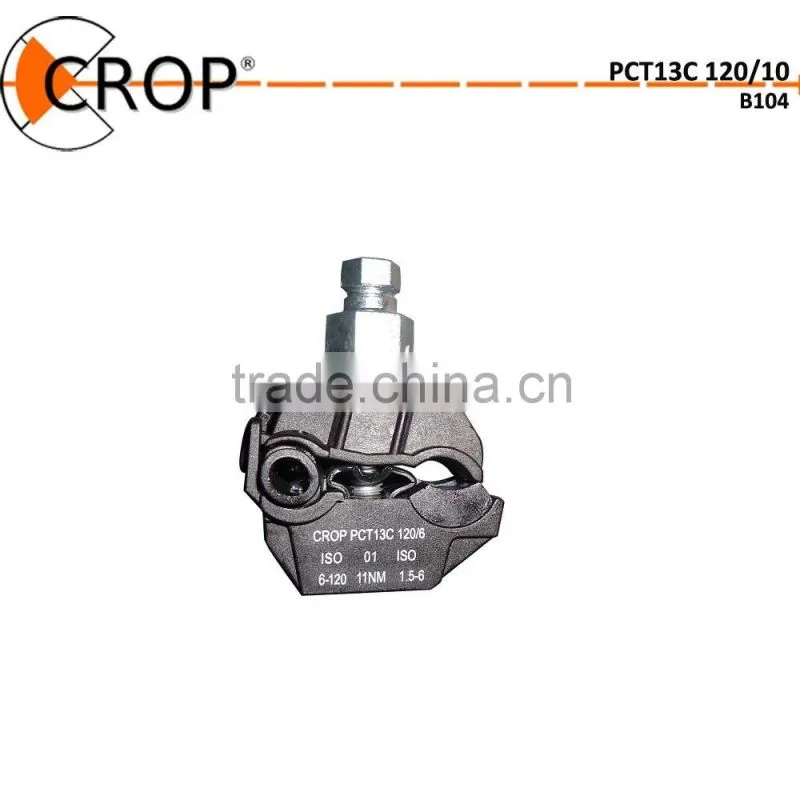

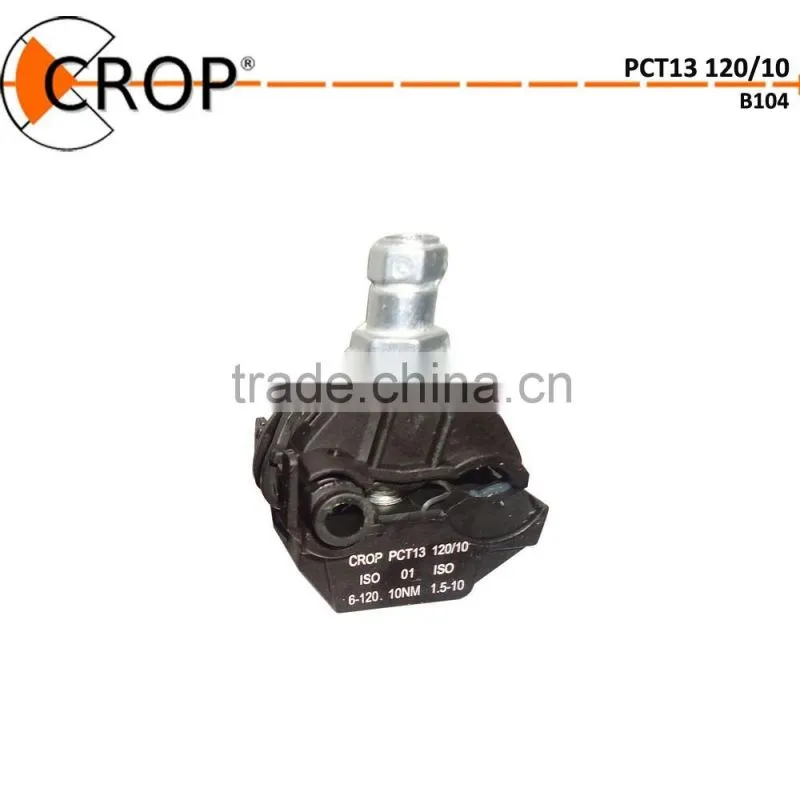

Low voltage waterproof piercing electrical connector
PRODUCT DESCRIPTION:
Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.
IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.
Product can be also used as tap connector inside low boltage boxes.
PRODUCT RANGE:
| Model number | Cable type | Section |
| PCT13C 25/10 | RE/RM,isolated to isolated,Cu/Al | Main:1.5-25 sqmm Tap:1.5-10 sqmm |
| PCT13C 95/10 | RE/RM,isolated to isolated,Cu/Al | Main:16-95 sqmm Tap:1.5-10 sqmm |
| PCT13C 120/10 | RE/RM,isolated to isolated,Cu/Al | Main:6-120 sqmm Tap:1.5-10 sqmm |
| PCT13CB 25/10 | RE/RM,bare to isolated,Cu/Al | Main:1.5-25 sqmm Tap:1.5-10 sqmm |
| PCT13CB 95/10 | RE/RM,bare to isolated,Cu/Al | Main:16-95 sqmm Tap:1.5-10 sqmm |
| PCT13CB 120/10 | RE/RM,bare to isolated,Cu/Al | Main:6-120 sqmm Tap:1.5-10 sqmm |
CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
