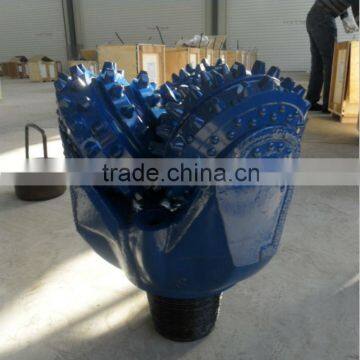

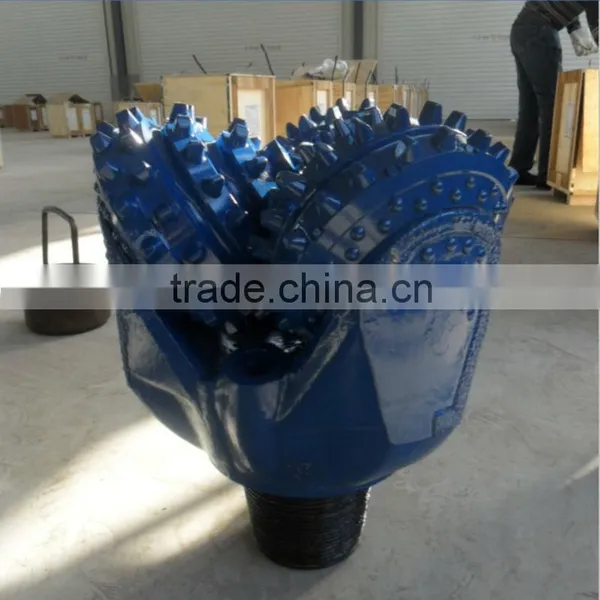

Help CenterWater Well Drilling 22 Inch 558mm Steel Tooth Rock Bit API Standard
Related Products
-
Chevron Type Bit (2 3/4"-12 1/4")US$ 20 - 20MOQ: 1 Piece -
Tungsten Carbide Roller Bits of Steel Tooth Tricone BitUS$ 500 - 1,000MOQ: 1 Piece
-
171mm Rock Rolle Tricone Bit IADC517US$ 1,200 - 1,200MOQ: 1 Piece
-
Diamond Steel Body PDC Bit for Oil DrillingUS$ 400 - 400MOQ: 1 Piece
-
API-7-1 Standard Kingdream Tricone Bit Milled ToothUS$ 3,000 - 3,000MOQ: 1 Piece

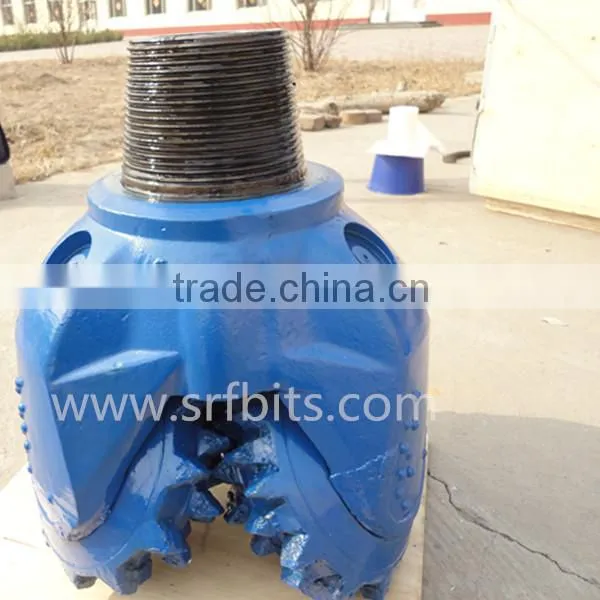

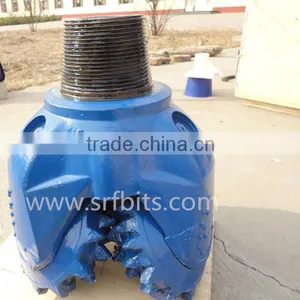

8 3/4'' 222.2mm steel tooth drill bits
Drill bit introduce
1. Drill bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.
2. Drill bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.
3. Drill bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.
4. Drill bit seal lubricants
Adopting advanced metal seal, greatly extend the drill life.
5. Drill bit applicable
Metal seal bit stable performance, than common rubber seal bit longer life, suitable for underground power drill and high penetration rate turntable drilling.
| IADC | WOB (KN/mm) |
RPM (r/min) |
Applicable Formations |
| 114/116/117 | 0.3~0.75 | 180~60 | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc. |
| 124/126/127 | 0.3~0.85 | 180~60 | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. |
| 134/135/136/137 | 0.3~0.95 | 150~60 | Soft to medium formations with low compressive strength and high drillability such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 214/215/216/217 | 0.35~0.95 | 150~60 | Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 227 | 0.35~0.95 | 150~50 | Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc |
| Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||
| IADC | WOB (KN/mm) |
RPM (r/min) |
Applicable Formations |
| 417/437/ 447/415/435 |
0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc. |
| 517/527/515 | 0.35~1.0 | 140~60 | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. |
| 537/547/535 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc. |
| 617/615 | 0.45~1.1 | 90~50 | Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc |
| 637/635 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc. |
| Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||
