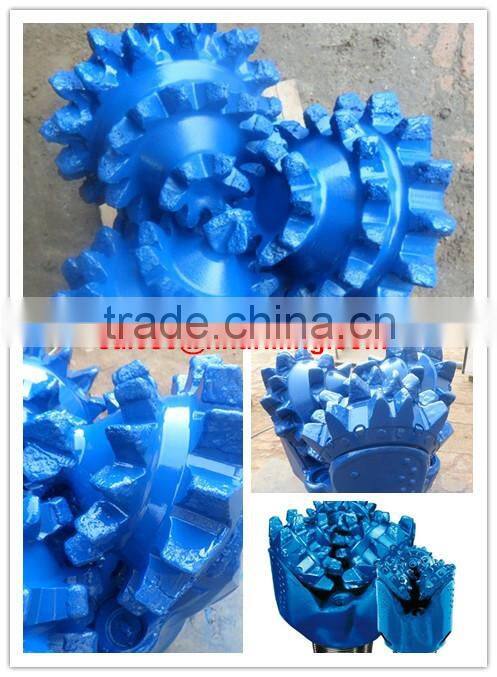

Tungsten Carbide Roller Bits of Steel Tooth Tricone Bit

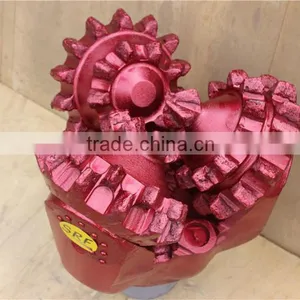

Tungsten Carbide Roller Bits of Steel Tooth Tricone Bit thumbnail-1

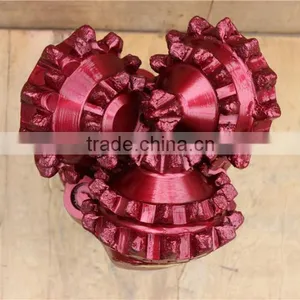

Tungsten Carbide Roller Bits of Steel Tooth Tricone Bit thumbnail-2

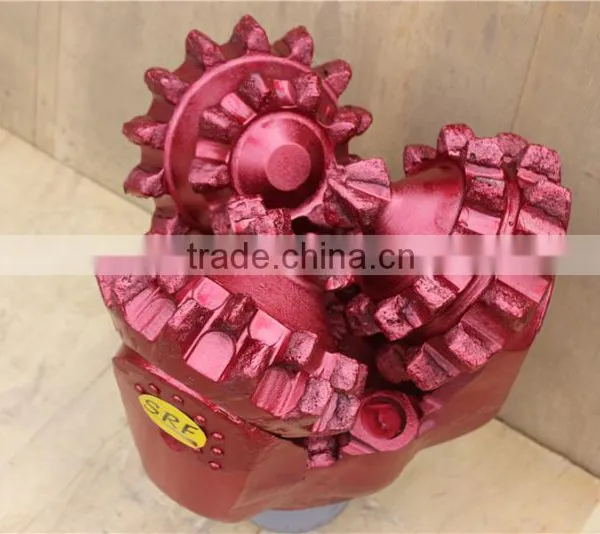

Tungsten Carbide Roller Bits of Steel Tooth Tricone Bit photo-1
Tungsten Carbide Roller Bits of Steel Tooth Tricone Bit photo-2
US$ 500 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SRF
Type:
Drill Bit
Contact Supplier Request Quote Chat Now
Hejian Zhongcheng Drill Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin seaport or Beijing airport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name SRF
Type Drill Bit
Machine Type Drilling Tool
Certification API
Material High Manganese Steel
Use Other, water well or oil well

8 3/4'' 222.2mm steel tooth drill bits

Drill bit introduce
1. Drill bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.

2. Drill bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.

3. Drill bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.

4. Drill bit seal lubricants
Adopting advanced metal seal, greatly extend the drill life.

5. Drill bit applicable
Metal seal bit stable performance, than common rubber seal bit longer life, suitable for underground power drill and high penetration rate turntable drilling.

IADC WOB
(KN/mm)		 RPM
(r/min)		 Applicable Formations
114/116/117 0.3~0.75 180~60 Very soft formations with low compressive strength and high drillability,
such as clay, mudstone, chalk, etc.
124/126/127 0.3~0.85 180~60 Soft formations with low compressive strength and high drillability, such
as mudstone, gypsum, salt, soft limestone, etc.
134/135/136/137  0.3~0.95 150~60 Soft to medium formations with low compressive strength and high drillability
such as medium soft shale, hard gypsum, medium soft limestone, medium
soft sandstone, soft formation with harder interbed, etc.
214/215/216/217 0.35~0.95 150~60 Medium formations with high compress strength, such as medium soft shale,
hard gypsum , medium soft limestone, medium soft sandstone, soft formation
 with harder interbed, etc.
227   0.35~0.95 150~50 Medium hard formations with high compressive strength, such as abrasive
shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.




IADC WOB
(KN/mm)		 RPM
(r/min)		 Applicable Formations
417/437/
 447/415/435		 0.35~0.9 150~70 Very soft formations with low compressive strength and high drillability, such as clay,
mudstone, chalk, gypsum, salt, soft limestone, etc.
517/527/515 0.35~1.0 140~60 Soft formations with low compressive strength and high drillability, such as mudstone,
gypsum, salt, soft limestone, etc.
537/547/535  0.45~1.0 120~50 Soft to medium formations with low compressive strength, such as medium, soft shale,
medium soft limestone, medium soft sandstone, medium formation with harder and
abrasive interbeds, etc.
617/615 0.45~1.1 90~50 Medium hard formation with high compress strength, such as hard shale, limestone,
sandstone, dolomite. etc
637/635   0.5~1.2 80~40 Hard formations with high compressive strength, such as sandstone, limestone,
dolomite ,hard gypsum, marble, etc.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
