Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Chevron Type Bit (2 3/4"-12 1/4")

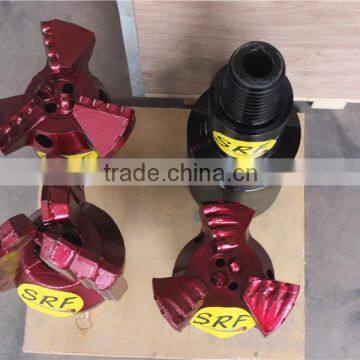

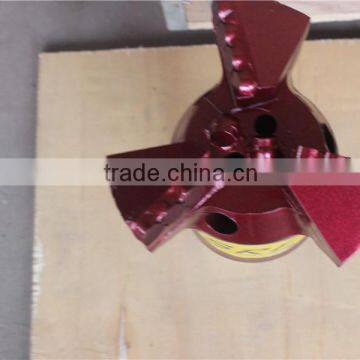

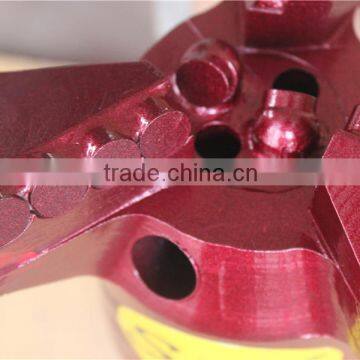

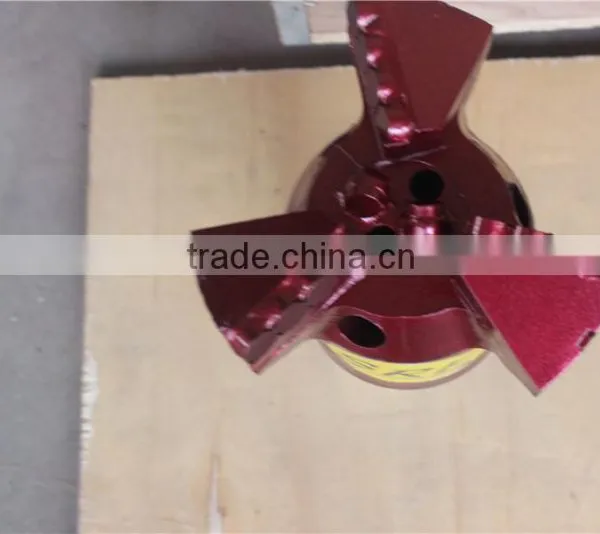

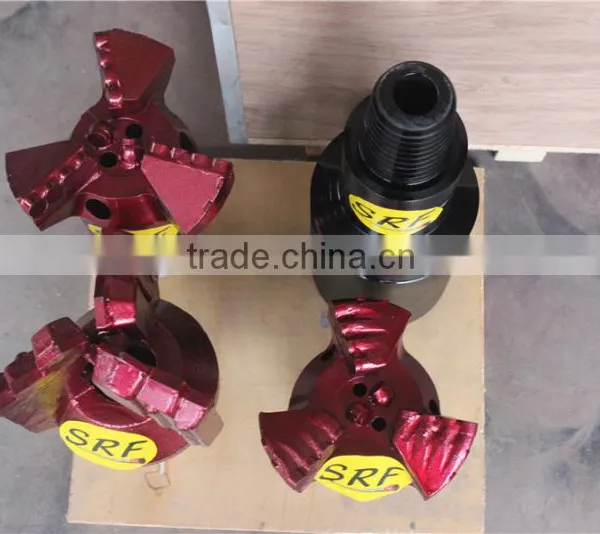

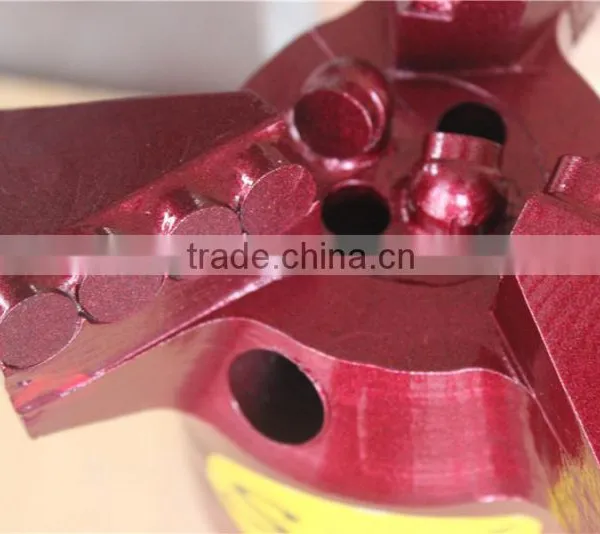

Chevron Type Bit (2 3/4"-12 1/4")

Chevron Type Bit (2 3/4"-12 1/4") thumbnail-1
Chevron Type Bit (2 3/4"-12 1/4") thumbnail-2
Chevron Type Bit (2 3/4"-12 1/4") thumbnail-3
Chevron Type Bit (2 3/4"-12 1/4") photo-1
Chevron Type Bit (2 3/4"-12 1/4") photo-2
Chevron Type Bit (2 3/4"-12 1/4") photo-3
US$ 20 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SRF
Type:
Other, pdc bit
Contact Supplier Request Quote Chat Now
Hejian Zhongcheng Drill Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin seaport or Beijing airport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name SRF
Type Other, pdc bit

Leading manufacture of varies tugsten carbide(TC)stepped drag bits, such as 2-wings drag bit, 3-wings drag bit, 4-wings etc.
With ISO certificate &quality control
Stepped drag bit is a drill bit uses in soft formations such as sand, clay or some soft rock.
Type: Chevron and Step type
Wings: 2, 3 and 4 wings
Size: 3" to 24"
Thread: 2 3/8", 3 1/2", 4 1/2", 6 5/8" API Reg. Pin
Type: Chevron and Step type
Wings: 2, 3 and 4 wings
Size: 3" to 24"
Thread: 2 3/8, 3 1/2, 4 1/2, 5 1/2, 6 5/8 API Reg. Pin

API three wings chevron step tungsten carbide drag bit/step T. C drag bit
About products
The Drag Bits can penetrate softer formations such as stiff clays and mudstones very quickly. Usually used for construction or other site investigation projects. It has two types: Step Type and Chevron Type.
About us
ZhongCheng offers various diamond reaming shells, they are T. C reaming shells and surface set diamond reaming shells. PDC anchor shank drill bit select top grade PDC cutter, the bit has stable performance and impact resistance, could be applied to rock formation f≤ 12, like conglomerate, granite, limestone
Our products advantage

Size Type Pin Wt. (lbs.)
1 3/4"" ~ 2 1/2"" AW, A-Rod 2
2 5/8"" ~ 2 7/8"" AW, A-Rod 2 1/2
2 3/4"" ~ 3 1/4"" 3THD/4THD N-ROD 2"" IF 4
3 3/8"" ~ 3 3/4"" 3THD/4THD N-ROD 2"" IF 4 1/2
3 7/8"" ~4 3/4"" 2 3/8"" API Pin 6
4 7/8"" ~ 5 1/8 2 3/8"" API Pin 7
5 1/4"" ~5 1/2"" 2 3/8"" API Pin 8
4 5/8"" ~ 5"" 2 7/8"" API Pin 10
5 1/8"" ~5 1/2"" 2 7/8"" API Pin 11
5 5/8"" ~ 6 1/4"" 3 1/2"" API Pin 18
6 1/2"" ~ 6 3/4"" 3 1/2"" API Pin 19
7"" ~ 7 1/2"" 3 1/2"" API Pin 21
7 5/8"" ~ 8" 3 1/2"" API Pin 23
 8 1/2  4 1/2  25
9"-12 1/4 6 5/8 30-45
The thread can be male/female and any type can be customized-made.
