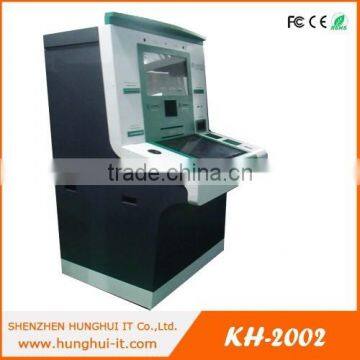

Customizable Bank Virtual Teller Machine
Product Description
Basic Configuration
| ||
Central PC (Customizable) | Motherboard | H61 / Advantech |
| CPU | Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional: i3/i5/i7 | |
| RAM | DDRIII 4G / 8G | |
| HDD | 500G, 7200rpm, 3.5" S-ATA | |
| Inter face | USB2.0*10,COM*10, VGA*2,DVI*1,SATA2.0*4,LAN*2,Audio*1,MIC*1 | |
Monitor
| Screen size | 15", 17", 19" 22", etc. |
| Brightness | 300cd/m2 | |
| Contrast | 800:1 | |
| Response time | 5ms | |
| Dot pitch | 0.264mm | |
| Best resolution | 1280x1024 | |
Touch Screen | Screen size | 15", 17", 19" 22", 26", etc. |
| Touch type | SAW, Infrared, Capacitive | |
| Resolution | 4096x4096 | |
| Feature | High transparence, precision and durability | |
Kiosk Enclosure | Material | Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness. |
| Surface finishing | Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust. | |
| Color and Logo | Customizable | |
| Features | Easy service access through front or back door. | |
| Accessories | Speakers | Stereo loudspeaker, 8Ω 10W |
| Fans | Internal ventilation system | |
| Power Supply | Input voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Operation System | Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux | |
| Package | Safe packing with bubble foam, carton box or plywood case | |
| Safety | Anti-vandal safety; | |
| Electric safety: compliant with GB4943 Standard; | ||
| EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard | ||
| Monitoring system: Digital video security monitoring system (optional) | ||
Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard; | ||
All hardware and SDK are WOSA/XFS and ISO8583 compliant.
SDK are Free of Charge.
Optional devices
Select optional devices according to your needs
| ||
Printer | Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter | |
| Dot Matrix : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter | ||
| Laser ptiner: A4, monochrome or color printer | ||
| Photo printer: Dye sublimation printer | ||
| Card printer: Encoding Magnetic cards, Contact or Contactless IC cards | ||
| Bankbook : 24 pin dual direction. | ||
Card reader
| Magnetic Card: ISO7810 ID-1,7811 | |
| RF ISO14443 Type A & B | ||
| Mifare | ||
| IC Card: ISO7816-2, T=0,T=1 CPU Card,SAM Card | ||
Biometric scanner | Fingerprint scanner | |
| Iris scanner | ||
| Face recognition | ||
| Palm vein scanner | ||
Document scanner | 1D/2D barcode scanner | |
| A4 document scanner | ||
| Check scanner | ||
| ID/Passport scanner | ||
| Cash or coin modules | Cash acceptor | Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes. |
| Coin acceptor | Coin diameter: 15~32mm, thickness: 1.5~2.5mm; | |
| Cash dispenser | 1 to 6 cassettes | |
| Coin dispenser | Coin diameter: 18~28.5mm, thickness: 1.65~3.2mm; | |
| Cash recycler | Recycle 80 notes in mixed denominations; Recycle 1 to 4 denominations | |
| Coin recycler | Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations. | |
| Keyboard | EPP | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65 |
| Metal keyboard | 64bits metal keyboard with trackball/touchpad, IP 65 | |
| Other peripheral | Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module | |
Our Services
- Fast response: Our Sales representative will respond your inquries within 12 working hours;
- Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
- Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
- Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
- Warranty: free warranty for 12 months, and lifetime maintenance support.
