Customizable Bank VTM Virtual Teller Machine Multibanco

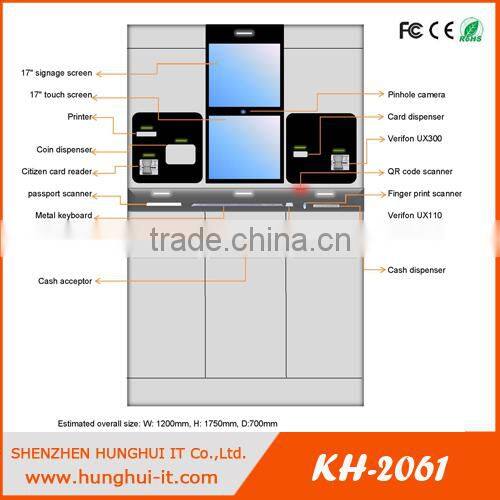

Customizable Bank VTM Virtual Teller Machine Multibanco photo-1
US$ 3,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hunghui
Model Number:
KH-2061
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name Hunghui
Model Number KH-2061

Customizable Bank Virtual Teller Machine Multibanco

 Customizable Bank VTM Virtual Teller Machine Multibanco



Functions:

A. Deposit or Withdraw money as ATM machine;

1. Deposit money;

2. Withdraw money;

3. Card reader to support read card info; EMV certified;

4. EPP to support password input; PCI certified;

5. Receipt printer to print receipt;



B, Open new account:

1. Identify the user by scan ID card or passport;

2. Take photo;

3. Scan fingerprint, Iris or face;

4. Print Open Account contract;

5. Scan and keep the hardcopy of contract in the machine;

6. Settting password;

7. Dispense U-key;

8. Make a new bank card: card type: magnetic card, IC card, NFC card; printer dual sides; emboss the card number or name on the card;



C. Account information inquiry:

1. inquiry for account transaction records;

2. print record on pass book;



D. Other functions customer may want.

We can customize the machine per requests,



Product Description



Basic Configuration











Central PC

(Customizable)

Motherboard

H61
CPUDual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional:  i3/i5/i7
RAMDDRIII 4G / 8G
HDD500G, 7200rpm, 3.5" S-ATA
Inter face USB2.0*10,COM*10, VGA*2,DVI*1,SATA2.0*4,LAN*2,Audio*1,MIC*1





















Monitor



Screen size15", 17", 19" 22", etc.
Brightness300cd/m2
Contrast800:1
Response time5ms
Dot pitch0.264mm
Best resolution 1280x1024





Touch Screen

Screen size15", 17", 19" 22", 26", etc.
Touch typeSAW, Infrared, Capacitive
Resolution4096x4096
FeatureHigh transparence, precision and durability











Kiosk Enclosure

MaterialCold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness.
Surface finishingCar painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust.
Color and LogoCustomizable
Features

Easy service access through front or back door.

AccessoriesSpeakersStereo loudspeaker, 8Ω 10W
FansInternal ventilation system
Power Supply Input voltage100~240V/AC
Frequency50Hz to 60Hz
Operation System Windows 2000 / Windows XP /  Windows 7 / Vista / Windows 8 / Linux / Android
PackageSafe packing with bubble foam, carton box or plywood case
Safety    Anti-vandal safety;
Electric safety: compliant with GB4943 Standard;
EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard
Monitoring system: Digital video security monitoring system (optional)

Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ;

Card reader is compliant with EMV Level1 Standard;



All hardware and SDK are WOSA/XFS and ISO8583 compliant.

SDK are Free of Charge.



Optional devices



Select optional devices according to your needs

























Printer

Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter

Dot Matrix : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter
Laser ptiner: A4, monochrome or color printer
Photo printer: Dye sublimation printer
Card printer: Encoding Magnetic cards, Contact or Contactless IC cards
Bankbook : 24 pin dual direction.











Card reader



Magnetic Card: ISO7810 ID-1,7811

RF ISO14443 Type A & B
Mifare
IC Card: ISO7816-2, T=0,T=1 CPU Card,SAM Card





Biometric scanner


Fingerprint scanner
Iris scanner
Face recognition
Palm vein scanner











Document scanner

1D/2D barcode scanner

A4 document scanner
Check scanner
ID/Passport scanner
Cash or coin modulesCash acceptorAcceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes.
Coin acceptor

Coin diameter: 15~32mm, thickness: 1.5~2.5mm;

Cash dispenser1 to 6 cassettes
Coin dispenserCoin diameter: 18~28.5mm, thickness: 1.65~3.2mm;
Cash recyclerRecycle 80 notes in mixed denominations; Recycle 1 to 4 denominations
Coin recycler

Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations.

Keyboard
EPP3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65
Metal keyboard64bits metal keyboard with trackball/touchpad, IP 65
Other peripheral Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module



Our Services
  • Fast response: Our Sales representative will respond your inquries within 12 working hours;
  • Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
  • Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
  • Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
  • Warranty:  free warranty for 12 months, and lifetime maintenance support.
