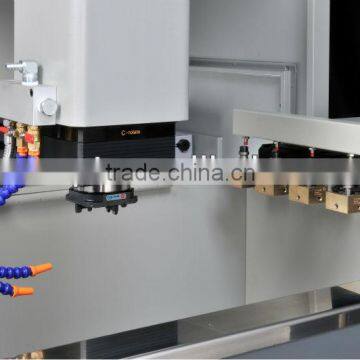

EDM-5435 (C-AXIS)

Name: EDM-5435 (C-AXIS)
Brand: PROMPT
SKU: 116749235
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

PROMPT

Model Number:

EDM-5435 (C-AXIS)

Prompt Integrated Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TAICHUNG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name PROMPT

Model Number EDM-5435 (C-AXIS)

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

EDM-5435 (C-AXIS)
X/Y/Z travel: 500 / 400 / 350 mm
Max. workpiece weight: 1000 kgs
Work table: 700x400mm

The system adopts Windows CE controller.
Column movable master by linear slideway on X/Y/Z
Automatic lubrication
USB port
ATC system and C axis option are available to increase machine functionally
Hydraulic door to protect dielectric from leaking
Machining path and graphic display
Close-loop and feedback circuit design of 0.001mm resolution numerical linear scale is adopted on the 3 axes of this machine. Such design could get precise position setting, and increase the machining precision and efficiency of ORBIT-CUT.
Dialogue programming editor that provides variety of hole enlargement modes (including function of edge search, center search, reference point search)
Automatic multi-step machining is available (rough-medium-fine). The maximum can be 10 steps.
Automatic home search function
1/2 edge finding function and ARC automatic arcing adjustment
Automatic center search and offset which could search the center and the deepest point of the hole.
Movement of axis linear (3 axes), arc (2 axes), spiral (3 axes) and offset
Switch function: language switch (Chinese / English) and unit system switch (Metric/Inch)
Single side sparking of the 3 axes and 6 directions (plane rotation)
Automatic programming edition function: According to the material, area, initial current and wear rate do proper adjustment.
