Cnc Plano Miller

Name: Cnc Plano Miller
Brand: PROMPT
SKU: 116748869

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Gantry

Place of Origin:

Taiwan, China

Prompt Integrated Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Gantry

Place of Origin Taiwan, China

Brand Name PROMPT

Model Number VMC-3220L

Specifications

cnc plano miller / gantry milling machine / bridge type machining center
X/Y/Z travel: 3200 x 2000 x 1000 mm

cnc plano miller / gantry milling machine / bridge type machining center

Model: VMC-3220L

(1) Main specifications:

Model	VMC-3220L
Table size	3000 x 1600 mm
T-slot (number x width x pitch)	7 x 22mm x 200mm
Max. load permissible	10000 mm
X axis travel	3200 mm
Y axis travel	2000 mm
Z axis travel	1000 mm
Spindle nose to table	BT40: 165-1165mm, BT50: 150-1150 mm
Distance between columns	2000 mm
Spindle taper	BT40, BT50 / DIN 69871A (option)
Spindle speed	Built-in BT40, HSK A63: 12000, 15000rpm BT50: 8000, 10000rpm
Spindle diameter	BT40: 70 mm, BT50: 100 mm
X axis rapid feedrate	15 m/min
Y/Z axes rapid feedrate	20 / 10 m/min
Cutting federate (X/Y)	1-7500 mm/min
Ballscrew diameter & pitch (X/Y/Z)	ψ63/63/50 mm, P25/20/10
Ballscrew driven (X/Y/Z)	Gear / Direct / Belt
Tool capacity	32 tools (Opt. 40 tools)
Max. tool diameter / adjacent tool	BT40 & HSK A63:75/125 mm, BT50:125 / 215 mm
Max. tool length	BT40 & HSK A63: 250 mm, BT50:350 mm
Max. tool weight	BT40 & HSK A63: 7 kgs, BT50: 20 kgs

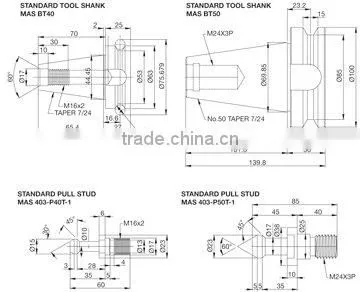

Pull stud	BT40: MAS403 P40T-1, BT50: MAS403 P50T-1

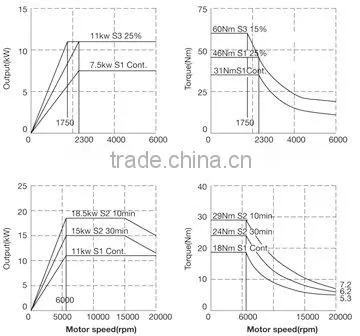

Spindle motor (cont. 30min rating)	18.5/22 KW (Cont. / 25%)
Max. spindle torque	118 Nm (25%)
Servo motor X/Y/Z (Fanuc)	7/7/7 KW (A30/A30/A30B)
Cutting fluid pump	0.75 KW
Positioning accuracy (JIS 6338)	±0.005/300 mm, ±0.015 length
Positioning accuracy (VDI 3441)	P0.025 mm
Repeatability (JIS 6338)	±0.003 mm
Repeatability (VDI 3441)	Ps 0.020 mm
Power capacity	50 KVA, 220V, 3 phase 50/60
Air pressure capacity	5 kg/cm²
Coolant tank capacity	550 liters
3 Axes guide way	X 2 roller, Y 2 roller, Z Turcite box way
Machine dimension (L)	8300 mm
Machine dimension (W x H)	4950 x 4700 mm
Machine weight	28000 kgs

(2) Standard accessories:

1. Spindle oil cooler	2. Semi splash guard
3. Auto lubrication system	4. Coolant system
5. Double chain & screw type chip conveyor and cart	6. Chain type 32T ATC
7. Rigid tapping	8. Work lamp
9. Warming lamp	10. Foot switch for clamping / unclamping
11. RS-232 interface	12. Leveling bolts and pads
13. Remote MPG	14. Heat exchanger for electric cabinet
15. Auto power off (M30)	16. Toolbox and adjustment tools
17. Transformer	18. Mitsubishi M70 controller
19. Operation manual & test report

(3) Optional accessories:

1. Fully enclosed splash guard	2. NC rotary table
3. Auto tool length measurement device	4. Auto work piece measurement device
5. Coolant through spindle	6. 3-Axis linear scale
7. Chain type 40T ATC	8. Oil skimmer
9. Fanuc 18i-MB controllers	10. Mitsubishi M720 controller
