Solar Power Product (SPB10-401209D)

Name: Solar Power Product (SPB10-401209D)
Brand: Solarever
SKU: 116741537
Availability: InStock

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solarever

Model Number:

SPB10-401209D

Hangzhou Gene Solar Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solarever

Model Number SPB10-401209D

Type Other, Solar fountain pump

Specifications

1.Used to create fountains and water features.
2.Pump protected against dry run.
3.Solar powered with battery back-up.

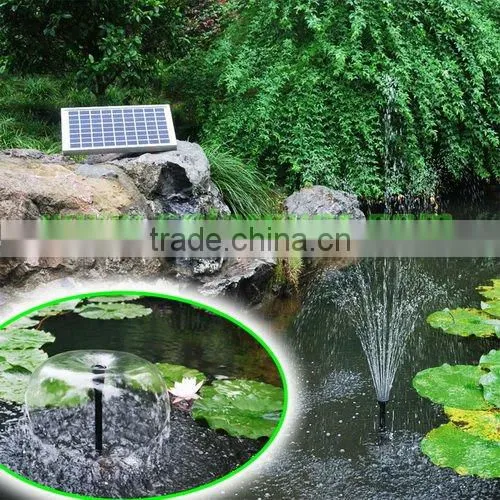

•Typical applications include creating medium water fountains, pumping water for water features and filtering fish pond water.

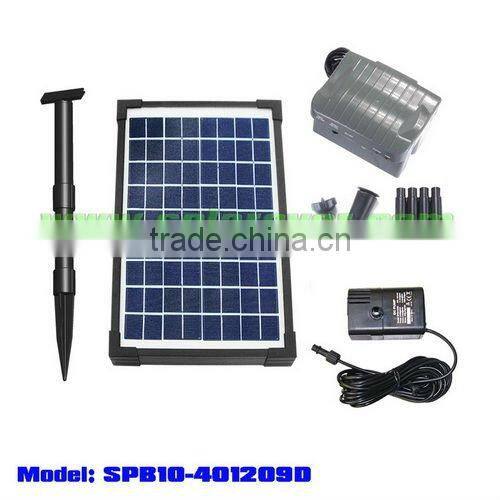

•The solar power product (SPB10-401209D) consists of a DC brushless dry run protection water pump,a solar panel module and a backup battery.

•Solar energized, maintenace free, cost free and easy to install.

•Dry run protection prevents the pump from burning out when fountain or pool dries out.

•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Battery back up, runs perfectly on overcast day and in the night.

•Ceramic shaft, runs steadily and quietly.

•Designed and manufactured to have high power efficiency.

•Cost-effectiveness, competitive price.

Item No.		SPB10-401209D
Description		Solar brushless pump kit
Category		Solar pump kit

Product Summary
Solar panel		Solar panel item				GSP10-36
		Peak power				10W
		Peak power voltage				17.28V
		Peak power current				0.579A
Pump		Pump item				BP401209D
		Maximum pump head				2.0m (6.6ft)
		Maximum flow rate				760L/H (200.8GPH)
		Cable length				5m (16.4ft)
		Nozzle item				NA02
Battery back-up		Item No.				SBB12-4.5
		Battery type				Lead Acid
		Battery capacity				12V, 4.5Ah
		Cable length				5m (16.4ft)
Flow adjustable						yes
Dry run protection						yes
Individual box size						41.5X27X21cm
Individual box G.W						6kg
Master carton size						57X43X24cm
Quantity per carton						2pcs
Master carton G.W						13kg
Quantity per 20 container						954pcs
Quantity per 40 container						1980pcs
Warranty						3years

Litres per hour - At various pumping heights (Head)
Operating voltage	@ 0m	@0.5m	@0.75m	@1.0m	@1.5m	@2.0m	@2.5m	@3.0m	Max height
12V	470	330	75	0					0.9m
18V	600	450	380	320	50	0			1.6m
24V	760	590	540	490	430	0			2.0m

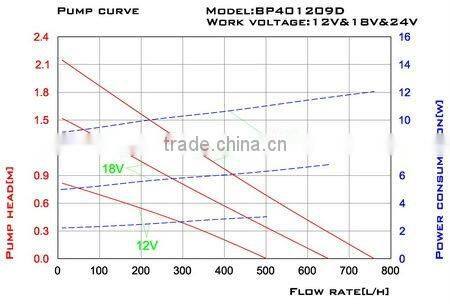

Pump Curve
