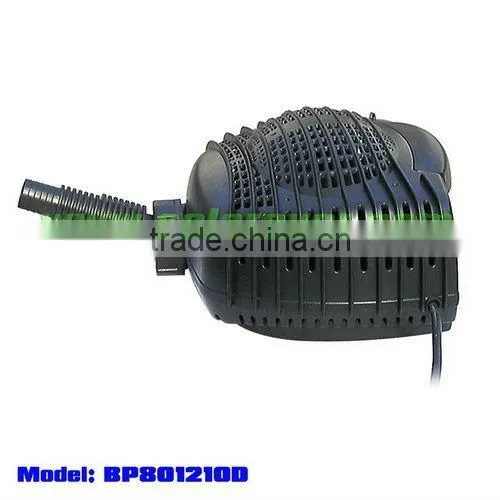

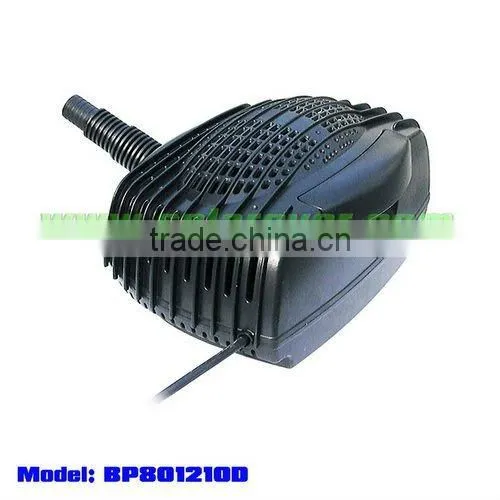

Filter Pump (BP801210D)

Name: Filter Pump (BP801210D)
Brand: solarever
SKU: 116741563
Availability: InStock

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

solarever

Model Number:

BP801210D

Hangzhou Gene Solar Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name solarever

Model Number BP801210D

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Nonstandard

Fuel Other, Electric

Pressure Low Pressure

Application Submersible

Specifications

1.To filter water by working with filter equipment.
2.Dry run protection,no failure prone carbon brush.
3.Can be solar powered

•Typical applications include filtering garden pond, pumping water for man made waterfalls and conducting garden irrigation.

•The filter pump (BP801210D) is powered by our solar panel or a DC power supply.

•Dry run protection prevents the pump from burning out when fountain or pool dries out.

•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Ceramic shaft, runs steadily and quietly.

•Designed and manufactured to have high power efficiency.

•Cost-effectiveness, competitive price.

Item No.		BP801210D
Description		DC brushless dry run protection water pump
Category		DC water pump

Product Summary
Operating voltage range						DC 12V-18V
Maximum pump head						1.0m@12V; 2.1m@18V
Maximum flow rate (Litres per hr)						1800L/H@12V; 2480L/H@24V
Delivery side (discharge)						1",1-1/4",1-1/2"
Flow adjustable						no
Dry run protection						yes
Removable foam filter						no
Salt or fresh water use						yes
Connection cable length						5m(16.4FT)
Dimensions L, W, H						294X221.3X147.5
Warranty						3 years

Litres per hour - At various pumping heights (head)
Operating voltage	@ 0m	@0.5m	@0.75m	@1.0m	@1.5m	@2.0m	@2.5m	@3.0m	Max height
12V	1800	1100	800	0					1.0m
18V	2480	2150	1900	1660	1100	200	0		2.1m

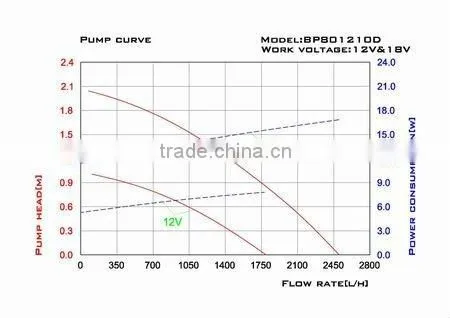

Pump Curve

Overview
