High Quality Low Price Poly Cheap Mini Solar Panel 18V5W
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Masterly or OEM
Model Number:
MSL-SP-5w18v
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Low Price Polycrystalline Mini Solar Panel 18V20WNegotiableMOQ: 100 Sets -
OEM 1W/2W/3W/5W/10/20W/30W/50W/100W Best Price Power 100w Solar Panel----- Factory Direct SupplyUS$ 0.6 - 0.8MOQ: 100 Pieces
-
High Efficiency Mini Poly Cheap Solar Panel 10W 18vNegotiableMOQ: 100 Pieces
-
High Quality Mini Solar Panel 1W/2W/3W/5W/10W/20W OEMNegotiableMOQ: 100 Pieces
-
HOT Sale! 2W5V High Effciency Lower Pricemini Solar PanelNegotiableMOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
Masterly or OEM
Model Number
MSL-SP-5w18v
Material
Polycrystalline Silicon
Size
290*190*17mm
Number of Cells
36 pcs
Max. Power
5W
Product Description

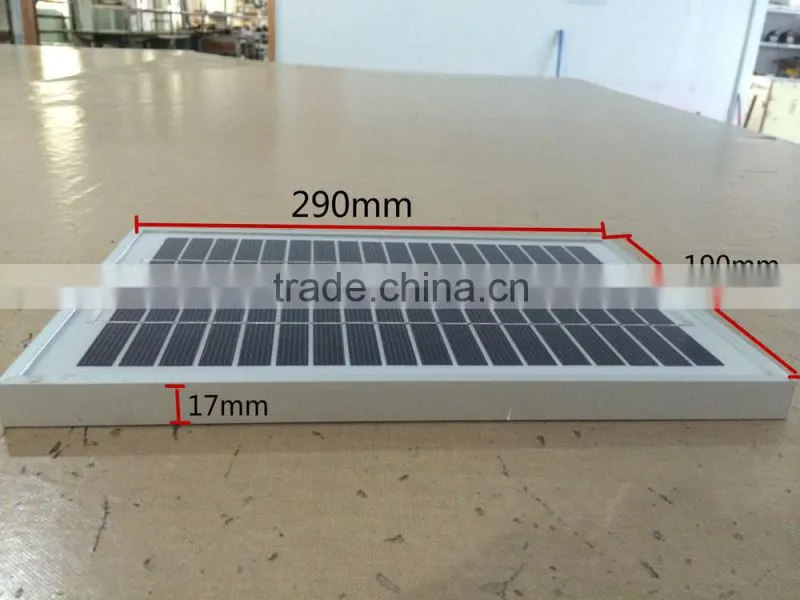

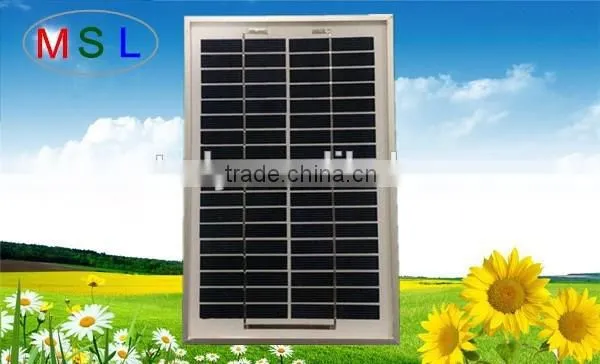

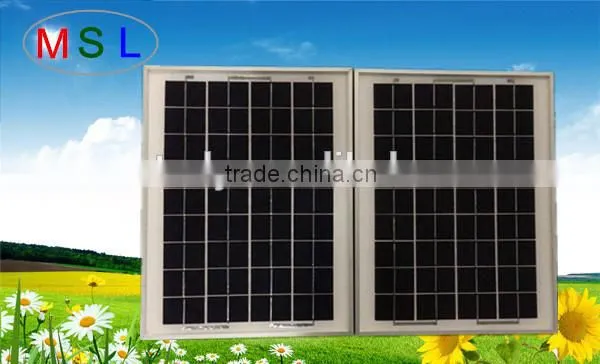

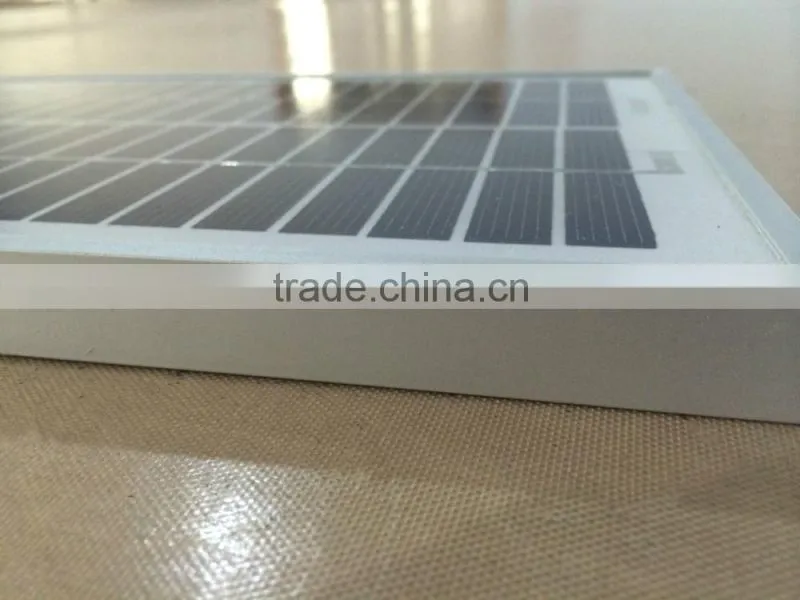

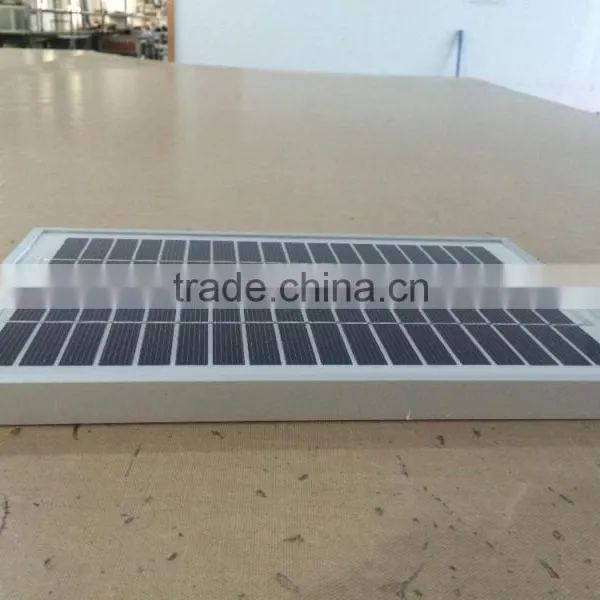

High efficiency poly cheap mini solar panel 18V5W
Features
1. Easy installation, high mechanical strength
2. Withstands high wind-pressure and snow load
3. Anti-aging&high viscosity EVA
4. High efficiency polycrystalline solar cell
5. Excellent performance in low light environment
| Mechanical Characteristics | |
| Item No. | MSL-SP-5W18V |
| Cell type | poly-crystalline silicon solar cells |
| Number of cells | 36pcs |
| Module dimensions | 290*190*17mm |
| Frame | Anodized aluminum, grey |
| Net weight | 665g |
| Electrical Characteristics | |
| Peak power (Pmax) | 5W |
| Power tolerance | ±5% |
| Max. system voltage | 1000VDC |
| Open circuit voltage (Voc) | 22.4V |
| Short circuit current (Isc) | 343mA |
| Max. power voltage (Vmp) | 18.6V |
| Max. power current (Imp) | 310mA |
| Cell Efficiency | >16% |
| Standard Test Condition (STD) | Irradiance:1000W/m2;Cell temperature:25℃; AM:1.5 |
| Operating temperature | -40 to+ 85℃ |
Company Information
Masterly Solar , your best partner!!!
Our Services
1. We will reply with in 24 workingday hours.
2. The size and voltage of solar panels can be customized by customers' requirements.
3. Professional manufacturer. You are warmly welcomed to visit us!
4. We have a professional engineers team, we can answer your questions about our products.
5. Each step after many tests to ensure that the panel can work normally.
6. We will be offer a good discount for big amount.
7. Shipping:
