OEM 1W/2W/3W/5W/10/20W/30W/50W/100W Best Price Power 100w Solar Panel----- Factory Direct Supply
US$ 0.6 - 0.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Masterly or OEM
Model Number:
MSL-SP-10w18v-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Mini Poly Cheap Solar Panel 10W 18vNegotiableMOQ: 100 Pieces -
High Quality Mini Solar Panel 1W/2W/3W/5W/10W/20W OEMNegotiableMOQ: 100 Pieces
-
HOT Sale! 2W5V High Effciency Lower Pricemini Solar PanelNegotiableMOQ: 200 Pieces
-
Solar Panel Manufacturers in China.Factory Direct Supply.1-250w.wholesaleUS$ 0.6 - 0.8MOQ: 100 Pieces
-
6V2W High Efficiency Cheap Mini Polycrystalline Solar PanelNegotiableMOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
Masterly or OEM
Model Number
MSL-SP-10w18v-01
Material
Polycrystalline Silicon
Size
350*270*17mm
Number of Cells
36pcs
Max. Power
1W-100W
Product Description
OEM 1W/2W/3W/5W/10/20W/30W/50W/100W folding solar panel ------Factory direct supply
Features
1. Easy installation, high mechanical strength
2. Withstands high wind-pressure and snow load
3. High efficiency polycrystalline solar cell
4. Excellent performance in low light environment
| Mechanical Characteristics | |
| Item No. | MSL-SP-10W18V |
| Cell type | poly-crystalline silicon solar cells |
| Number of cells | 36pcs |
| Module dimensions | 350*270*17mm |
| Net weight | 1163g |
| Electrical Characteristics | |
| Peak power (Pmax) | 10W |
| Power tolerance | ±5% |
| Max. system voltage | 1000VDC |
| Open circuit voltage (Voc) | 21.4V |
| Short circuit current (Isc) | 613mA |
| Max. power voltage (Vmp) | 18V |
| Max. power current (Imp) | 557mA |
| Cell Efficiency | >16% |
| Standard Test Condition (STD) | Irradiance:1000W/m2;Cell temperature:25℃; AM:1.5 |
| Operating temperature | -40 to+ 85℃ |
Materials

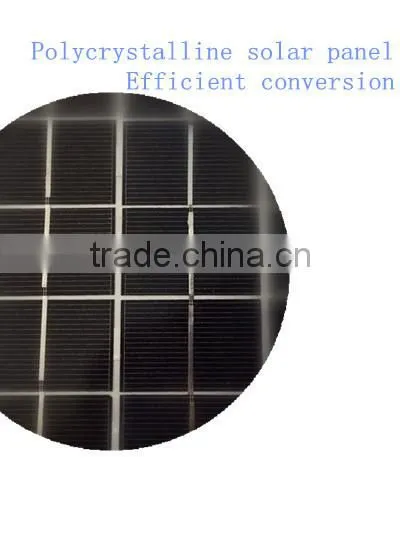

Cells
- High efficiency and reliability of long term
- Excellent performance in low light environment
- Good performance under high temperature

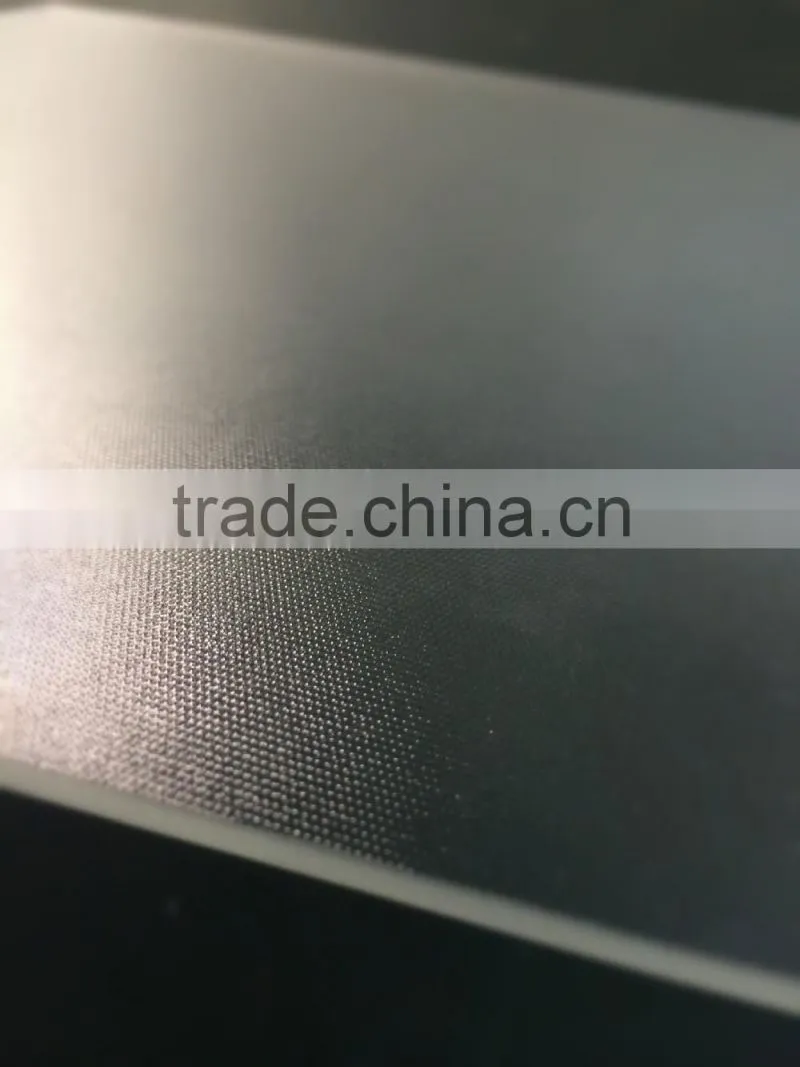

Glass
- ultra white fabric surface tempered glass
- High light transmission > 90%
- Ultraviolet radiation resistance
Back sheet
- TPT material
- Good aging resistance
-
Excellent adhesion and ultraviolet stability
EVA
- High light transmission
- Good ultraviolet aging resistance
- High strength encapsulation
Frame
- Anodized aluminum, Silver
- High strength, good stability
- Stable structure ensuring strong mechanical loading performance
- Classic style
solar panel cheap prices !!!!
Company Information
Masterly Solar , your best partner!!!
Our Services
1. We will reply with in 24 workingday hours.
2. The size and voltage of solar panels can be customized by customers' requirements.
3. Professional manufacturer. You are warmly welcomed to visit us!
4. We have a professional engineers team, we can answer your questions about our products.
5. Each step after many tests to ensure that the panel can work normally.
6. We will be offer a good discount for big amount.
7. Shipping:
