HVP-40DM(400V/4KV/40KV) DC High Voltage Meter/LCD Meter

Name: HVP-40DM(400V/4KV/40KV) DC High Voltage Meter/LCD Meter
Brand: Pintech
SKU: 116714561
Availability: InStock

Guangzhou Dekem Electronic Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Pintech

Model Number:

HVP-40DM

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Pintech

Model Number HVP-40DM

Power Electronic

Usage Other, eletronic power testing

Product Description

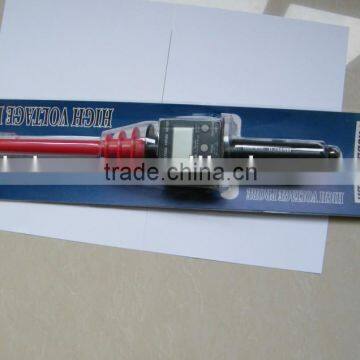

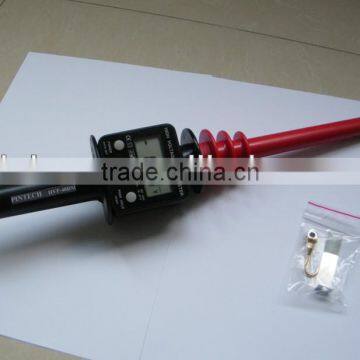

HVP-40DM DC High Voltage Meter(LCD meter,40KV)

Input Resistance	2000Mohm
Maximum operation voltage	40KV DC , CAT II , Pollution 2
LCD	3999 digital display LCD
Accuracy	≤ 1.0% ± 2 (All Range)
Temperature Coefficient	≤ 100ppm / °C
Maximum loading Current	≤ 20μA
Maximum loading power	≤ 0.8 watt
Range	40KV / 4KV / 400V / Have 3 Range
Resolution	10V / 1V / 0.1V / Have 3 Range
Power	9V battery; 9V / 006P, IEC6L R1, NEDA 1604A
Battery life	About 200hours (when use alkaline battery )
Automatic close-down function	About 30minutes
Peak value locking time	≥ 400 ms
Ambient operating Humidity	0°C ~ + 50°C
Ambient stroge Humidity	- 20°C ~ + 70°C
Cable length	90 centimetre ( 35 " )
Size	420 (L) x 80Φ mm
Weight	360g
