Home > Instruments & Meters > Test Instrument > Test Machine > Free Delivery P6039A(220MHz,40KV)Tektronix P6015A High Voltage Probe

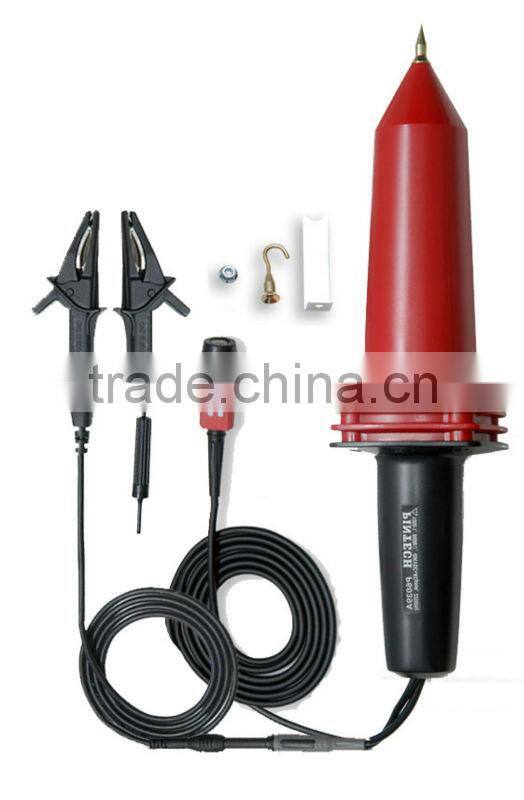

Free Delivery P6039A(220MHz,40KV)Tektronix P6015A High Voltage Probe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Pintech
Model Number:
P6039A
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Free Delivery P6008 (8KV/40MHz)high Voltage Measuring InstrumentNegotiableMOQ: 1 Set -
Free Delivery P6018A(150MHz,18KV)oscilloscope 18KV High Voltage Testing ProbeNegotiableMOQ: 1 Set
-
PT710-D(1.5MHz,80Ap-p) Current ClampNegotiableMOQ: 1 Set
-
PT710-C(1MHz,140Ap-p ,50A RMS) AC/DC Current Clamp ProbeNegotiableMOQ: 1 Piece
-
PT710-B (500KHz,5mA ~100A)Pintech Low Current ProbeNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Pintech
Model Number
P6039A
Power
Electronic
Usage
Other, eletronic power testing
Product Description
High Voltage Probe with high voltage measuring,match oscilloscope/DMM
Model | P6039A |
Division Ratio | 1000:1 |
Read Out | - |
Input Resistance | 900MΩ |
Input Capacitor | 2.0PF |
Max. DC+AC pack | 40KV CAT II |
Max. AC RMS. | 28KV CAT II |
Max. Loading Current | 45uA |
Band Width | DC~220MHz |
Rise Time | 1.6 ns |
Signal /Noise | >60dB at 1KHz; >50dB at 1MHz |
DCV Accuracy | ≤3% Full Range |
ACV Accuracy | ≤3% at 1KHz |
Temp. Coefficient | ≤200 PPM/°c |
Compensation Range | 10PF~35PF |
Safety | Meets EN61010-031CAT II |
Cable Length | 2M±0.2M |
Operation Temp. | -10~55°c |
Humidity | 85%RH or less(at 35°c) |
Storage Temp. | -20~70°c |
Color: Handel/Body | Black/ Red |
Weight /Volume | 460g/80(W)×80(H) ×320(L)mm |
