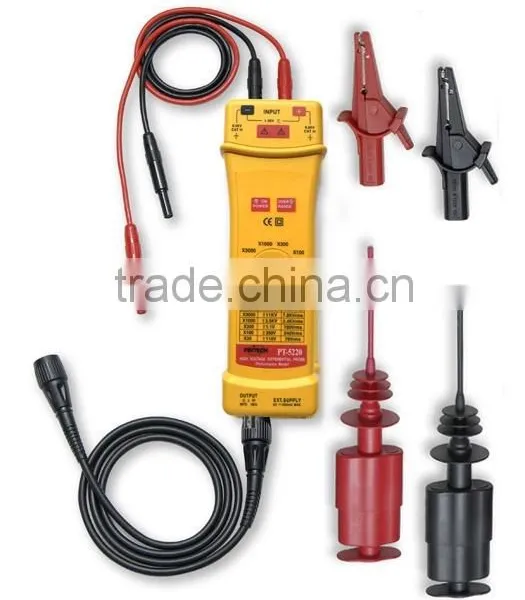

Differential Probe PT-5220 (22KVp-p,120MHz)

Differential Probe PT-5220 (22KVp-p,120MHz) thumbnail-1
Differential Probe PT-5220 (22KVp-p,120MHz) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
pintech
Model Number:
PT-5220
Contact Supplier Request Quote Chat Now
Guangzhou Dekem Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name pintech
Model Number PT-5220

Differential probe PT-5220 (22KVp-p,120MHz)





FUNCTION

Differential Voltage DC+AC peak

22KV

Bandwidth (50Ω load -3dB)

120MHz(×100 ×300 ×1000 ×3000)60MHz(×30)

Common Mode Voltage DC+AC peak

22KV

Common Mode Voltage AC/RMS

7.8KV

Range(Switchable)

5(×30, ×100, ×300×,1000×,3000

Input Impedance (Between Input)

100MΩ // 1PF

Each Input R//C

50MΩ // 2PF

Common Mode Rejection Ratio(CMRR)

60Hz>10000:1

100Hz>1000:1

1MHz>300:1

Noise(Into 50Ω Load)

no more than 1m Vrms

Accuracy

no more than ±2%

Maximum Output Voltage

no more than ±5V

Output Impedance

50Ω

Input Over Range Indicate

Any range , Input Voltage Exceed the Max. Voltage 90%

Power Auto Regulation System

DC 6~12 V

Power Source

External DC 9V/300mA

Accessories

BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220)
