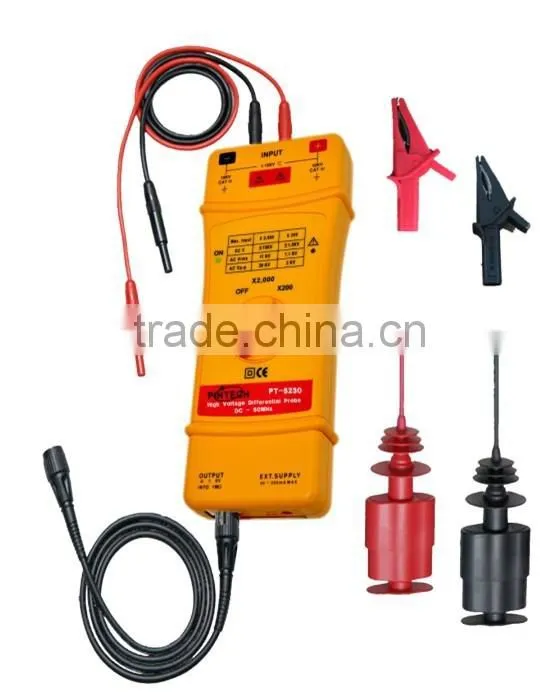

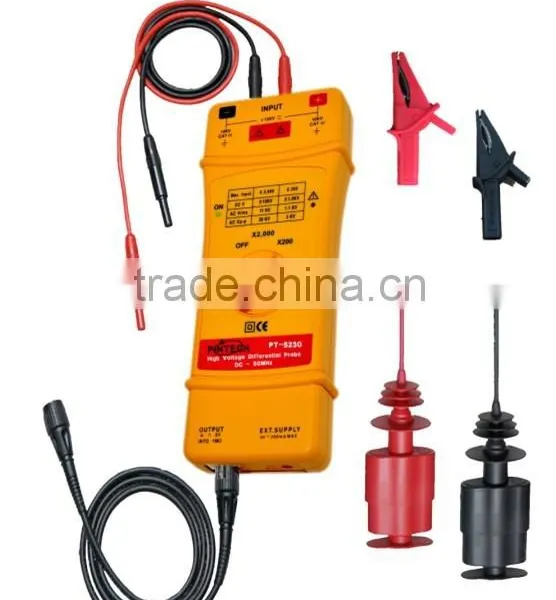

30KV High Voltage Differential Probe PT-5230(30KV,50MHz)

30KV High Voltage Differential Probe PT-5230(30KV,50MHz) thumbnail-1
30KV High Voltage Differential Probe PT-5230(30KV,50MHz) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
pintech
Model Number:
PT-5230
Contact Supplier Request Quote Chat Now
Guangzhou Dekem Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name pintech
Model Number PT-5230

30KV high voltage differential probe PT-5230(30KV,50MHz)

 30KV high voltage differential probe PT-5230(30KV,50MHz)





FUNCTION

Differential Voltage DC+AC peak

30KV

Bandwidth (50Ω load -3dB)

50MHz,X200,X2000

Common Mode Voltage DC+AC peak

30KV

Common Mode Voltage AC/RMS

11KV

Range(Switchable)

2(X200,X2000)

Input Impedance (Between Input)

40MΩ//1.3PF

Common Mode Rejection Ratio(CMRR)

60Hz>10000:1

100Hz>1000:1

1MHz>300:1

Noise(Into 50Ω Load)

no more than 1m Vrms

Accuracy

no more than ±2%

Power Auto Regulation System

DC 6~12 V

Power Source

External DC 9V/200mA

Accessories

BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220)









30KV high voltage differential probe PT-5230(30KV,50MHz)

30KV high voltage differential probe PT-5230(30KV,50MHz)30KV high voltage differential probe PT-5230(30KV,50MHz)
