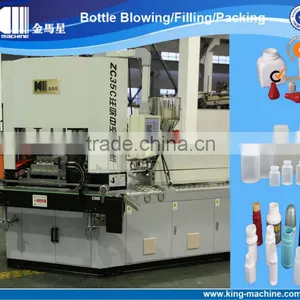

Injection Moulding Machine/ Blow Molding Machine/Injectiong Molding Machine
IBM series of three-position "Note - blowing" one-step hollow molding equipment is medicine, food industry packaging supplies the ideal choice for bottle machine.
1, the use of hot runner system and high-pressure injection molding, high availability bottle, bottlenecks and thread accuracy. Seamless products and scrap, saving raw materials, both standard and smooth surface and so on.
2, part of a single screw injection machine horizontal injection, clamping part of the horizontal three-position rotary device, multi-cavity mold can be a continuous production, high efficiency products meet GMP standard.
3, high-pressure accumulator direct protection by clamping pressure, increase productivity and save energy.
4 products automatic ejection, the flame process automation, automation of the three counts combine to ensure that products are not contaminated, the pharmaceutical industry to meet food hygiene requirements.
5, in the mechanical, hydraulic, pneumatic, electric adjustable links with many parts to ensure that different products to meet the technological requirements.
6, raw materials adaptable to forming the majority of thermoplastics.
7, the machine has low pressure mold protection, proportional pressure, proportional flow control and other functions, the use of advanced, reliable brand name hydraulic electrical components, with manual, semi-automatic and automatic operation functions.
8, mold installation and easy maintenance.
Item |
Unit |
Data |
Item |
Unit |
Data |
Dia of screw |
Mm
|
35
|
die-heating power
|
Kw
|
automation
|
|
Max. the oretical capacity
|
Cm3
|
158
|
pressure of hydraulic system
|
Mpa
|
14
|
|
Total power for cylinder-heating
|
Kw
|
6.5
|
max. working pressure of comp. air
|
Mpa
|
1.2
|
clamping force of |
Qty
|
4
|
discharge rate of compressed air
|
M3/min
|
>0.8m3/min
|
clamping force of |
Kn
|
280
|
consumption of cooling water
|
M3/h
|
3
|
|
opening stroke
|
Mm
|
120
|
dimension of machine (L×W×H)
|
Mm
|
3100×1100 ×2200
|
|
clamping force of blow mold
|
Kn |
30
|
machine weight |
T
|
approximately 2.5
|
|
opening stroke of blow mold
|
mm
|
120
|
range of formability products
|
L
|
0.003-0.6
|
|
idle time
|
S
|
3
|
height of formability products
|
Mm
|
≤145
|
|
Max. plate size of die(L*W)
|
Mm
|
300×200
|
dia of formability products
|
Mm
|
≤100
|
|
min. die thickness
|
Mm |
180
|
conveyer belt Motor power
|
Kw
|
0.1
|
|
motor power
|
Kw
|
15
|
total power
|
kw
|
25 |
