High Speed Medicine Bottle Injection Blow Molding Machine

Specifications

High speed medicine bottle injection blow molding machine
1,Function:Injection,Blowing
2,Used for:Thermoplastic
3,CE ISO

Introduction:

The injection blowing machine which injection and blowing mold on the same table, the injection and blowing at the same time, so it can produce the bottle at one step, which highly improves the production. It can produce the bottles from 3ml to 1000ml with the material HDPE, LDPE, PP, PS, and the bottles with no-flash, the surface is smooth to label, so it can be widely used in Sanitary, cosmetic, food, and drinking packing field.

Main features:

1.Adopt electro-hydraulic hybrid servo system can save 40% power than usual.
2.Apply the double vertical pole and single horizontal beam to make enough rotation space,longer bottles,make the mold installation easy and simple

Feature:
1)One step fast molding without scrap, good for continuous production meeting GMP standard;
2)Neck and thread in high precision dimension to meet various sealing requirement;
3)Smooth party lines on body and bottom for perfect surface finishing, various shape available;
4)Max. Uniformity of bottle weight, thickness and volume;
5)High speed production with multi cavities available on different bottle size;
6)Suitable material: PE, PP, PS, SAN, PETG, EVA...etc for various bottles;
7)Different method as option, big space for ease mould changing.
Mold features:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement, Enabling well close match with the bottle cap.
3. Plastic Medicine Bottle's safe thread can be molding directly, act in connect with safe bottle cap.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and
Smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
7. The cause of the production, no scrap, save the raw material.
Configuration of Injection-Blowing Machine :
1. Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle&check modular valves ): YUKEN brand Ex Japan.
2. Pneumatic valve connector: FESTO Ex Germany.
3. Hydraulic pressure hose: ISR brand Ex USA.
4. Oil seal: VALQUA brand Ex Japan.
5. Hydraulic Motor: INTERMOT brand Ex Italy or SAMUN brand.
6. Controlling system: JINGHUA brand Ex Taiwan.
7. Electronic Rulers: NOVOTECHNIK brand Ex Germany
8. Moulded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex France.
9. No fuse breaker: SCHNEIDER -MERLIN GERIN
10. Proximity Sensor: FOTEK brand Ex Taiwan.
11. Digital controller: RKC brand Ex Japan.
12. Conveyer motor: TONG WAY TEAM brand Ex Taiwan.
13. Electric Motor: Siemens brand

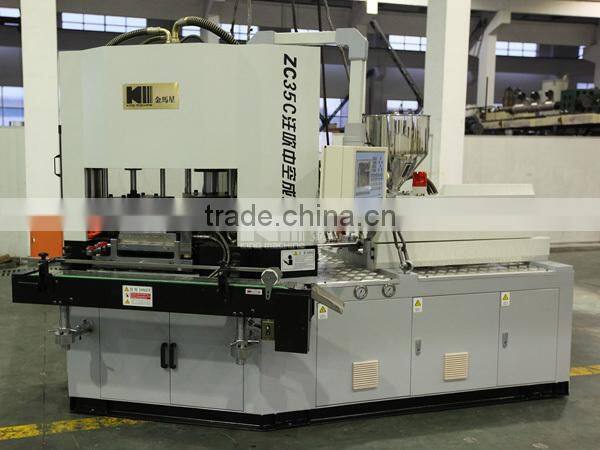

Pictures:

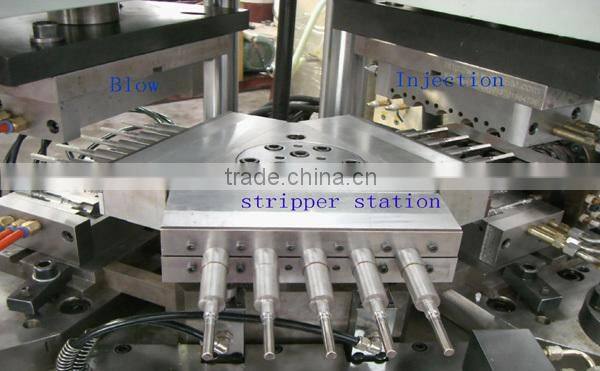

Mold:

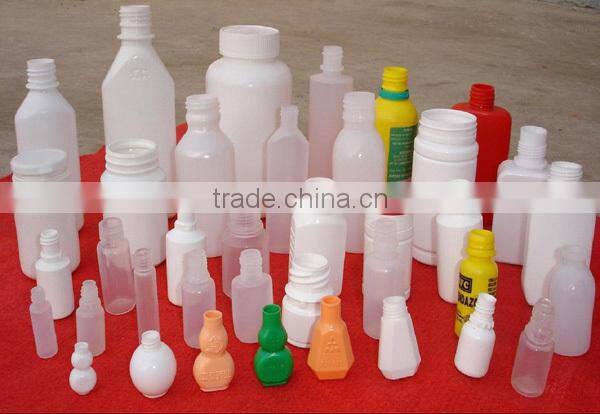

Products:
