Specifications
Automatic Small Pet bottles Blowing Machine
1.Full Automatic Blowing Machine
2.Used for PET bottle
3.Bottle Making Machine
4.CE,ISO
Automatic Small Pet bottles Blowing Machine
KM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: Automatic and manual.
10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low costhigh efficiencyeasy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to installtest and start up.
14). Low rejection rate: Less than 0.2 percent.
| Model | KM-A4 | |
| Productivity | Depend on bottle design | 3200-4000PCS/H |
| Product type | Body diameter | 20mm-100mm |
| Height | 50mm-350mm | |
| Neck diameter | 15mm-38mm | |
| Mold | Cavity | 4cavities |
| Mold thick | 240mm | |
| Mold | 500*500mm | |
| Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
| Rated Power | 49kw | |
| Really use power | 14kw | |
| Air source | LP air compressor | 1.6m3/min 1.0MPa 1set (15KW) |
| HP air compressor | 1.0m3/min 3.0MPa 2sets (each set 11KW) | |
| Air dryer | 2.0m3/min 3.0MPa 1set | |
| Cooling water | Cooling water | 15L/min |
| Size | L*W*H | 1908*1858*1920mm |
| Weight | 3600kg | |
| preform unscrambler | L*W*H | 2000*950*2480mm |
| Weight | 250kg | |
| Resin available | PET | |

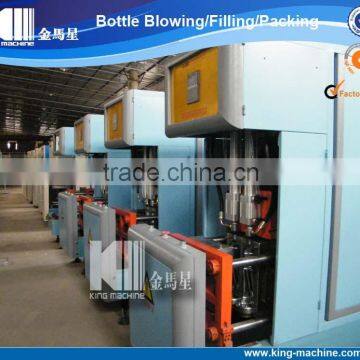

Detailed Photos:
PET PREFORM and MOULD

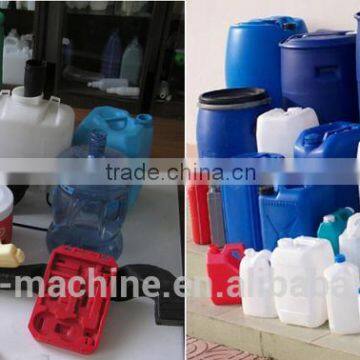

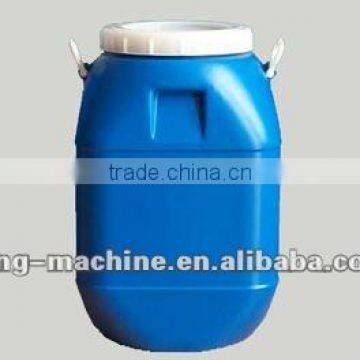

Products:
1.Your inquiry related to our product & price will be replied within 24hours
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
4.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
5.Your business relationship with us will be confidential to any third party.
6.Good after-sale service offered, please get back if you got question.
Company Name:Zhangjiagang King Machine Co., Ltd.
Address:No.1 Haixin North Road, Electromechanical Economic Development Zone, Nanfeng Town, Zhangjiagang City, Jiangsu Province, China.
Website: / http://kingmachine.en./
Certification:
How to get your suitable machine or production line ?
•Find our products through Kingmachine Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, etc.
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
