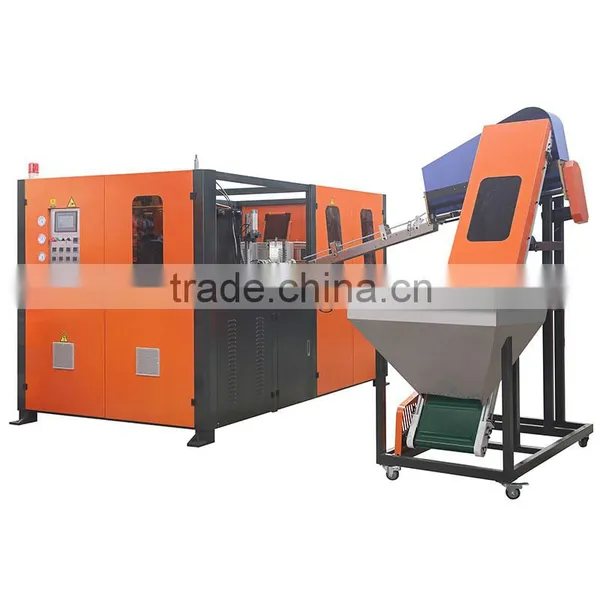

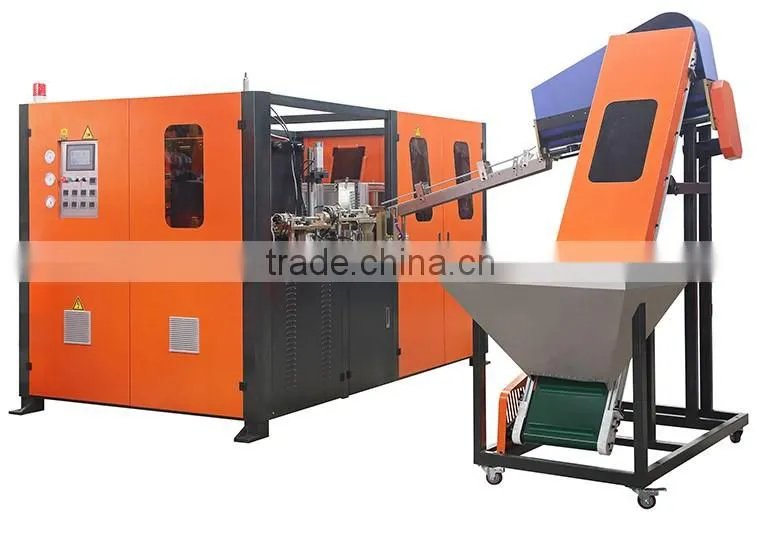

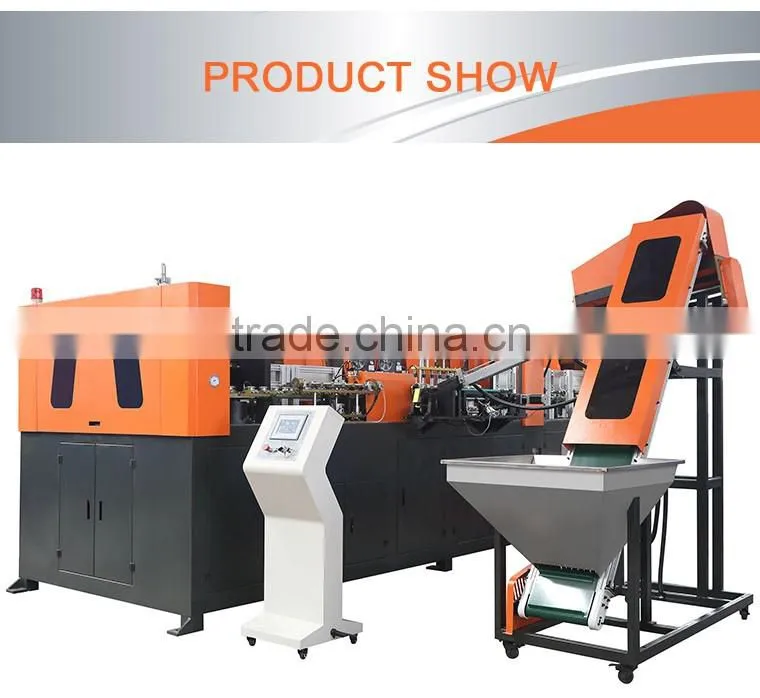

Unique Design Used Blow Moulding Machine
Product Name |
Unique Design Used Blow Moulding Machine |
Item Type |
Bottle Blowing Machine |
Place of Origin |
Jiangsu, China (Mainland) |
Model |
KM-A4 |
Productivity |
3200-4000PCS/H, depend on bottle design |
Product type | |
Body diameter |
20mm-100mm |
Height |
50mm-350mm |
Neck diameter |
15mm-38mm |
Mold | |
Cavity |
4cavities |
Mold thick |
240mm |
Mold |
500*500mm |
Main machine power | |
Electrical source power |
380v 3Phase /220v 3Phase 50/60HZ |
Rated Power |
49kw |
Really use power |
14kw |
Air source | |
LP air compressor |
1.6m3/min 1.0MPa 1set (15KW) |
HP air compressor |
1.0m3/min 3.0MPa 2sets |
Air dryer |
2.0m3/min 3.0MPa 1set |
Cooling water |
15L/min |
Size | |
L*W*H |
1908*1858*1920mm |
Weight |
3600kg |
preform unscrambler | |
L*W*H |
2000*950*2480mm |
Weight |
250kg |
Resin available |
PET |
Certification |
CE SGS ISO |
Warranty |
1 year |
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

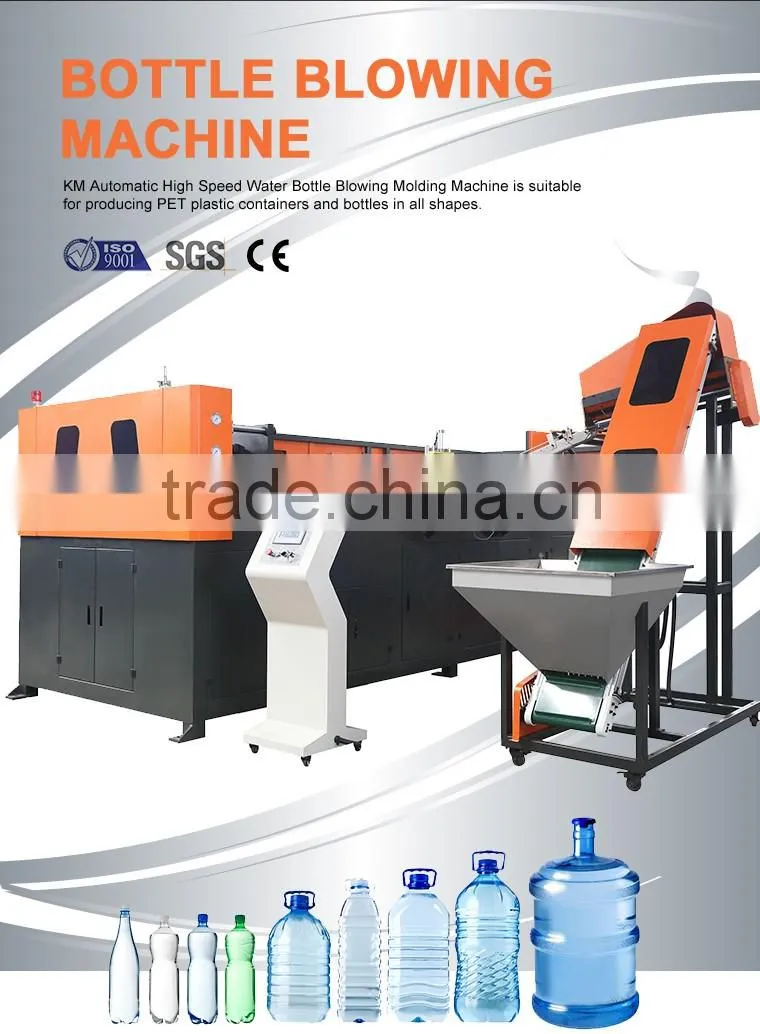

KM Automatic High Speed Water Bottle Blowing Molding Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1). Stable performance with advanced PLC.

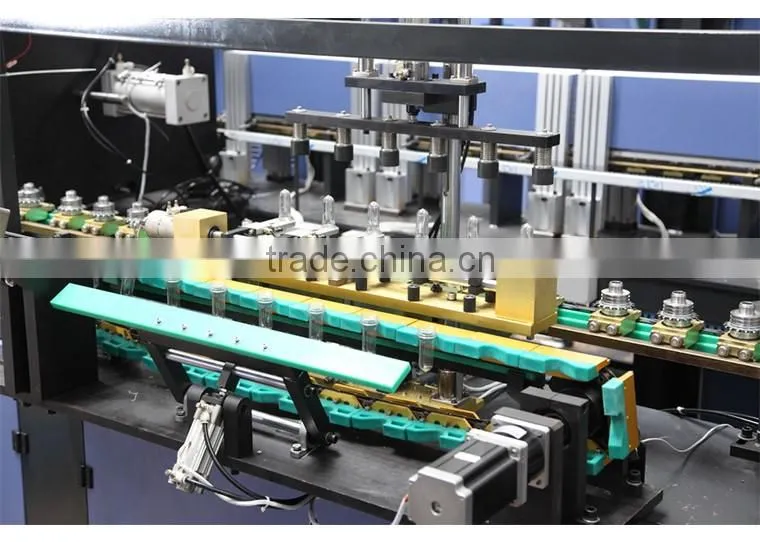

2). Automatic preform conveyer to save human cost.

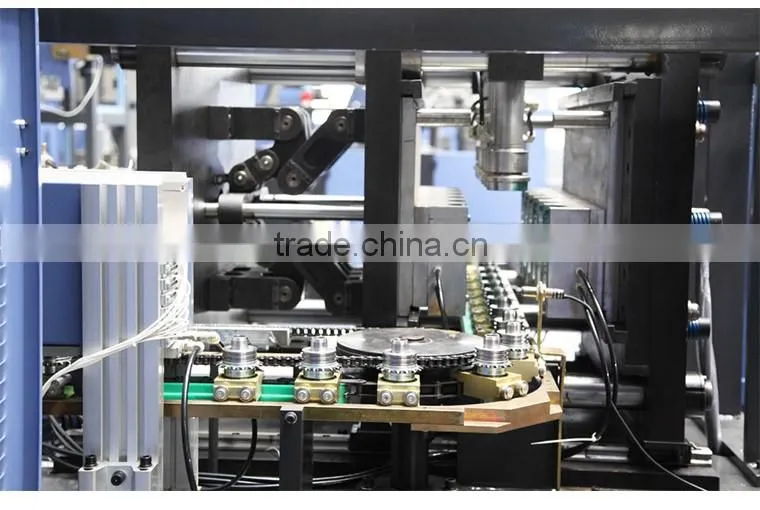

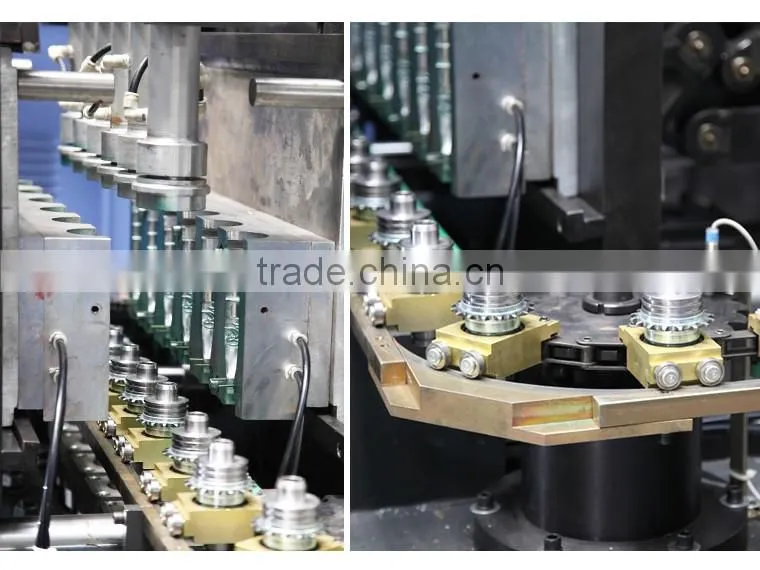

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low costhigh efficiencyeasy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to installtest and start up.
14). Low rejection rate: less than 0.2 percent.

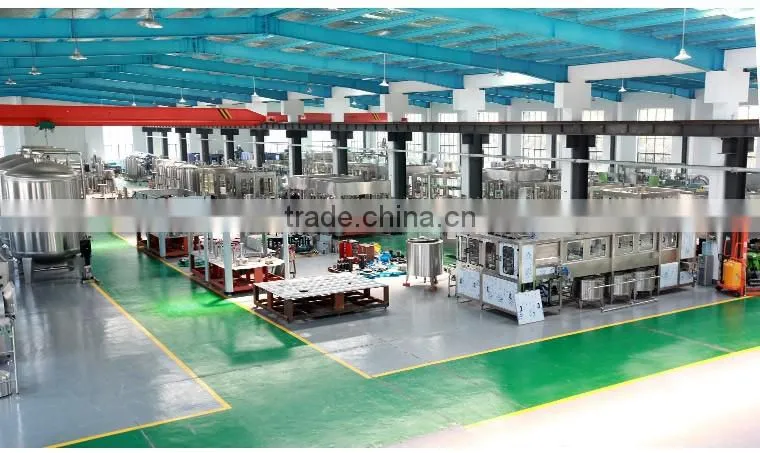

Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
