300mesh cao powder classifier and Powder Concentrator for lime milk plant
- 10 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
- jaw crusher wear part,jaw plate, side plate.bearing
- Hot Sale Super-fine Rotor Style Powder Separator
- PC series box hammer crusher machine for crushing machine
- PC600 box-type breaker from china professional manufacturer for limestone, rock, gypsum, coal and gangue
- box crusher/Box-type breaker
- 4YA2460 Circular vibration screen with high quality in Shanghai
Product Details
Condition: | New | Type: | Gravity Separator | Production Capacity: | 10tph |
Place of Origin: | Shanghai, China | Brand Name: | dingbo | Model Number: | T150 |
Voltage: | 380V,60HZ | Power(W): | 18.5KW | Weight: | 4.5T |
Certification: | CE ISO | Warranty: | 3 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
The products will be processed to be rustproof and moisture proof before delivery.
The small parts are packed into wooden crates and the big parts are wrapped by plastic sheeting.
Product Description

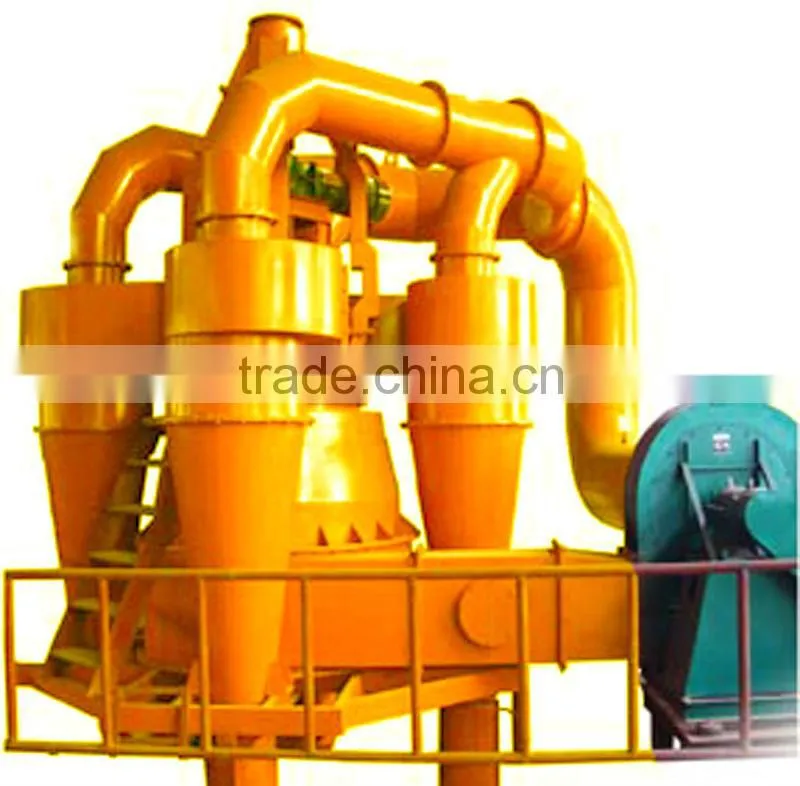

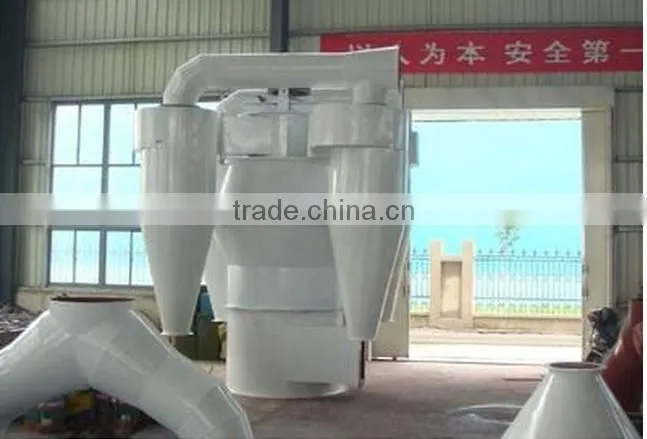

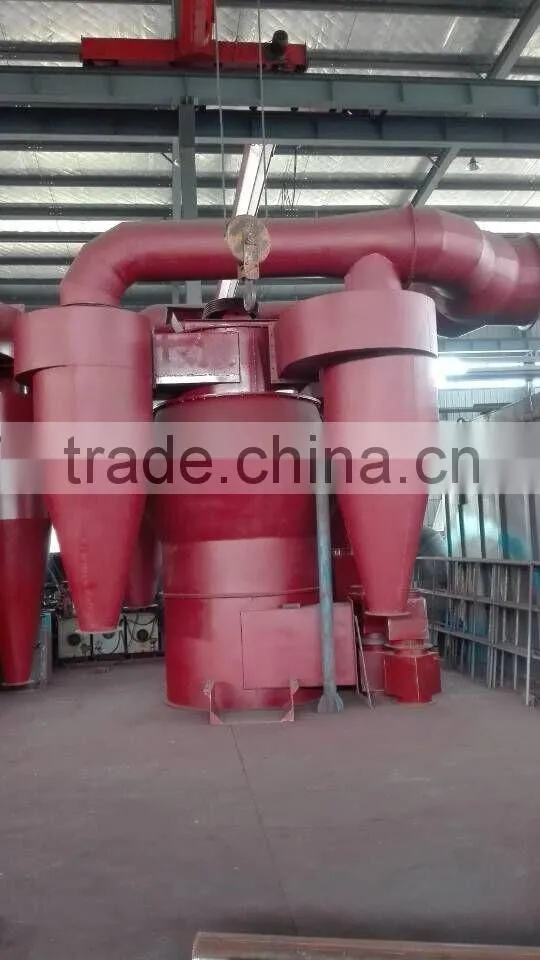

Powder Concentrator
T-Sepax high efficiency separator is our company on the basis of the international most advanced selection principle of powder machine, using aerodynamics. Not only absorbed the classification has the advantages of a O-Sepa powder selecting machine, and retained the traditional powder selecting machine characteristics of positive pressure working state by using four cyclone dust collector to collect the finished product, so the product system simple configuration, low investment, and can greatly improve the capacity of the mill. Its internal structure is reasonable, the selection of powder machine effect is remarkable, it is the first choice to improve the production of cement grinding system after the new standard of cement.
technical data
Model | finenessR0.045(%) | airflow(m³/h) | speed(rpm) | motor power(kw) | capacity(t/h) |
T250 | 5~15 | 16000 | 250~500 | 15 | 8~15 |
T350 | 5~15 | 22000 | 220~450 | 18.5 | 13~25 |
T500 | 5~15 | 30000 | 180~400 | 22 | 22~35 |
T750 | 5~15 | 45000 | 160~340 | 30 | 30~45 |
T1000 | 5~15 | 60000 | 130~300 | 30 | 40~60 |
T1250 | 5~15 | 75000 | 130~260 | 37 | 55~70 |
T1500 | 5~15 | 95000 | 120~240 | 45 | 65~85 |
T2000 | 5~15 | 120000 | 110~200 | 55 | 85~110 |
T2500 | 5~15 | 150000 | 110~180 | 75 | 110~135 |
T3000 | 5~15 | 180000 | 110~160 | 110 | 130~160 |
T3500 | 5~15 | 210000 | 100~150 | 132 | 150~180 |
T4000 | 5~15 | 240000 | 100~150 | 160 | 170~205 |
T4500 | 5~15 | 270000 | 90~140 | 200 | 195~230 |
T5000 | 5~15 | 300000 | 90~140 | 220 | 220~260 |

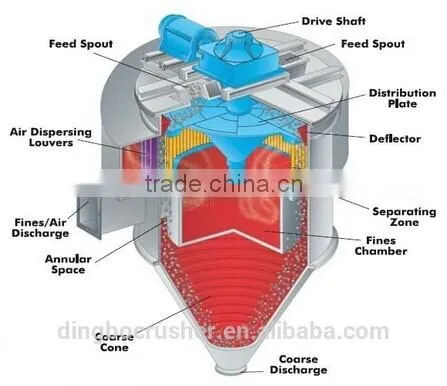

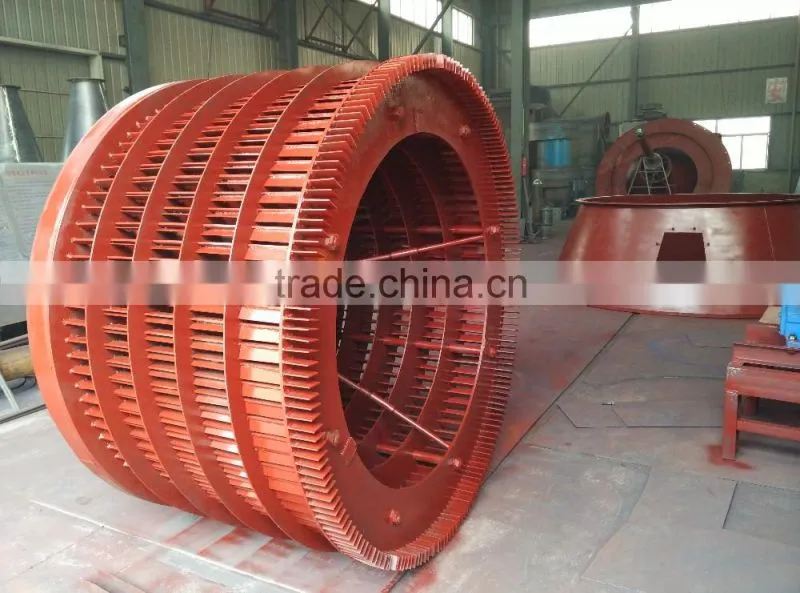

rotor
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
Pre-sales Service:
The wide product range enables us to provide our customers with individual machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliablesolutions, and we produce strictly follow customers’ order. What’s more, every customer has the chance to visit the working machine in the site before placing the order.
Most of the visiting foreign customers feel inconvenient for the first time. Due to this condition, we help to arrange cars, hotels, and translators for every visiting customer.
SHANGHAI DINGBO HEAVY MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 10 years, we devote to producing mining equipments, benefication plant and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
- Description:

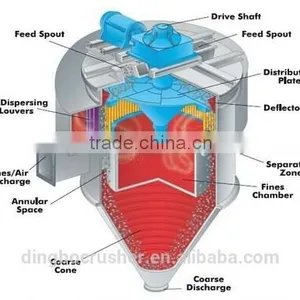

Powder Concentrator is mainly used for raw material & clinker classifying and setting up close-circuit grinding system with the tube mill. It is widely used our in cement, chemical, metallurgical and other industries.
- Features:
1. Innovative design: With new-style assembled design method, it is integrated with advantages of original centrifugal type, cyclone type and double rotor type, which greatly lower the energy consumption.
2. High efficient and low energy consumption: Materials are classified in several classifying areas, with unique distribution structure. It can make excellent powder-selection with high efficiency of over 85%. And the electrical power consumption is 30% lower than the traditional powder selector cost
3. Adjusting standard: This machine effectively improve the grain grade of final product, and enhance the cement quality to adjust to national new cement standard.
4. Condensation resistant: With available condensation resistant design, it can in seasoned with the southern's high moisture and northern's cold climates.
- Technical Parameter:
Picture:
- Certifications:
Picture for the final Powder products
1. We are Manufacturer (Not Dealer):
- we are the factory with lower price, good quality and assured full after service.
2. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
- What is the type and size of raw material?
- What is the capacity per hour do you need?
- what is raw material feedsize and expected finished size ??
3 Helpful hints
- Operate the equipment have to be technically trained to know the principle and rules of operation. Someone should be specially selected and put in charge of the operation.
- To ensure normal operation of the equipment, a manual containing strict rules and procedures for its operation, maintenance and repair should be well prepared and followed. Tools, replacement parts for maintaining, repairing and lubricating oil and grease must be available for immediate use.
How to contact us?
Welcome to visit our factory. Send your Inquiry Details in the Below, Click "Send" Now!

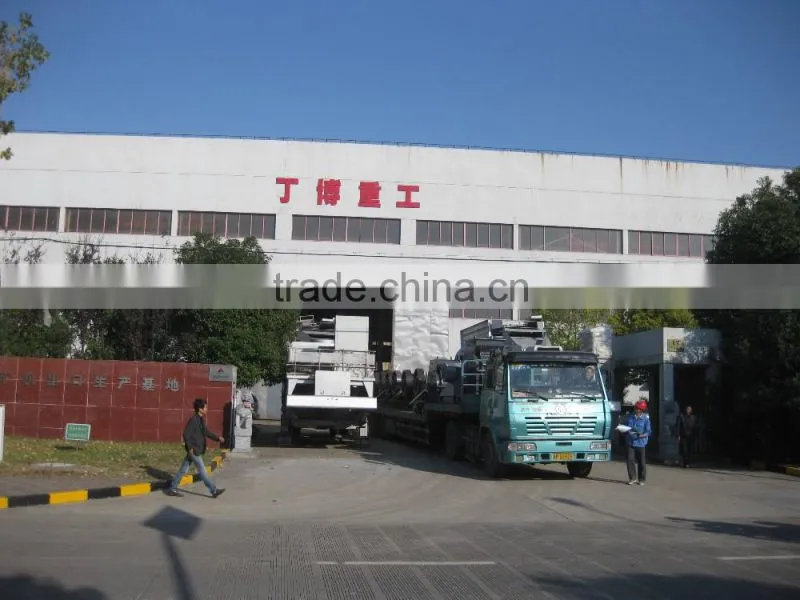

Company Profile
Shanghai Dingbo Heavy Industry Machinery Co., Ltd., located in Pudong New District of Shanghai, China, is a large enterprise specialized in the research, manufacture and sales of stone crushing and screening plants,coarse grinding mill and ultrafine powder mill equipments, covering an area of forty thousand square meters.
As one of the pioneer manufacturers, we have been engaged in crushers and micron grinding mills for over 20 years. And we still insist on the communication and cooperation with prestigious scientific research institutions to strengthen the ability in machinery design, production, maintenance, testing and reform. With several years' efforts, Dingbo now grows to be a first-class manufacturer of machineries with a complete advanced production system for superb equipment.
