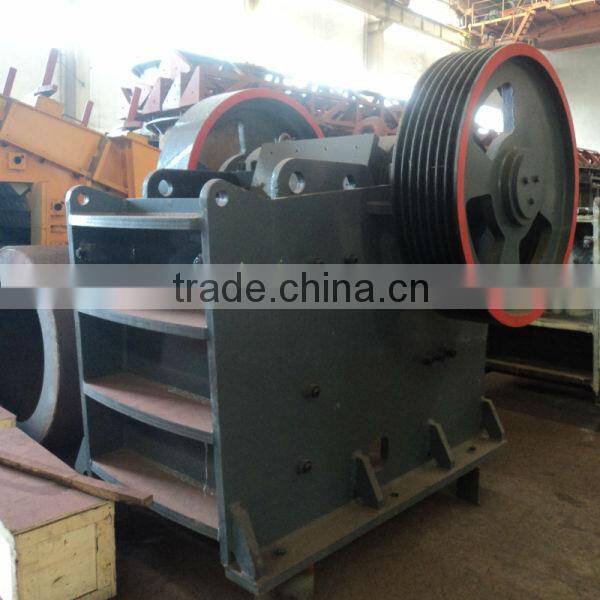

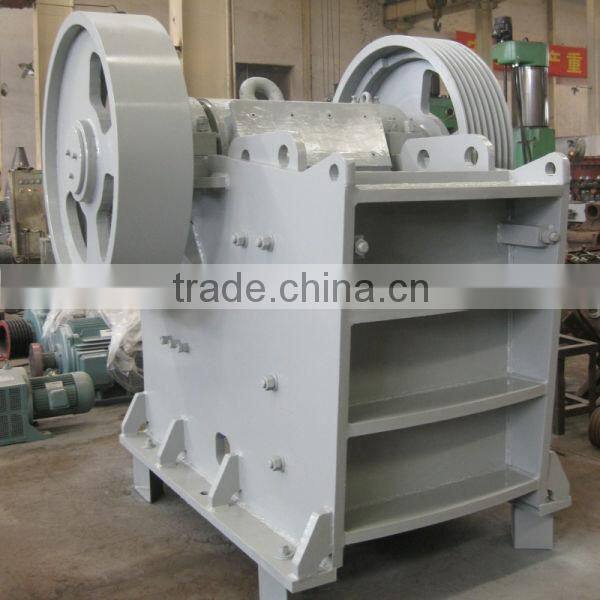

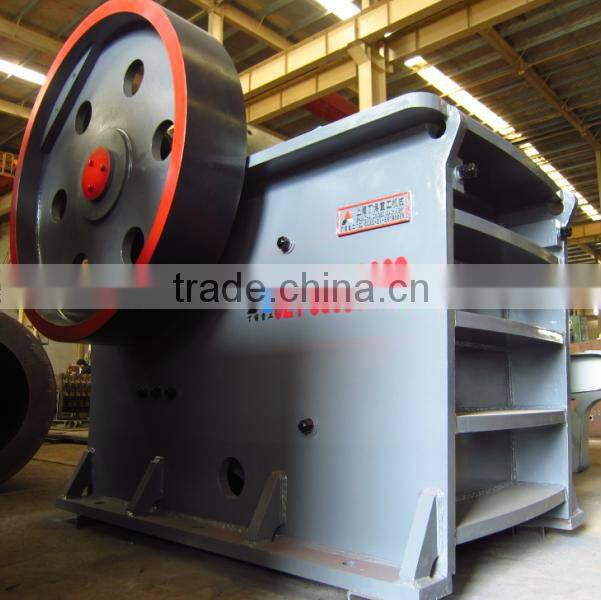

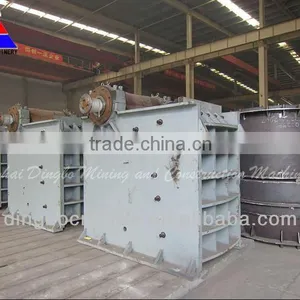

Dingbo Hard Rocks Jaw Crusher :
This series of jaw crusher have features of big crushing ratio,uniform product size,simple structure,reliable work,easy maintenance and low cost. It is widely used in stone mining, metallurgy industry,building material,highway,water conservancy and chemical industries. Various material with compression resistance less than 320MPa can be crushed.
This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 320Mpa, suitable for primary crush.Jaw Crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
Stone Jaw Crusher:
Jaw crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece. This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 320Mpa, suitable for primary crush.Jaw Crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
Advantages and Features:
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
4. The broken cavity is deep and without dead zone, increased capacity and output feed;
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
6. The outlet employs pad-style adjustment devices, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;
Models:
Model |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Adjustment Range of Discharge Openin (mm) |
Capacity (t/h) |
Electric Motor(kw) |
Overall Dimension(mm) |
Weight (t) |
|||
PE250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1450×1315×1296 |
2.8 |
|||
PE400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
6.2 |
|||
PE500×750 |
750×500 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
11 |
|||
PE600×900 |
900×600 |
500 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
16 |
|||
PE750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
29 |
|||
PE900×1200 |
900×1200 |
750 |
220-500 |
200-400 |
132 |
3380×2870×3330 |
54.5 |
|||
PE1000×1200 |
1200×1000 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
58 |
|||
PE1200×1500 |
1500×1200 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
100.9 |
|||
Siemnes Motor Used:
In order to gurantee the quanlitity, the SIEMENS MOTORS are applied
Welcome to contact us!
Trust your judgments and look forward to your selection. I wish our cooperation a pleasant one!
