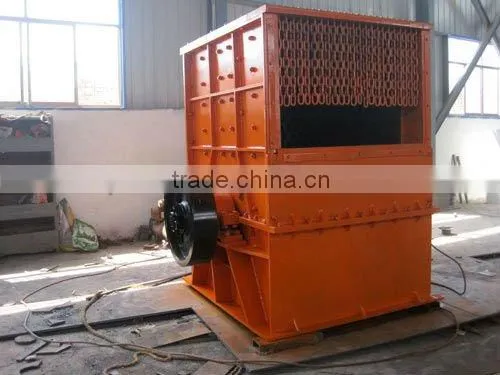

hammer crusher manufacture , wheat hammer crusher ,box hammer crusher
- 30 Set / Sets per Month
- Shang hai
- D/P D/A
Product Details
Condition: | New | Type: | Other | Motor Type: | AC Motor |
Power(W): | 40000-132000 | Capacity(t/h): | 30-160 | Place of Origin: | Shanghai, China |
Brand Name: | DINGBO | Model Number: | PC600 | Weight: | 4.2-8.3t |
Certification: | ISO CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
The products will be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates and the big parts are wrapped by plastic sheeting.
Product Description
- Description:

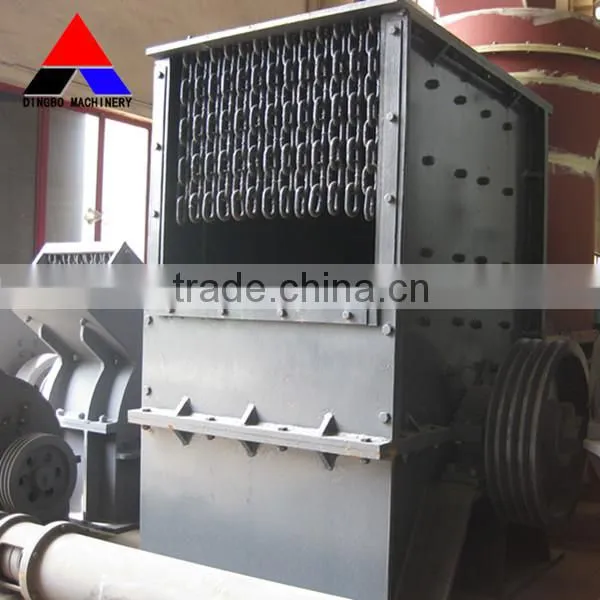

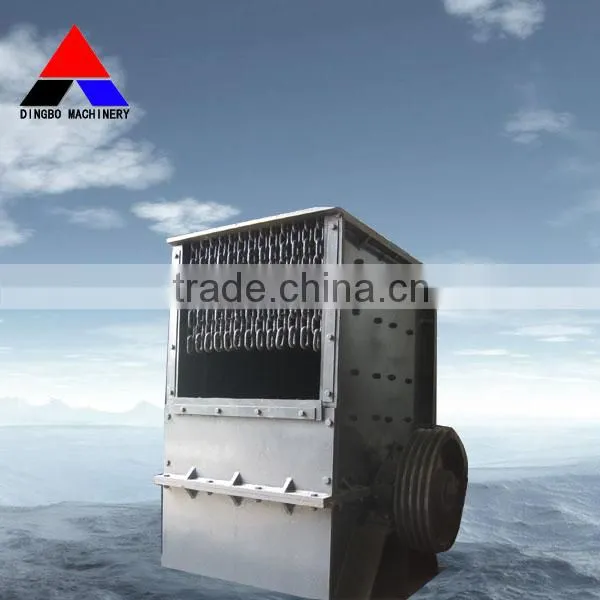

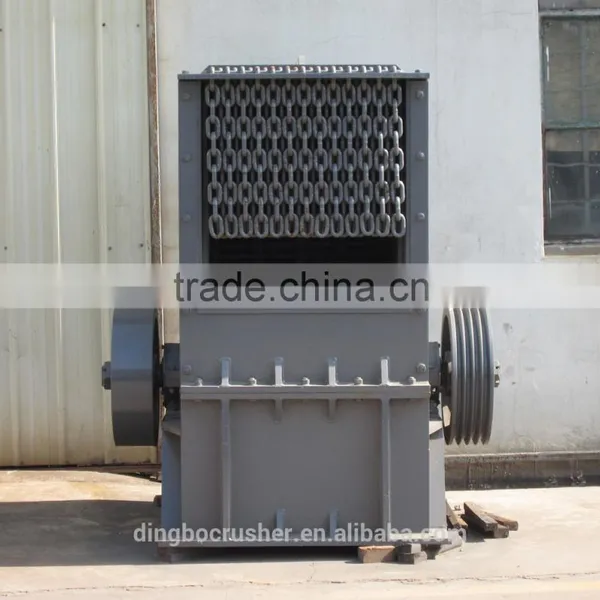

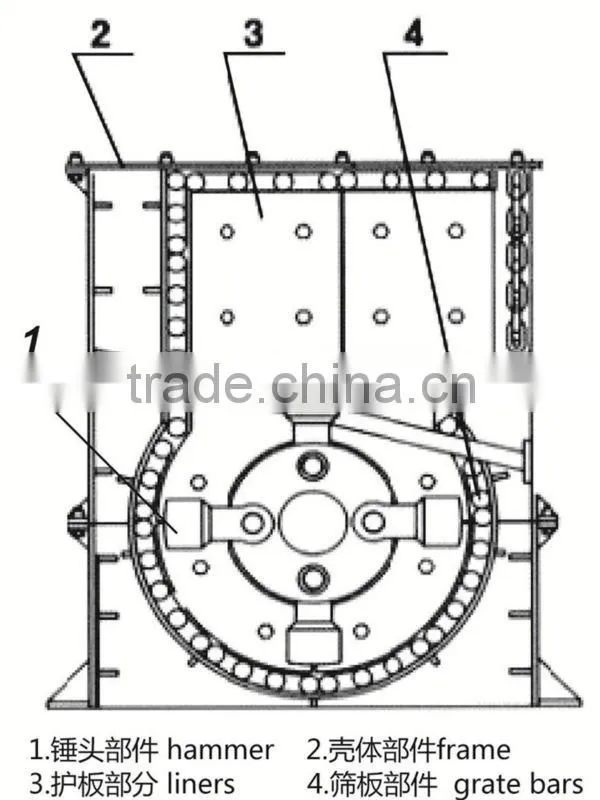

1. The box-type breaker is also calledbox-type hammer crusher. It increases the feeding space on the basis of the original hammer crusher.
2. The new type hammer crusher can crush edge length 450-1400mm material into a 120mm size ore powder, but doesn’t plugging.
3. The box-type breaker can be used as a secondary crushing, is mainly used in mining, cement, building materials, chemicals and other industries. Box-type breaker uses to crush the materials such aslimestone, rock, gypsum, coal and gangue that the compressive strength not up to 200MPA.
4. Besides the box-type breaker is necessary equipment for crushing stones. Box-type breaker is an improved product to hammer crusher, when the raw material revolves, the material is counterattacked or hammer blow in the crushing cavity, and against each other, increasing the staying time of raw material, making more raw powders.
5. The box-type breaker is especially suitable for broking the powder materials, such as coal shale, limestone, gypsum etc.
- Advantages and Features:
1. High capacity. Box-type hammer crusher can crush edge length 450-1400mm material into a 120mm size ore powder, but doesn’t plug.
2. High-efficiency. The feeding space is bigger, and the stay time of the raw is longer.
3. Box-type breaker is able to classify the ore particle size according to customer requirement exactly.
4. Mechanical property is stable and reliable.
- Specification:
Model(Feeding Size) | PC600 | PC800 | PC1000 | PC1200 |
Rotating(r/min) | 600-800 | 650-750 | 650-750 | 600-750 |
Max Feeding Size(mm) | 550 | 780 | 780 | 800 |
Discharge size(mm) | Max50 | Max50 | Max50 | Max100 |
Capacity(t/h) | 30-50 | 40-80 | 50-100 | 100-160 |
Power(kw) | 40-55 | 75-90 | 90-110 | 110-132 |
Weight(kg) | 4200 | 4800 | 6500 | 8300 |
Company Profile
Shanghai Dingbo Heavy Industry Machinery Co., Ltd., located in Pudong New District of Shanghai, China, is a large enterprise specialized in the research, manufacture and sales of stone crushing and screening plants,coarse grinding mill and ultrafine powder mill equipments, covering an area of forty thousand square meters.
As one of the pioneer manufacturers, we have been engaged in crushers and micron grinding mills for over 20 years. And we still insist on the communication and cooperation with prestigious scientific research institutions to strengthen the ability in machinery design, production, maintenance, testing and reform. With several years' efforts, Dingbo now grows to be a first-class manufacturer of machineries with a complete advanced production system for superb equipment.
Our popular products include:
1) Stone crushers: jaw crushers, hammer crushers, impact crushers, roller crushers, cone crushers, fine stone crushers, vertical combination crushers, vertical impact crushers and so on.
2) Grinding mills: ball mills, cement mills, ceramic mills, raymond mills, micropowder mills and so on.
3) Ore beneficiation machines: magnetic separators, flotation machines, spiral chutes, spiral classifiers, shaking tables, mixed barrels, jiggers, centrifugal separators and so on.
4) Screens: vibrating screens, drum screens, rotary screens, linear screens and so on.
