Specifications
Grinding Mill TypeCredible and Trustable
1.capacity:30-60t/
2. high crushing ratio
3.100% passing ratio for 3mm
Feldspar hammer crusher for building stone,rocks
Feldspar is the most common ore in the earth crust and it even appears on the moon and in the aerolite.In some parts of the earth crust, 15km under the earth’s surface, feldspar accounts for 60%. Feldspar is the main component of igneous and is also common in metamorphic rock and sedimentary rock.
Feldspar is one silicate minerals which contains calcium, sodium and potassic. Populary speaking, feldspar is divided into two kinds: orthoclase (potash feldspar) and anorthose. The difference between them is the splitting included angle, orthoclase 90 degree and anorthose smaller than 90 degree.
Feldspar Application
As a material of glass making, feldspar is also used as ceramics industry raw materials, this part takes 30% of the whole dosage. Other feldspar is used in chemical, abrasives and electrode industry.
- Glass flux: feldspar is the main ingredient of blended materials in the production of glass. Feldspar is high-Al2O3 content and can het melted at lower melting point than alumina. It can deduce glass melting point and increase the total alkali.
- Ceramic body ingredient: feldspar works as backbone materials before calcination and deduces the contract and transformation because of dry, improve arid performance and short drying time. It can also improve the light-admitting quality of ceramic body.
- Glazing: glazing is mainly made up with feldspar, quartz and clay. And feldspar accounts for 10%-35%. Potash feldspar is the main raw materials in ceramic industry.
- Enamel materials: feldspar is the main gradient of enamel and takes up 20%-30%.
- Feldspar is also used as cementing agent in industries like abrasive
Dingbo Feldspar Crusher is widely used in metallurgy, mining, chemical,cement coal ,dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation.
Barite Crusher is a kind of new high-tech mill machine to meet the requirements of coarse powder processing customers. The Hammer Crusher or Coarse Powder Grinding Mill is developed based on our experts' rich experience in the milling industry and considering recommendations and requirements of domestic and foreign clients. It is the ideal equipment to replace Raymond Mill, ball mill, and other traditional mill which only process fine powder materials. It is high-efficiency equipment and widely applied in quartz sand, silica sand, foundry sand, fine sand and other sand abrasive industry. By being a component of closed production lines, it can produce various size products of better effect.
Advantages and Features for Feldspar Crusher :
1.the production capacity, high crushing ratio;
2.low power consumption, uniform particle size;
chanical structure is simple, compact and lightweight;
4.low investment costs, management, and convenient.

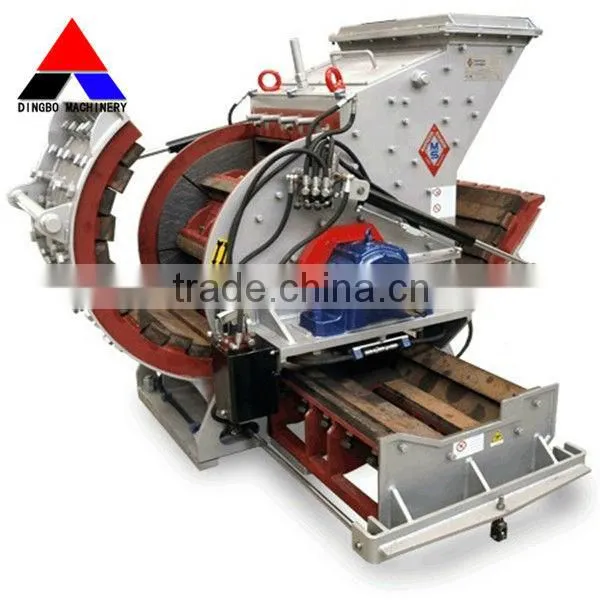

Working Principle of Feldspar Crusher :
the Hammer Crusher or Coarse Powder Mill casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
Feldspar Crusher Technical Specification:
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor Diameter (mm) | 750 | 900 | 1150 |
| Rotor Length (mm) | 800 | 1200 | 1500 |
| Rotor Speed (r/min) | 800-1000 | 800-1000 | 550-800 |
| Inlet size (mm) | 320×930 | 400×1200 | 500×1500 |
| Max. Feeding Size (mm) | <50 | <50 | <100 |
| Outlet Size (mm) | 0-3 | 0-3 | 0-8 |
| Capacity (t/h) | 10-30 | 30-60 | 60-100 |
| Power (KW) | 75 | 90 | 132 |
| Overall Dimension (mm) | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
