450-550TPH HARD STONE CRUSHING PLANT
This crushing plant is used to crush hard stone (like: Granite, basalt, river stone, etc.) from <1000mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
With it, Liming can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency.
NO. |
Equipment |
Model |
Max. Feeding Size (mm) |
Motor(KW) |
Number |
I |
Vibrating Feeder |
GZD1500X6000 |
800 |
30 |
1 |
II |
Jaw Crusher |
PEW1100 |
940 |
185 |
1 |
III |
Vibrating Feeder |
GZG100-4 |
|
|
1 |
Cone Crusher |
CSB240(C) |
1650 (5 1/2')Dia. mm (feet) |
240 |
2 |
|
V |
Vibrating Screen |
4YZS2160 |
100 |
30 |
1 |
Belt:B500×10m, B1400×28m, B1200×36m, B1200×26m, B800×27m, B800×18m, B800×18m, B6500×15m, B650×15m | |||||
Raw material under 1000mm is fed into primary jaw crusher PE1200*1500 via vibrating feeder GZD1500*6000. Wastes screened out by grizzly bar on the vibrating feeder and be transported to designated place via belt conveyor.
Stuff from jaw crusher PE1200*1500 is transported to stock pile via belt conveyor.
Stuff from stock pile is fed into two sets secondary European type cone crusher HPC400(c) via two sets feeder GZG120-4 and belt conveyor.
Stuff from European type cone crusher HPC400(c) is fed into two sets vibrating screen 4YZS2460 via belt conveyor.
After screening, eligible stuff is transported to final products pile via belt conveyor.
Ineligible stuff is transported to European type cone crusher HPC400(c) for recrushing.

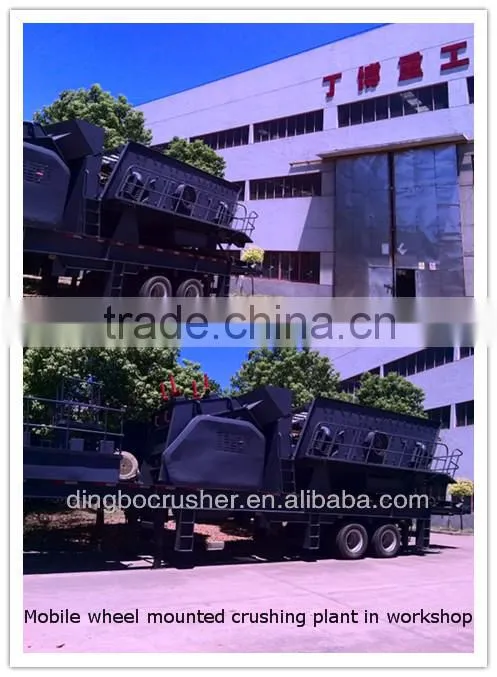

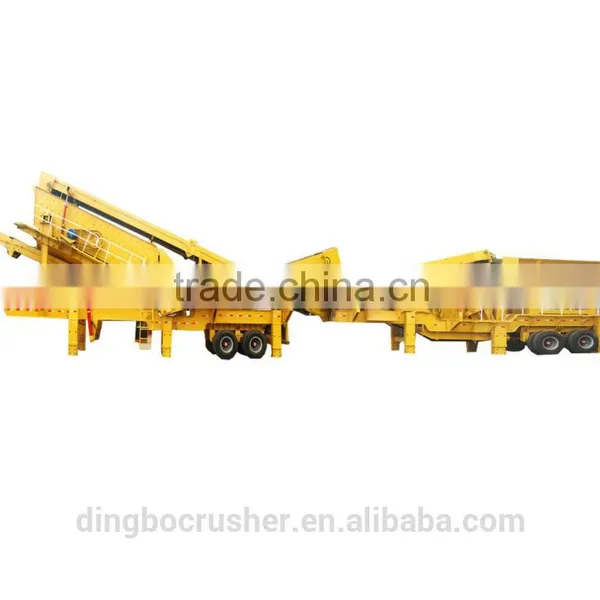

Portable Crushing Plant Technical Specifications:
| Parameter model | Transport length (mm) | Transport height (mm) | Transport width (mm) | Max. height (mm) | Max. width (mm) | Belt conveyor height (mm) | Total weight (ton) |
| YF938J69 | 11200 | 3900 | 2450 | 4700 | 2900 | 2600 | 42 |
| YF1142J710 | 13000 | 4400 | 2450 | 5100 | 3100 | 2600 | 55 |
| YF1349J912 | 15000 | 4800 | 3000 | 5600 | 3300 | 2800 | 72 |
| Parameter model | Feeder spec | Jaw crusher | Belt conveyor | Extended belt conveyor | Generator | Capacity (t/h) | Power (kw) |
| YF938J69 | GZD-960X3800 | PE600X900 | B650X7M | Optional | Optional | 70-150 | 91.5 |
| YF1142J710 | GZD1100X4200 | PE750X1060 | B800X9M | Optional | Optional | 90-200 | 134 |
| YF1349J912 | GZD-1300X4900 | PE900X1200 | B1000X11M | Optional | Optional | 150-300 | 146 |
CE ISO Configuration Customer visiting us dingbo Dingbo workshop
