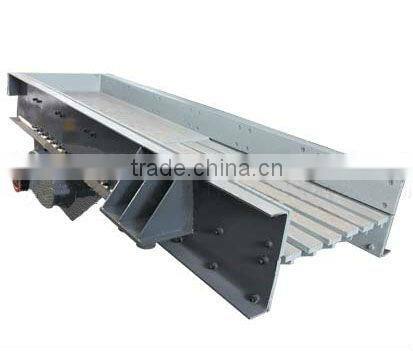

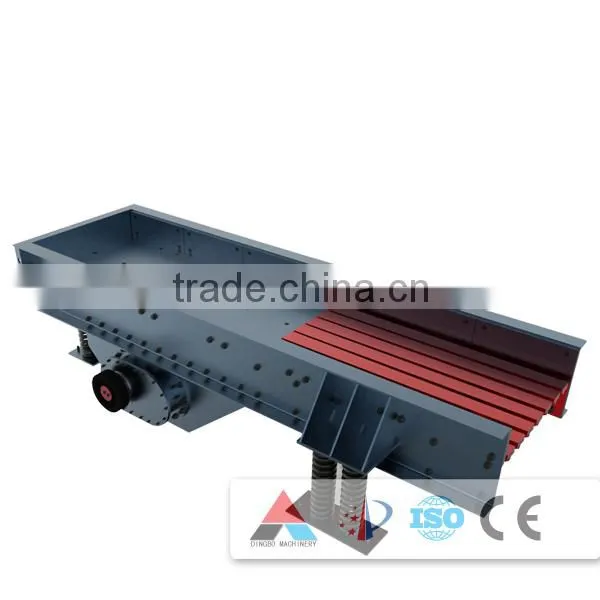

Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding.
They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants. In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time,
it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc. Working Principle Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged.
When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.
Features and Advantages
1. stable and long span life
2. easy to adjust
3. reliable operation.
4. easy maintenance.
5. no pollution Specification
| Model | Feeding Chute | Max. Feeding | Capacity | Motor Power | Weight | Overall |
| Size (mm) | Size (mm) | (t/h) | (kw) | (kg) | Dimension (mm) | |
| GZD-750×2500 | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580×1100×1400 |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 2X2.2 | 3895 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
| GZD-1500×6000 | 1500×6000 | 800 | 500-700 | 30 | 8670 | 6082×2995×2095 |
