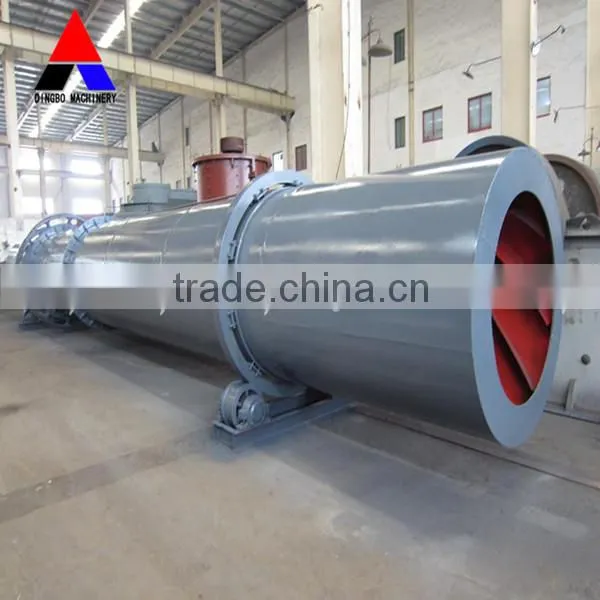

Rotary Drum Drier
Description:
The rotary drier is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary drier has a better adaptability and can dry various materials with a simple and reliable operation.
Working principle:
1. Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others.
2. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder.
3. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Advantages and Features:
1,Negotiable price .
2,Customized products .
3,Suitable for limestone,lignite etc.
4,Highest inlet air temperature:700.
Technical parameter
| Model(mm) | Slope(%) | Rotation(r/min) | Highest temperature(°C) | Power(kw) | Capacity(t/h) | Weight(t) |
| Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
| Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
| Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
| Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
| Φ2000×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 8-20 | 36 |
| Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-20 | 53.8 |
| Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-25 | 56 |
| Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
| Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
| Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
