laser engraving cutting machine
Model |
YN1309X(H)2H(M) |
YN1610X(H)2H(M) |
YN1530(H)2H(M) |
Working Area |
1300*900mm |
1600*1000mm |
1500*3000mm |
Laser Power |
60w/80w/100w/130w//150w |
||
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
Cooling Type |
Water Cooling |
||
Engraving Speed |
0-60000mm/min |
||
Cutting Speed |
0-40000mm/min |
||
Laser Output Control |
0-100% Set by Software |
||
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
Highest Scanning Precision |
4000DPI |
||
Locating Accuracy |
≤+0.01mm |
||
Controlling Software |
DSP Control System |
||
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
Color Separation |
Yes |
||
Drive System |
High-precision 3-phase Stepper Motor |
||
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
laser engraving cutting machine Advantages:c laser engraving machine price
1.Adopt imported linear guiding system and ensure machine long lifespan
2.The optical lens adopt high intensity gilding silicon and non sphere focusing lens, so the lens can endure the scrubs and high temperature, needn't to be changed, thus reduce resuming cost.
3.Adopt DSP control system, and moves smoothly.
4.The laser tube adopts compulsive water cooling system, cooling chiller can control temperature automatically.(optional)

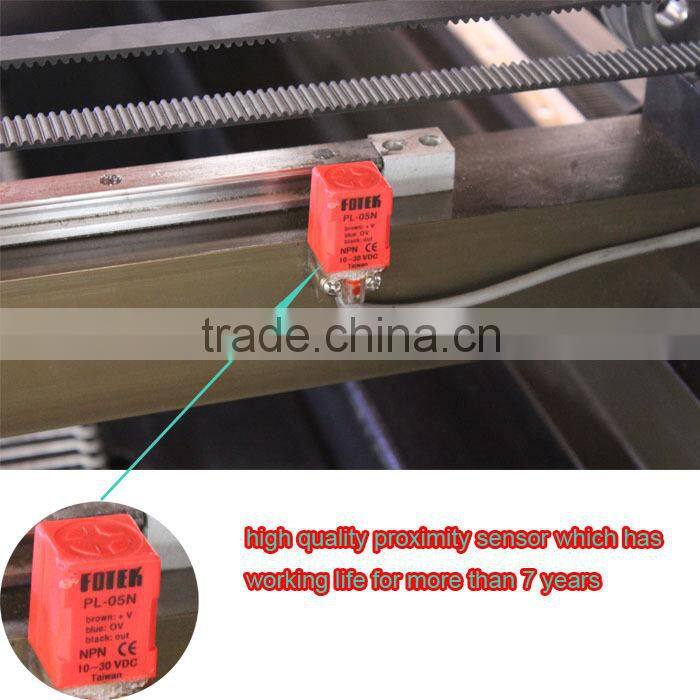

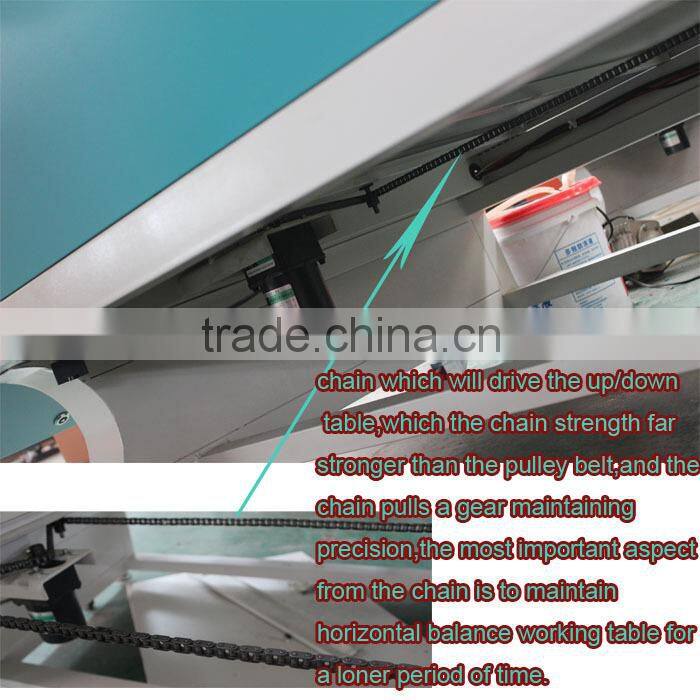

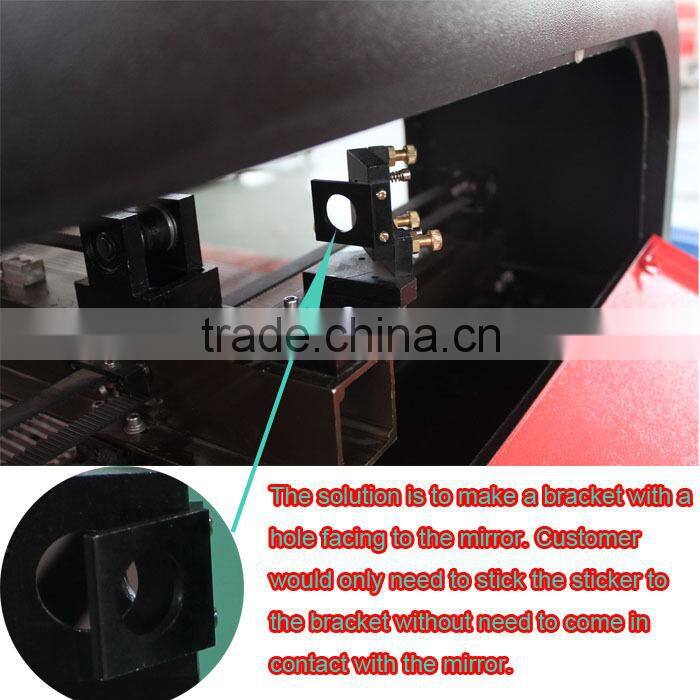

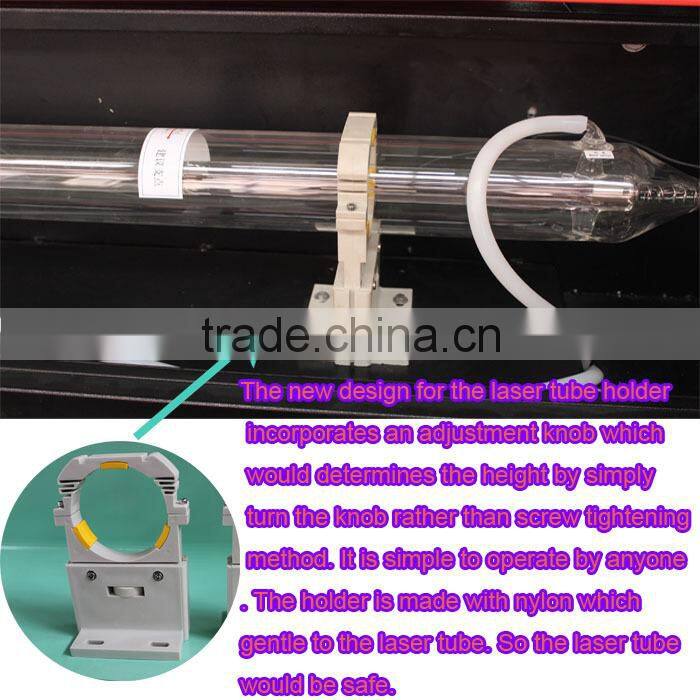

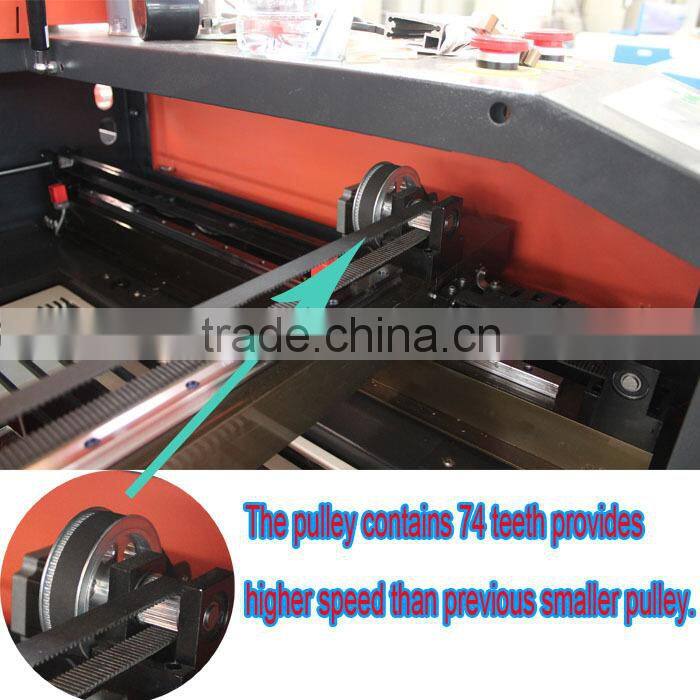

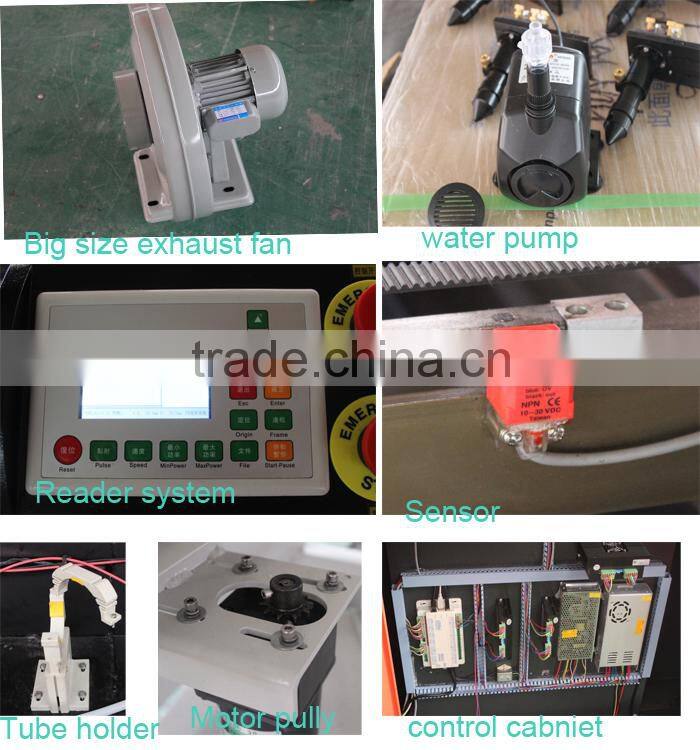

Machine parts
After-sales service: CD, Video, User Manual to guide you how to install, operate, maintaince
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fan with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, user manual, guiding videos etc)
6) 2×Power cables
7) 1×Tool box
1. 12 months for machine,long life span of laser tube:1500-3000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3 .English software, user manual and detailed Videos CD
4.International quality certificate:CE,FDA
5. professional laser machine supplier with 8 years experiences in China
We offer training in our factory.Welcome to our factory .
Laser engrving cutting machine sample:
