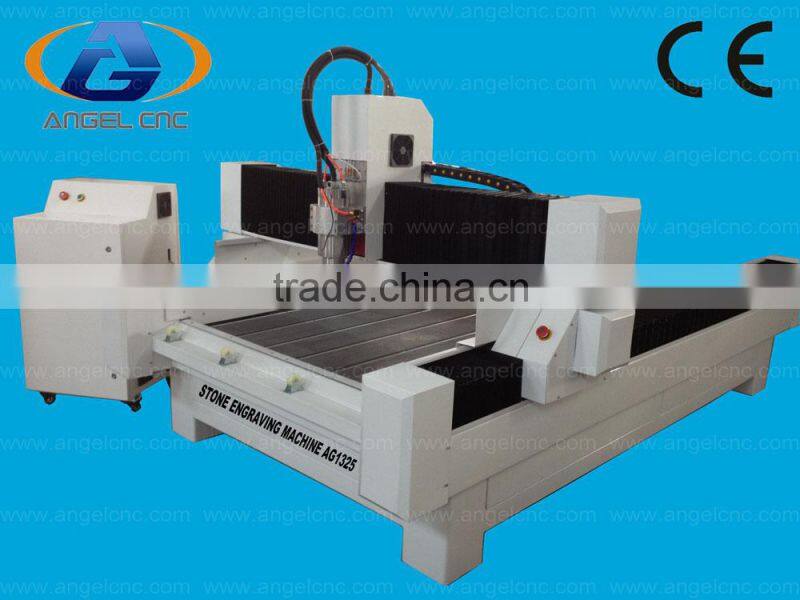

Help CenterHot-Sale AG 1325 Stone CNC Router /Stone Engraving Machine for Marble
Related Products
-
Angel Stone CNC Router Marble CNC RouterUS$ 3,999 - 19,999MOQ: 1 Set -
High Precision 3d Cnc Stone Sculpture Machine AG1325US$ 6,999 - 9,999MOQ: 1 Set
-
AG1325 CNC Stone Machinery for Cutting/Engraving/Drilling/CarvingUS$ 6,999 - 9,999MOQ: 1 Set
-
AG1325 Stone Engraving Machine Running QuicklyUS$ 6,999 - 9,999MOQ: 1 Set
-
AG1325 Stone CNC Caving MachineUS$ 6,999 - 9,999MOQ: 1 Set
Specifications
stone cnc router1.Taiwan Hiwin linear rail
2.DSP control system

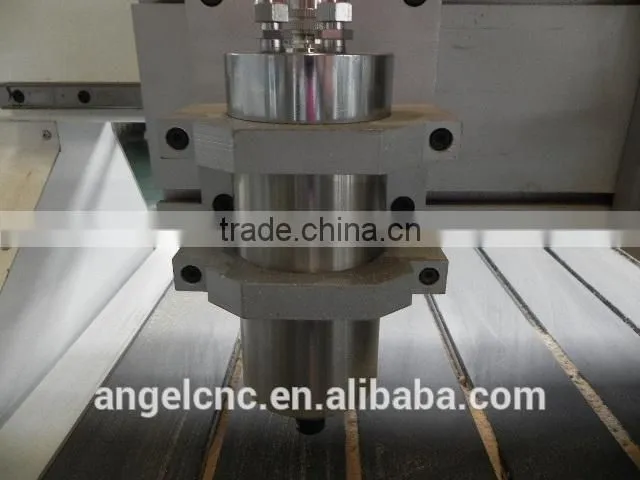

3.Water cooling spindle
4.CE&ISO
China widely used cnc machine stone cnc router price
1-1 Product features:
Our CNC Stone Cutting Machine adopts the mode of saving the intermittence. Memory to insure the processing point when the blade is broken or postpone situation.
· matching Taiwan producing screw with double nut and imported the Taiwan Hiwin liner Guide Rail.
· Specific saving mode of different points. It is very convenient for various scutcheon processing.
· Gantry mode movement is more durable without distortion by long use and the positioning accuracy is much better.
· The large power cutting spindledoes not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth
1-2,Product specifications:
Item No. |
AG1325 |
Working Size |
1300mm*2500mm*200mm |
Max Working Scope |
1305mm*2520mm |
Z-Axis Traveling Height |
200mm |
Feeding Height |
200mm |
Structure |
Thick Heavy-Duty Tubular Steel Frame |
Table Material |
Thickened aluminum alloy |
Thickness of gantry |
CNC machining & full-welded steel tube |
Thickness of the side wall |
25mm, iron casting , CNC machining |
Max travelling speed |
30000mm/min |
Fixing mode |
T-slot (vacuum table, pressure roller for option) |
X,Y Axis Transmission |
Rack and pinion high speed transmission |
Z Axis Transmission |
Ball screw 15000mm/min max speed |
Rail Configuration |
HIWIN Linear Square Guide |
Positioning Accuracy |
±0.05/300mm |
Spindle Power |
3.0kw(4.5/5.5/6KW for option) |
Spindle Rotating Speed |
0-24000 r/min |
Idle Speed (basic) |
0-25000 mm/min |
Processing Speed |
0-20000 mm/min |
Machine Color |
Customized |
Inverter |
Fuling/Delta brand |
Motor Type |
Stepper driving motor |
Movement Control System |
DSP (Optional: Ncstudio Control System) |
Cooling System |
Water cooling |
Code formats |
G-code: U00, MMG , NC , CNC |
Stainless Steel Water Tank |
2mm thick |
Collet Diameter |
3.175mm, 4mm, 6mm, 8mm, 12.7mm |
Movement Way |
Gantry moving |
N.W |
2500KGS |
Machine Power |
220/380V 50HZ 3PH |

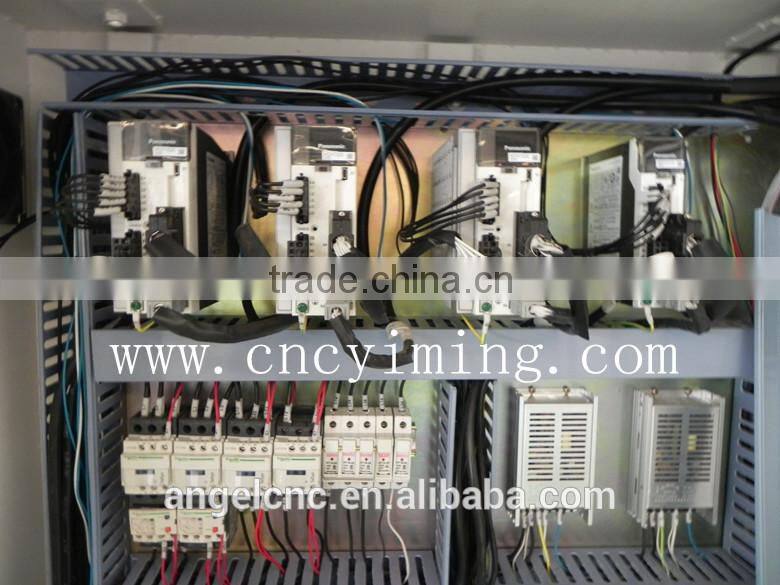

Electric Box |
Saparated control box |
part

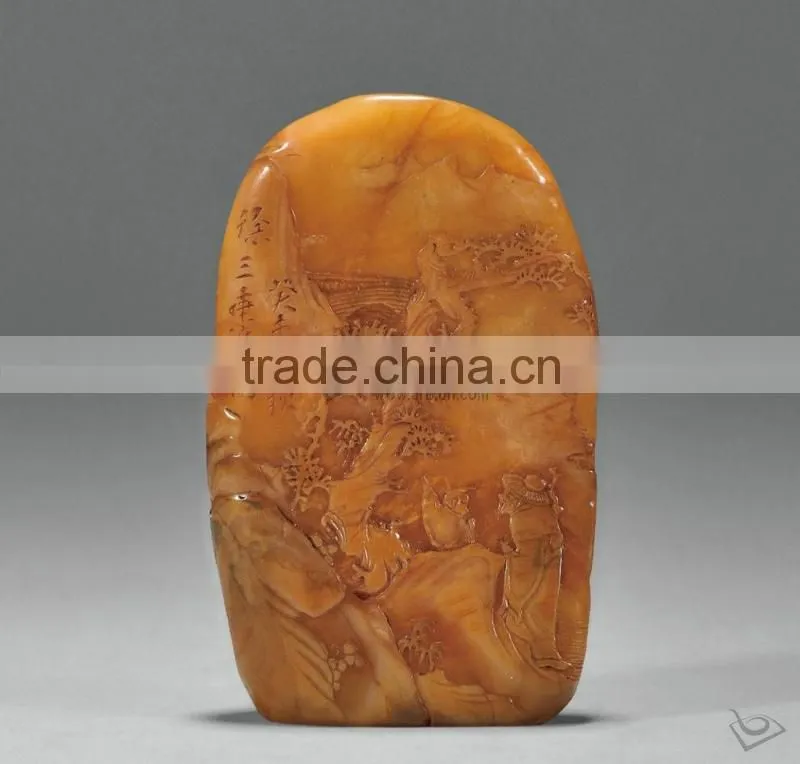

The sample:

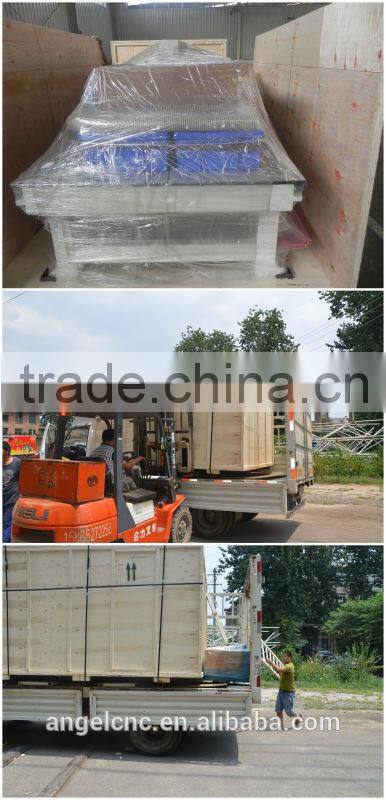

1.3,Package:
Packed with free-fumigation wooden case,more safer and environmental protection during transportation.
Delivery Term:
1.FOB Qingdao/Tianjin/Shanghai
2.EXW
3.CIF+Destination port
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
How to contact with us?
0086-531-68652018
nina-zhao77
