Specifications
3d cnc stone sculpture machine1.CE&ISO9001
2.DSP control system
3.Water cooling spindle
4.Quick/professional service
high precision 3d cnc stone sculpture machine AG1325
Features
1 overall machine design and manufacturing by thick-walled steel gantry and Vincent Fang arm using thick steel plate welded after finishing assembly, to provide strong protection for equipment operating environment
2.using precision rack, high life, fast
3. welding bed, strength, rigidity, machine loading large
4 .main configuration are imported, the joint venture brand components, stable performance
5. horizontal spindle power, intensity, high efficiency, high precision, low noise
6.way tool cooling system, effectively improve tool life
Item No. |
AG1325 |
Working Size |
1300mm*2500mm*200mm |
Max Working Scope |
1305mm*2520mm |
Z-Axis Traveling Height |
200mm |
Feeding Height |
200mm |
Structure |
Thick Heavy-Duty Tubular Steel Frame |
Table Material |
Thickened aluminum alloy |
Thickness of gantry |
CNC machining & full-welded steel tube |
Thickness of the side wall |
25mm, iron casting , CNC machining |
Max travelling speed |
30000mm/min |
Fixing mode |
T-slot (vacuum table, pressure roller for option) |
X,Y Axis Transmission |
Rack and pinion high speed transmission |
Z Axis Transmission |
Ball screw 15000mm/min max speed |
Rail Configuration |
HIWIN Linear Square Guide |
Positioning Accuracy |
±0.05/300mm |
Spindle Power |
3.0kw(4.5/5.5/6KW for option) |
Spindle Rotating Speed |
0-24000 r/min |
Idle Speed (basic) |
0-25000 mm/min |
Processing Speed |
0-20000 mm/min |
Machine Color |
Customized |
Inverter |
Fuling/Delta brand |
Motor Type |
Stepper driving motor |
Movement Control System |

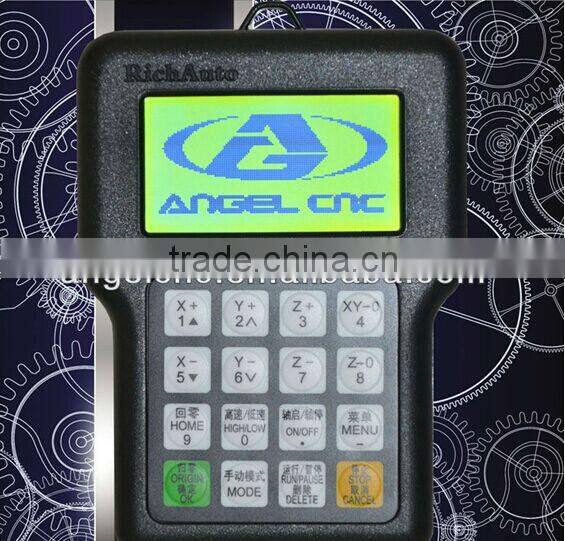

DSP (Optional: Ncstudio Control System) |
Cooling System |
Water cooling |
Code formats |
G-code: U00, MMG , NC , CNC |
Stainless Steel Water Tank |
2mm thick |
Collet Diameter |
3.175mm, 4mm, 6mm, 8mm, 12.7mm |
Movement Way |
Gantry moving |
N.W |
2500KGS |
Machine Power |
220/380V 50HZ 3PH |
Electric Box |
Saparated control box |
Parts Display:

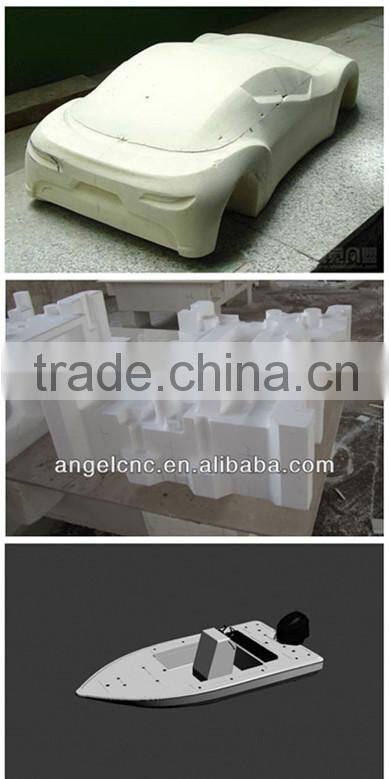

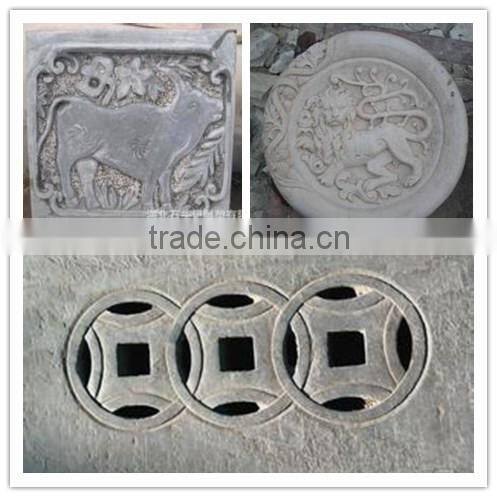

<img The samples
<
Package:
Packed with free-fumigation wooden case,more safe and environment during transportation
<
Delivery Term:
1.FOB Qingdao/Tianjin/Shanghai
2.EXW
3.CIF+Destination port
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked
How to contact with us?
: 0086-531-68652018
:oliviamin2
Any question,pls feel free to contact me!
Welcome to visit our factory!
