Specifications
stone CNC router1.YAKO 2806 driver
2.DSP/Ncstudio control system
3..Taiwan Hiwin square rail
4.3KW Water cooling spindle
Angel stone CNC router marble CNC router
CNC Machine AG1212 for wood acrylic plastic
Machine features
1. Whole machine is welded with seamless steel structure, cast iron machine bed, the stability is excellent
not easy to be deformed.
2. Three axes adopt imported ball screw stable working, high precision and long life time
3. 3.0kw powerful water cooling spindle, low noise, good performance
4. DSP controller, more convenient and easy to operate
5.the control box
6.Well compatibility: CAD/CAM, designing software, e.g, Type3/Artcam/Ucancam,etc.
CNC Machine AG1212 for wood acrylic plastic Technical data
Technical-parameters:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1200*1200*250mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
4 |
Lathe Structure |
Welded Structure |
5 |
X, Y Structure |
TBI Ball Screw Transmission |
6 |
Z Structure |
TBI Ball Screw Transmission |
7 |
Max. Consume power |
6.5Kw |
8 |
Max. Rapid Travel Rate |
10000mm/min |
9 |
Max.Working Speed |
6000mm/min |
10 |
Spindle Power Motor |
3.0KW Chinese water-cooling spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Working Mode |
Stepper |
13 |
Working Voltage |
AC220V/50/60Hz |
14 |
Command |
G Code, *uoo, *mmg, *plt |
15 |
Operating System |
DSP System |
16 |
Interface |
USB |
17 |
Flash Memory |
128M |
18 |
Collet |
ER11 |
19 |
X,Y Working Delicacy |
<0.01mm |
20 |
Software |
Type3 software, Wentai software,Artcam software |
21 |
Running Circumstance |
Temperature: 0°C~45°CRelative humidity: 30%~75% |
22 |
Packing Size |
2130*2000*1750mm |
23 |
Net Weight |
780KG |
24 |
Gross Weight |
850KG |
25 |
Optional |
Air-cooling spindle Servo motor Water tank Vacuum table Gear transmission(Y axis two motors drive) |
Applications
Suitable for various materials, such as wood, or other plastic,MDF board,PVC,acrylic, wood,composite board plywood,and metal,stone, glass, etc.
widely used for process or make adverstising signs,PCB,nameplates,badges,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
Also can process the stone, because it adds stainless steel water tank
Other types of CNC Machine AG1212 for wood acrylic plastic
1. Machine with rotary axis ,for cylinder material engraving

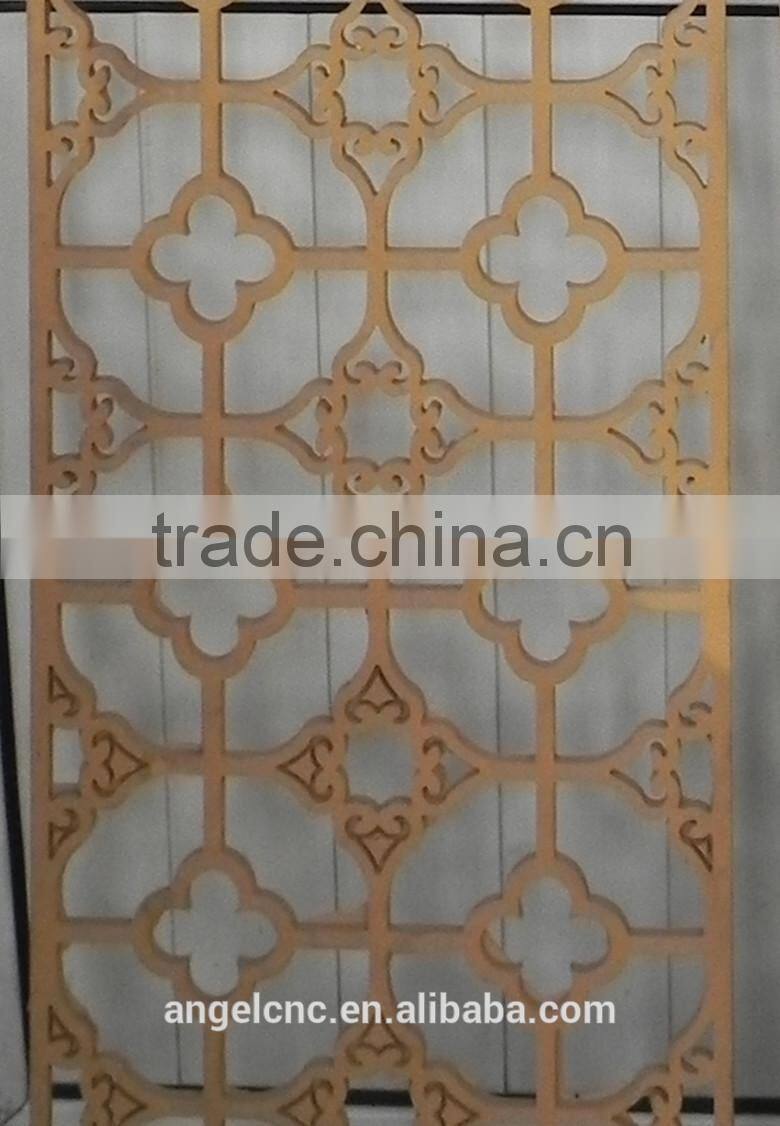

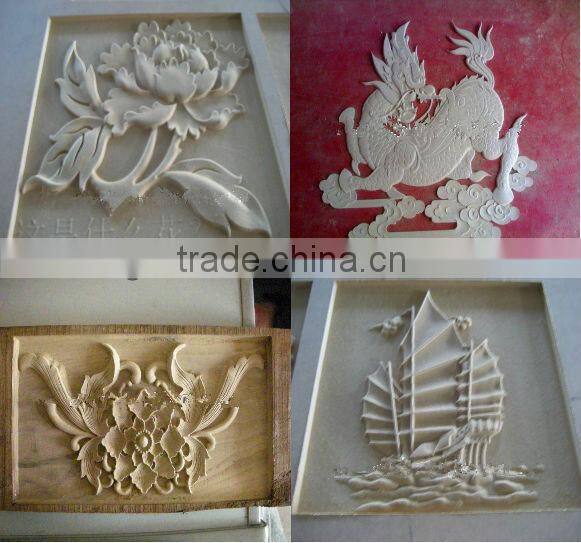

2.Machine Samles:

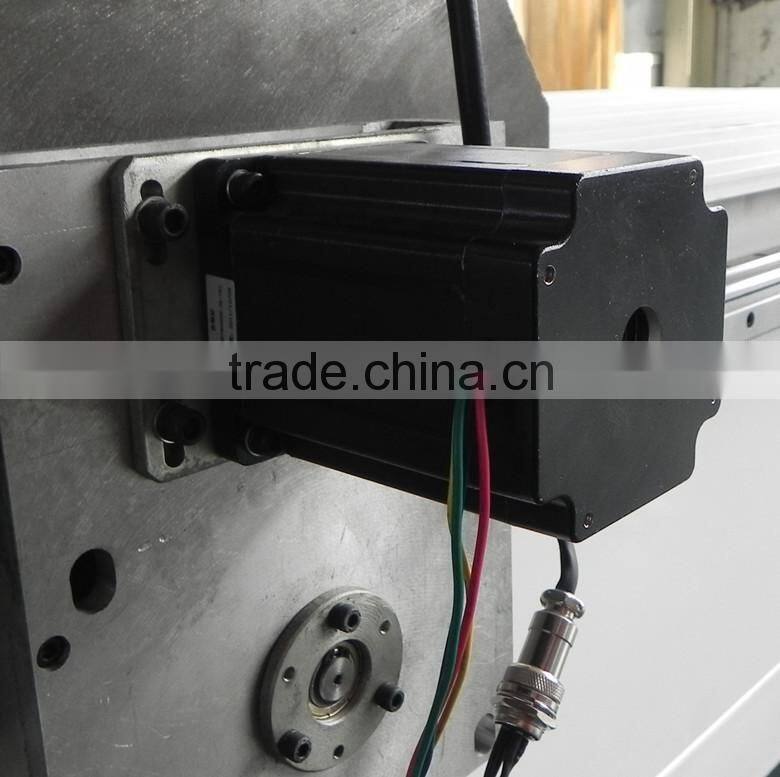

parts:
Package:
Packed with free-fumigation wooden case,more safe and environmental during transportation.
Delivery Term:
1.FOB Qingdao/Tianjin/Shanghai
2.EXW
3.CIF+Destination port
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
