Specifications
New Listing !!! 1325 Cheap and good quality CNC Router. 4.5KW Air-cooling spindle
.Vacuum table+Dust collector
.CE&ISO9001
New Listing !!! 1325 Cheap and good quality CNC Router
PARAMETERS
| No. | Description | Parametrs |
| 1 | X,Y,Z Working Area | 1300x2500x200mm (4.3'x8.2'x0.7') |
| 2 | Table Size | 1360x2940mm (4.5'x9.6') |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.01 mm |
| 5 | Table Surface | Vacuum and T-slot comnbined(option:T-slot table) |
| 6 | Frame | Steel Tube Welded Structure |
| 7 | X,Y Structure | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Rapid Travel Rate | 33,000mm/min |
| 10 | Max. Working Speed | 25,000mm/min |
| 11 | Spindle Power | 3.0/4.5/5.5/6/7 KW |
| 12 | Spindle Speed | 0-18000 RPM |
| 13 | Drive Motors | Stepper System |
| 14 | Working Voltage | AC380V, 50/60Hz, 3PH (Option:220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP System (Options: Ncstudio/ Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M (Flashdrive) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | < 0.01mm |
| 21 | Software Compatibility | Type3/ Ucancame V9 software (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0°-45° |
| 23 | Relative Humidity | 30%-75% |
| 24 | Packing Size | 3230*2320*1930mm |
| 25 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary Device | ||
| Mist-cooling System | ||
| 850W Yaskawa/ 800W Panasonic Servo Motor |
It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB,PP, PE, PVC, M
DF, acrylic, aluminium, brass and so on.
APPILCATION
| Industry | Products |
| Furniture Industry |
1) doors 2) cabinets 3) tables 4) chairs |
| Advertising Industry |
1) signage 2) Logo 3) Badges 4) display board 5) meeting sign board 6) billboard |
| Artwork and Decoration |
1)wood crafts 2)gift box 3)jewelry box |

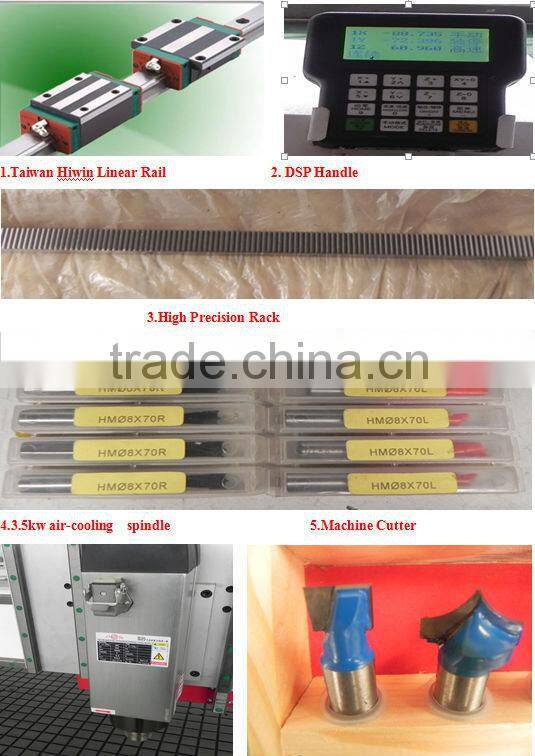

Machine pictures:
Samples:
Package:
Packed with free-fumigation wooden case,more safe and environment during transportation
Why some clients choose us?
Wewill provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked
How to contact with us?
Any question,pls feel free to contact me,we also welcome everyfriend can visit our workshop!
