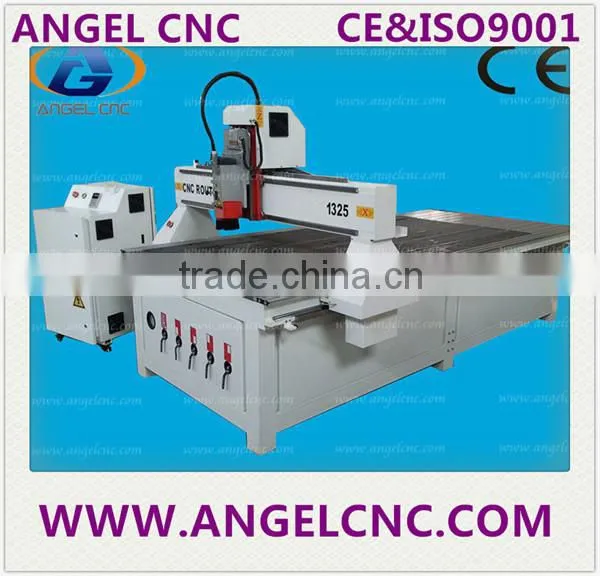

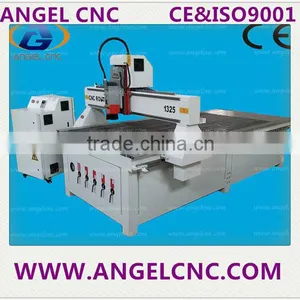

SELL LIKE HOT CAKES!! 1325 Solar Cutting Machine

Specifications

SELL LIKE HOT CAKES!! 1325 Solar Cutting Machine

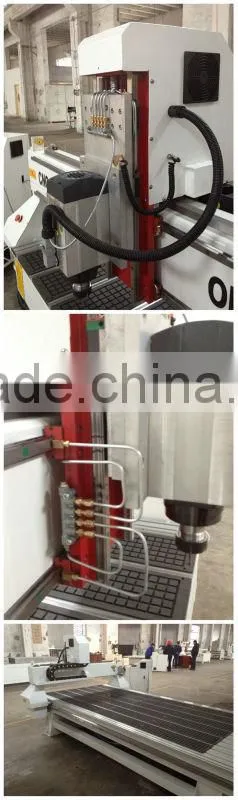

1.CE Certificate &ISO9001
2.4.5kw Air-cooling Spindle
3.Vacuum Table



  SELL LIKE HOT CAKES!! 1325 Solar Cutting Machine



1.China domestic no oil vacuum pump, also can equipped with different vacuum pumps according to customers requirements.
2.DSP control system

3.Top rank vacuum adsorb table surface, it is made from electric wood board with high adsorb, can adsorb different materials, this material with big density(1.3-1.45g/cm), heat resisting, it can resist high temperature (115°C).
4. High speed, high efficient, idle speed can reach to above 35meters/min, it can reach to 20 meters/min when processing wave board, it can match 4-5 common type machine.

Technical parameter



1	Stroke range	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Process precision	±0.1mm
3	Reposition precision	±0.1mm
4	Table structure	vacuum table
5	X,y,z structure	X, y rack, z screw
6	Idle speed	≥32000mm/min
7	Working speed	≥15000mm/min
8	Spindle	4.5kw air cooling spindle(optional)
9	Spindle speed	0-18000rpm/min
10	Motor type	stepper
11	Command code	G code
12	Working voltage	AC380V/50HZ
13	Operating system	DSP system
14	Rail	HIWIN linear rail
15	Driver	Yako driver
16	Inverter	Taiwan Delta inverter
17	Software	Artcam/Type3/UcancamV9(optional)





Applicable industry and material



1. The furniture industry: cabinet doors, wooden doors, solid wood, panel, door and window furniture.

2. Decoration industry: screen, wave board, large wall hanging, advertising board, marking making.

3. Arts and crafts industry: it can engrave exquisite words and patterns on the manmade stone, wood, bamboo, marble.

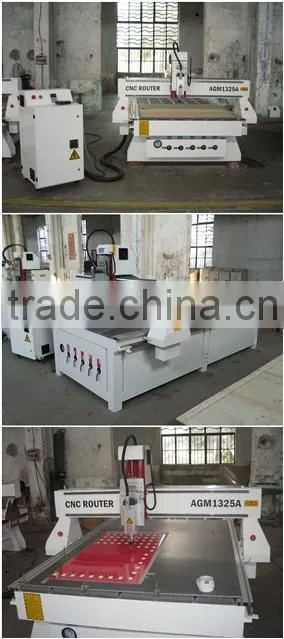

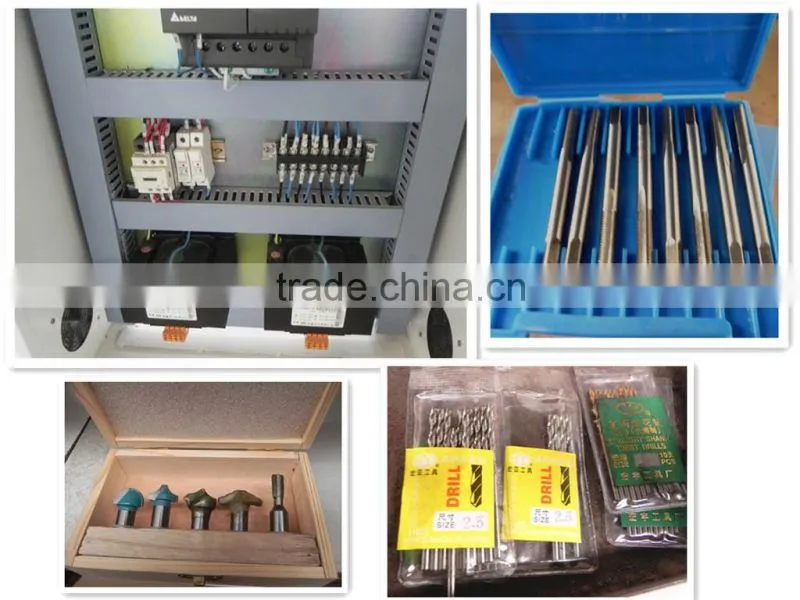

 Samples Display
