Specifications
cnc machine1.CE & ISO9001
2.3.5Kw Air-Cooling Spindle
3.Dsp Control System
4.Taiwan Delta
chinese multi-function cnc machine
| ||
|
CNC Wood Router Parameters | ||
X,Y-Axis Travel: |
4' *8' (1300mm*2500mm) |
|
Z-Axis Travel: |
8" |
|
Repeatability: |
+/- .002" |
|
Cutting Speed: |
35m/min |
|
Working Speed: |
60m/min |
|
Drive System X and Y axis: |
Rack and Pinion, Hiwin rail linear bearing |
|
Drive System Z axis: |
Lead Screw,Hiwin rail linear bearing |
|
Standard Work Surface: |
Aluminum T-Plate Extrusion Combined Vacuum Table |
|
Motor: |
Stepper |
|
Command languages: |
G code, *mmg, *plt, *u00 |
|
|
Controller
| ||
Type: |
DSP Remote Controller |
|
Interface: |
USB |
|
Memory: |
512 MB |
|
File Size Limit: |
Unlimited |
|
File Type: |
G codes & PLT |
|
Optional | ||
|
PC platform working mode( Weihong Controller system and NC studio software)
| ||
1.The machine have CE Certificate.
2. Vacuum table, high power can sorb different sizes material.
3. Intelligent protection table: to prevent misoperation or damage to the table caused by software errors.
4. Lathe bed use all-welded structure, strong reasonable, simple operation, and durable.
5. Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
machine details

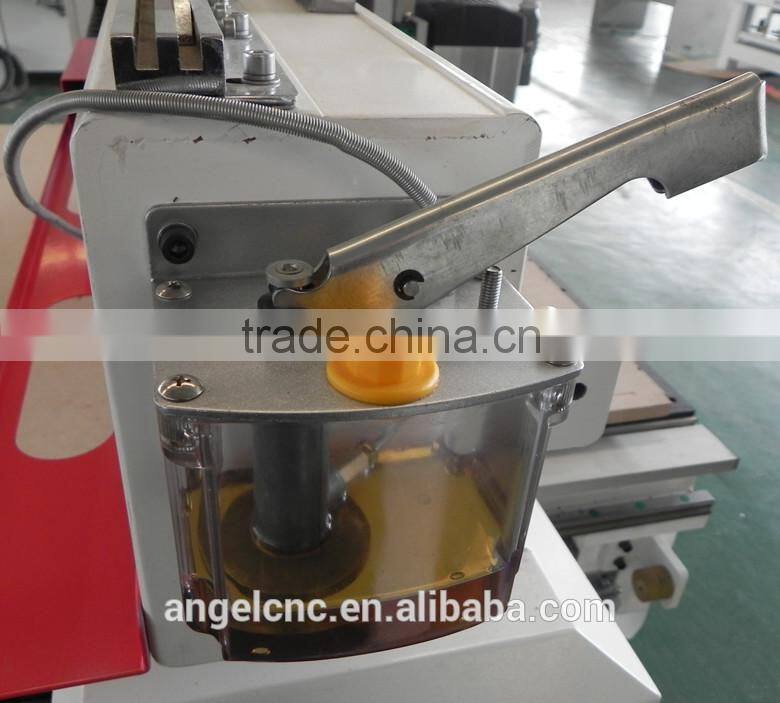

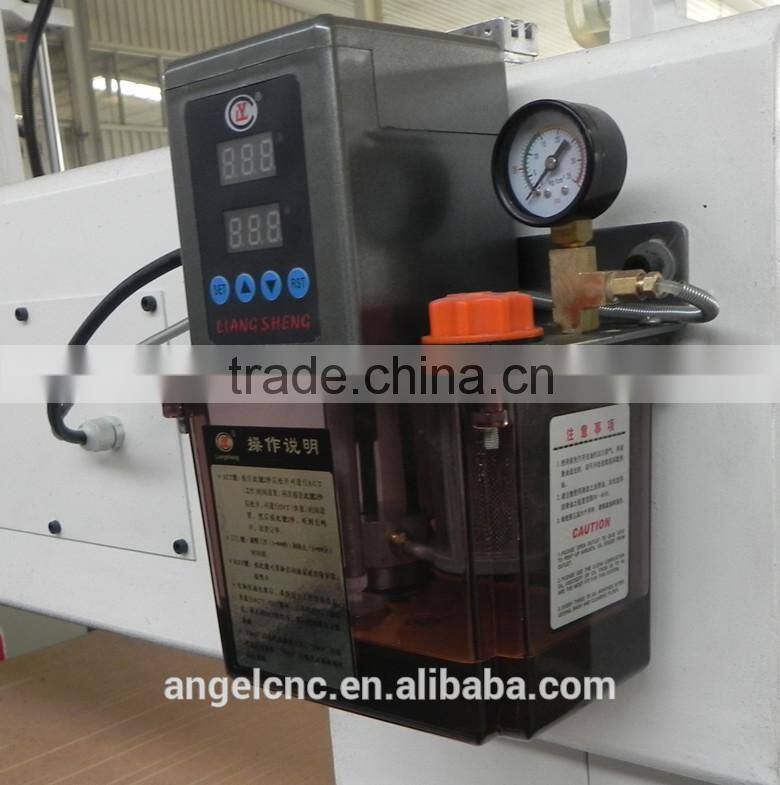

1.Lubrication system --The lubrication system makes sure that every moving part in the engine gets oil so that it can move easily

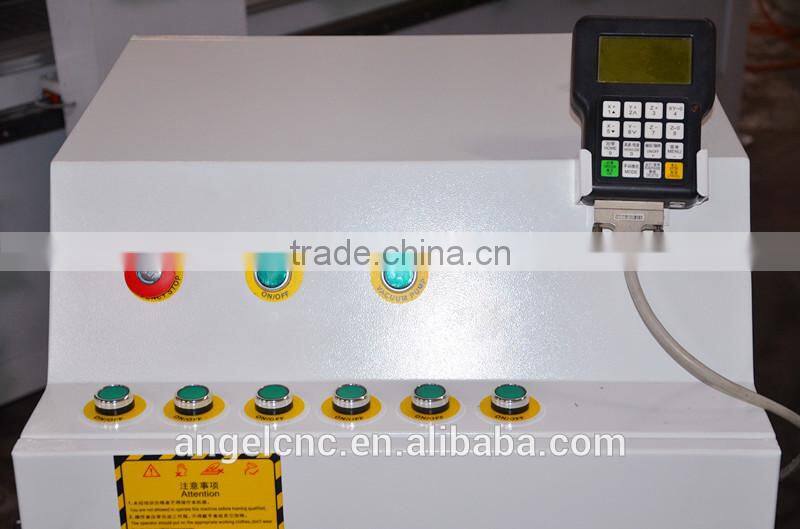

2.DSP control system --Advanced DSP control system, high stability, good anti-interruption ability, with large capacitymemory, improves the work efficiency and speed

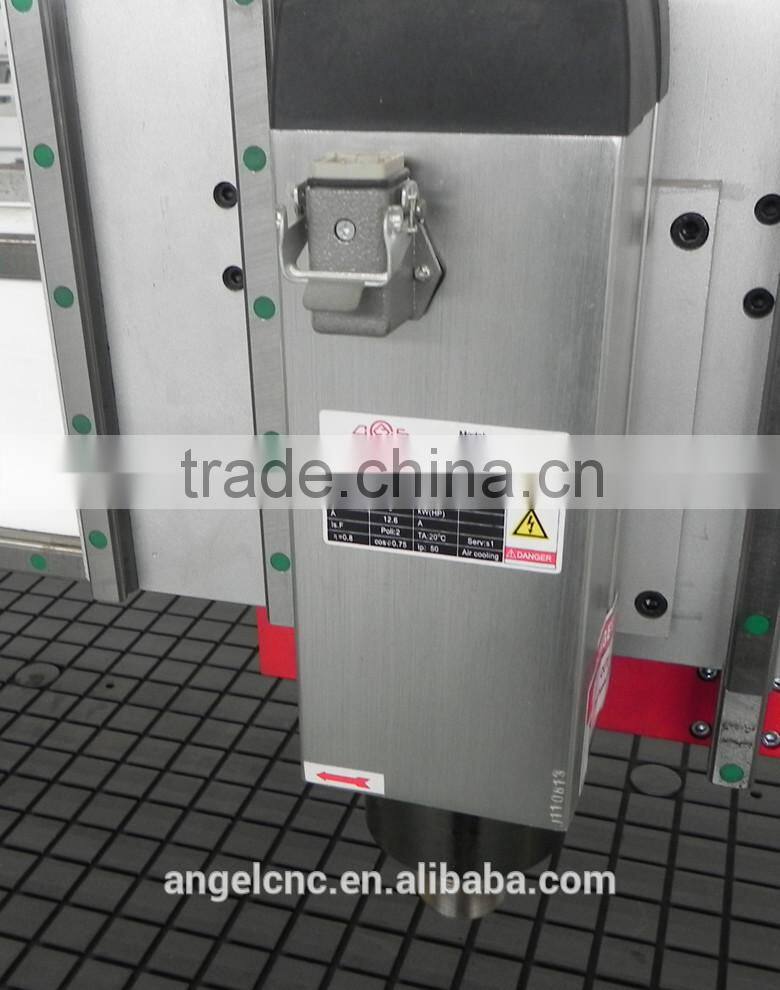

3.Spindle & Inverter:3.5kw air-cooling spindle ,adopt chinese best brand,high speed,high quality.

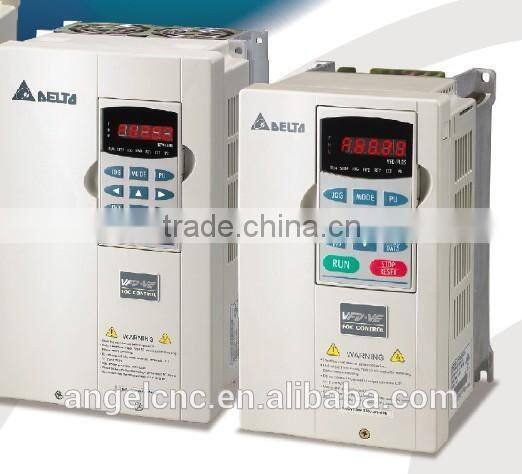

Inverter adopt Taiwan Delta inverter,it is famouse in international market.

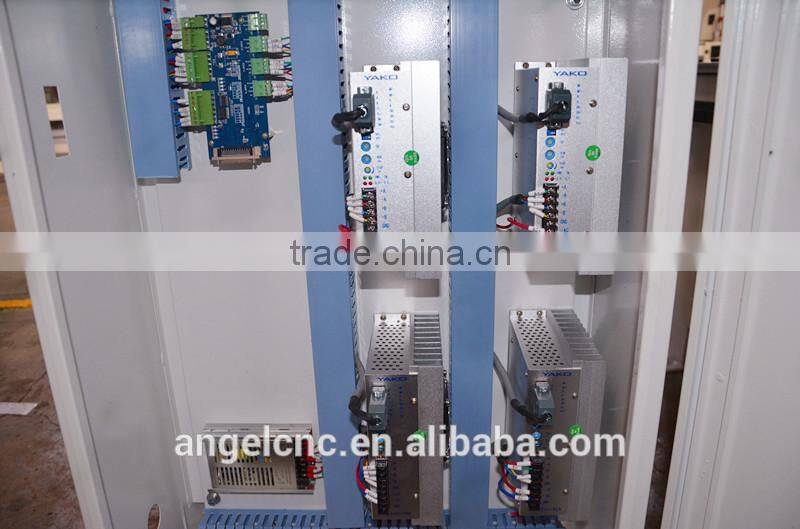

4.YAKO Driver:Chinese best quality,it is very stable.
Applicable industry and material
1. The furniture industry: cabinet doors, wooden doors, solid wood, panel, door and window furniture.
2. Decoration industry: screen, wave board, large wall hanging, advertising board, marking making.
3. Arts and crafts industry: it can engrave exquisite words and patterns on the manmade stone, wood, bamboo, marble, organic board.
Samples Display:
Package:
Packed with free-fumigation wooden case,more safe and environment during transportation.
Delivery Term:
1.FOB Qingdao/Tianjin/Shanghai
2.EXW
3.CIF+Destination port
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
How to contact with us?
SKYPE:bettykong1106 M:18765878398
T:86-531-68652018
Any details informations or help you want please contact with me. Welcome you visit our factory!
