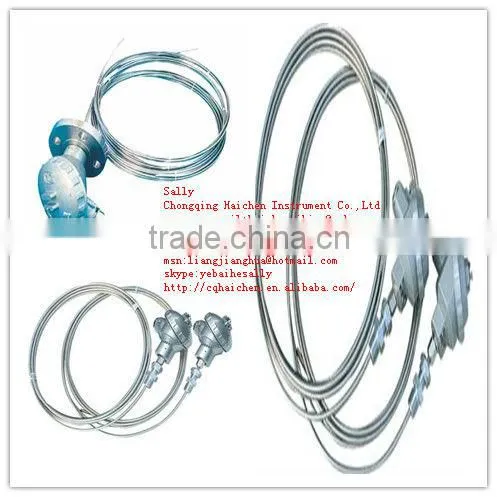

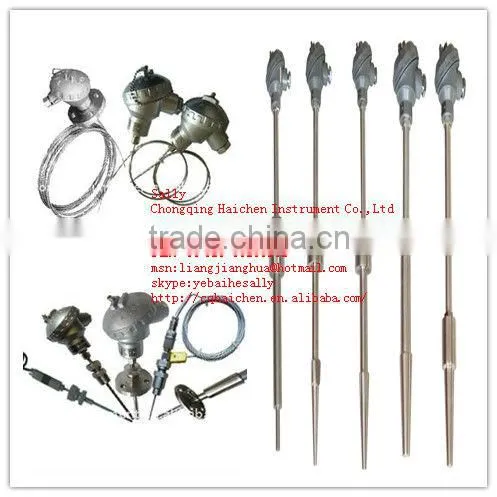

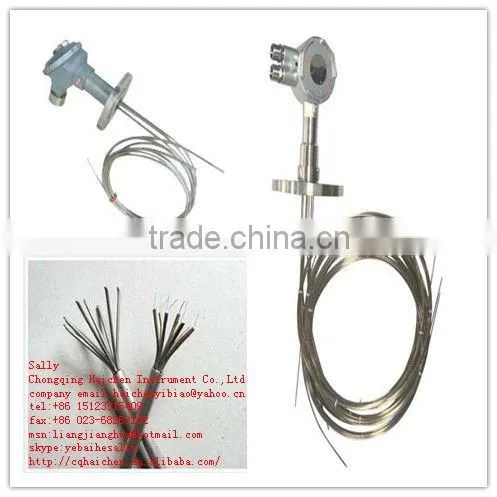

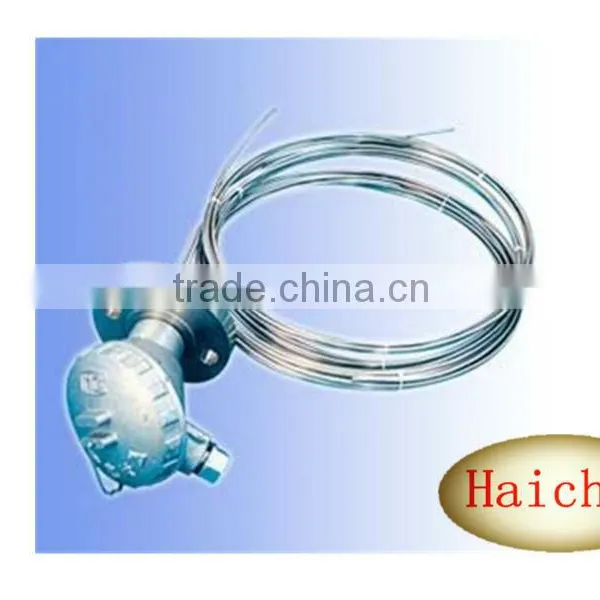

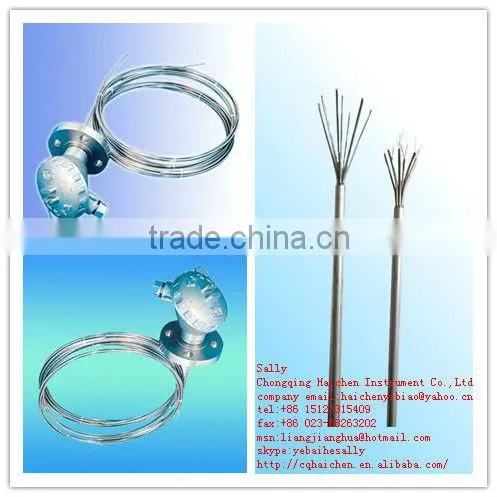

Multipoints Thermocouple Type K
Type K thermocouple is the NiCr-NiSi thermocouple, it also used as a temperature transmitter, in general, K type thermocouple is connected with the display instrument, record instrument and computer by KX extension cable. It can be directly measured temperature of the gas, liquid , melting liquid and solid surface in various production process. Now the type K thermocouple have three forms: assembly thermocouple, sheathed thermocouple , assembly and sheathed combined thermocouple.
multipoints thermocouple main technology index
Name |
Calibration |
Tolerance |
|||
|
NiCr-NiSi WRNK or WRKK |
N
K |
Class l |
Class ll |
||
Tolerance |
Temperature range°C |
Tolerance |
Temperature range°C |
||
±1.5°C or ±0.4%|t| |
-40~13000 |
±2.5°C or ±0.75%|t| |
-40~1300 |
||
Thermal response time (type K assembly thermocouple)
Diameter of protection tube mm |
Material of protection tube |
Thermal response time S |
16 |
Non-metal |
≤240 |
metal |
≤180 |
|
20 |
metal |
≤240 |
20 |
Non-metal |
≤300 |
Overall protection tube |
metal |
≤300 |
