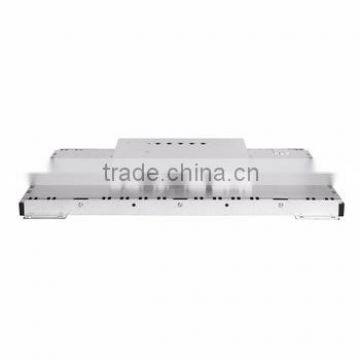

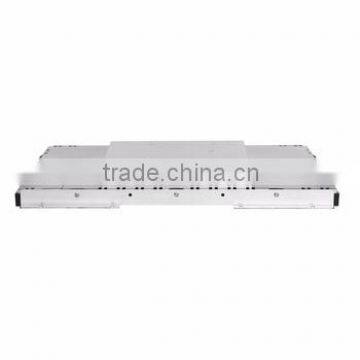

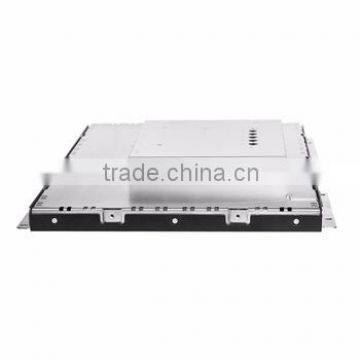

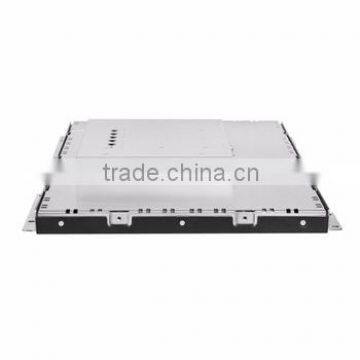

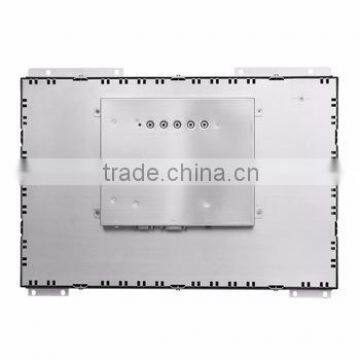

Help Center19 Inch Open Frame Monitor,anti-highlight IR Display, Outdoor Monitor
Related Products
-
Full HD Open Frame Touch Screen With VGA/DVI Input,800x600,1280x76,1280x1024US$ 1 - 2MOQ: 1 Piece -
21.5"/22" Open Frame Resistive/SAW/Capacitive Touch Monitor ,1680x1050US$ 1 - 2MOQ: 1 Piece
-
Open Frame Lcd Monitor, Frameless Lcd Monitor, Video Wall ApplicationUS$ 1 - 2MOQ: 1 Piece
-
26"/32"/42"Open Frame IR Touch MonitorUS$ 1 - 2MOQ: 1 Piece
-
19"Open Frame Monitor,Resistive/Capacitive/SAW IR Touch Screen,1280*1024,VGA,DVI Signal InputUS$ 1 - 2MOQ: 1 Piece
Institutional | |
Front Panel |
Steel structure,Stainless steel wire drawing process ,open frame panel |
Mounting |
Open mount/VESA |
Buttons |
The back of the machine is equipped with switches, lights,and OSD control buttons |
Signal Input |
DVI and VGA |
Communication |
USB |
Power Input |
12V DC voltage input, optional transfer 12VDC to 220VAC power adapter |
Front Color |
Gray |
Overall size |
456 × 334 × 51mm(W×H×D) |
Case Size |
456 × 303 × 51mm(W×H×D |
Hole Size |
422 × 269 mm(W×H) |
Weight |
4kg |
LCD | |
Size / Type |
19-inch widescreen TFT LCD |
Resolution |
1440×900 |
Maximum color |
16.7M |
Display area |
408.24 × 255.15mm |
Reaction time |
5ms |
Backlit |
LED |
Backlit MTBF |
30,000 hour |
Lattice |
0.2835×0.2835 |
Brightness |
250cd/sqm |
Contrast ratio |
1000: 1 |
Max view angle |
(H)170/(V)160 |
Touch Screen | |
Size/Type |
19-inch IR touch screen |
Touch points |
1 or 4 point(Switchable) |
Reaction time |
<8ms |
Glass |
3mm Tempered glass |
Resolution |
32768 x 32768 |
Precision of touch |
<1.5mm(Center area),<3.2mm(Edge area) |
Touch Diameter |
>5mm |
Transmittance |
92% |
Surface hardness |
Glass surface hardness,Mohs 7 |
Environmental | |
Working temp. |
0~+60℃(Electronic disk) |
Storage Temp. |
-30~+80℃ |
Relative humidity |
10~95%@40℃( No condensation) |
Vibration |
50~500Hz,1.5G,0.15mm Peak to peak |
Shock |
10G/peak(11ms sec) |
