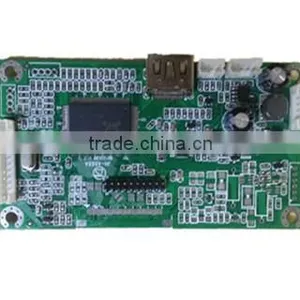

Help CenterLCD Controller Board HDMI Input Only
Related Products
-
LCD Controller Board for Edp Interface LCD PanelUS$ 1 - 2MOQ: 1 Piece -
Controller Board,driver Board,AD Board for Edp Interface LCD Panel,1366*768/1920*1080US$ 1 - 2MOQ: 1 Piece
-
LCD Controller Board With VGA+HDMI+USBUS$ 1 - 2MOQ: 1 Piece
-
Real 4K Resolution (3840x2160)@60hz Support LVDS&V-by-one Interface TFTUS$ 1 - 2MOQ: 1 Piece
-
DVI-D and VGA Signal Input LCD A.D BoardUS$ 1 - 2MOQ: 1 Piece

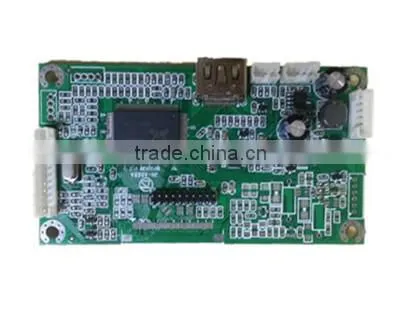

| LCD driver panel board ,enabling analog HDMI signal and composite video | ||||
| Product Overview | The product is currently the company introduced the latest LCD driver board design and development of a product, for 6.4 to 21 inches between the interface type is a variety of single-port LVDS LCD display, enabling analog HD signal and composite video the input signal can achieve a maximum resolution of 1920 * 1080; this product has exquisite style OSD interface, ten kinds of OSD language options. |
|||
| properties | This section lists the products with the detailed functional characteristics, see table below |
|||
Signal Input |
HDMI |
Support model |
DOS,VGA,SVGA,XGA,SXGA,UXGA,WUXGA+ |
|
Color |
32BIT |
|||
Line sync range |
30---80KHz |
|||
Vertical sync range |
56---75Hz |
|||
Audio |
Output Power |
No |
||
Interface |
HDMI INPUT | 19 pin HDMI terminal | ||
Power Input |
4PIN PH2.0 |
|||
Audio Input |
NO |
|||
Key board |
10PIN PH2.0 |
|||
Go screen interface |
50PIN FFC 0.5MMOR2.0 2*10LVDSLily |
|||
INVERTER Interface |
6PIN PH2.0 |
|||
Audio Output |
6PIN PH2.0 Audio signal |
|||
|
Power supply |
Input Power |
DC 12V(+/-0.6V) |
||
To the screen voltage |
3.3V |
|||
Supply operation |
Normal operating mode, a low-power mode |
|||
| Power Management | Standby power consumption <1W | |||
|
Other |
Key functions defined |
Power, Menu ,+ ,— ,Auto |
||
OSD Language |
English, French, Russian, Spanish, Korean, Simplified Chinese, Traditional Chinese, Italy, Portugal, Japan, |
|||
OSD Function |
Image Adjust automatically adjusts the color adjustment menu to adjust |
|||
No. |
Functional Description |
No. | Functional Description |
|
1 |
Power Input |
2 |
Upgrade Program Interface |
|
3 |
HDMI input |
4 |
AV1 input |
|
5 |
AV2input |
6 |
Button interface |
|
7 |
50PIN FPCPoint-screen interface |
8 |
LVDS interface |
|
9 |
Audio Control Interface |
10 |
Inverter Interface |
|
| Analog R, G, B support model table | This section shows the detailed simulation of the product can support R, G, B mode with its field frequency, the linefrequency and resolution. | |||
| analog R, G, B Mode Table | ||||
Mode |
Resolution |
Horizontal Frequency (KHz) |
Vertical Frequency (Hz) |
Standard |
XGA |
1024X768 |
48.4 |
60 |
VESA |
SVGA |
800X600 |
37.9 |
60 |
VESA |
VGA |
640X480 |
31.5 |
60 |
VESA |
DOS |
640X480 |
31.5 |
60 |
VESA |
