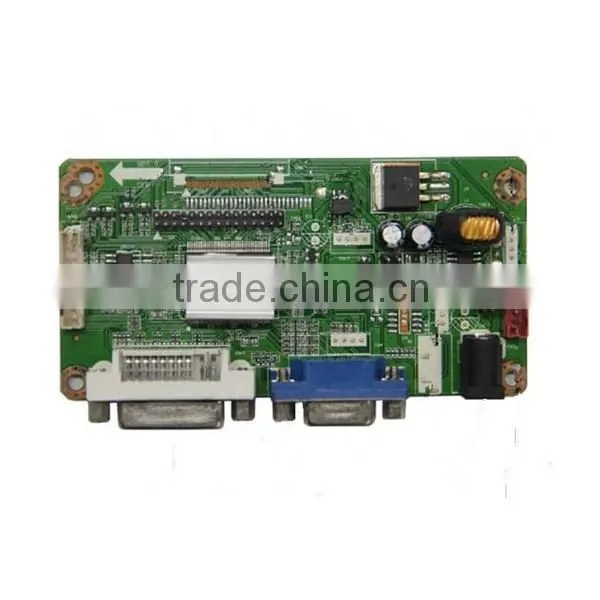

LCD display driver board, support for DVI-D and VGA input | |||
General Description |
ND-LM.R61.B is a liquid crystal display driver board, support 1920 * 1080 and the following resolution LCD panel,support for DVD and VGA inputs, supporting 50-75Hz line frequency in the range of 30-80KHz, field frequency in signal. Board with a 2 * 1w (8Ω) audio power amplifier. Which program also supports dynamic contrast. |
||
We provide you with good study software services, including increasing customer boot screen, custom OSD language. For the convenience of the whole production, we offer you: the perfect aging mode, ADC automatic calibration and data saved automatically get the data from the barcode scanner and generate EDID data and burning. We can also provide you with a display of windows operating system drivers | |||
Configuration & General Precautions |
3.1 For safety Issue,please keep the board 8.0mm away from metal parts of the TV at least. |
||
3.2 A ESD shield bag is offered to protect the board from electrostatic or magnetic shock during delivery .But there is no metal case to ensure safety, so ESD handle is needed all time | |||
3.3 The brightness of panel is influence greatly by temperature. You must measure it in the same condition and wait until after power on 10~30 minutes. | |||
| 3.4 Keep the board surface clean.Check appearance of the board to see if there are any issues that may cause failure or unreliability,such as dilapidate,weighty nick, etc | |||
3.5 Keep the board away from conductor when it is working | |||
3.6 Don’t press, distort or disassemble the board | |||
3.7 Clean the board with soft dry cloth when it’s dirty | |||
3.8 Don’t wire in the board to power supply before panel is correctly connected | |||
| Product Features | |||
| Panel | Interface |
Single /Dual LVDS |
|
Resolution |
1920 * 1080 and the following |
||
Power supply |
3.3V,5V,12V |
||
| Power | Requirement |
5V,5VSB,12V Or12V |
|
Standby Power |
<0.3W |
||
| OSD Language | Simple Chinese, Traditional Chinese, English, French, German , Italian, Spanish, Portuguese , Japanese, Korean | ||
| Key Function | POWER + - AUTO, MENU | ||
Video Input |
DVI VGA |
Format |
|
Audio Input |
DVI VGA |
Earphone Input |
0.22.0VRMS |
| Audio Output | Max output Power | 2x1W (8Ω) THD+N<10%@1KHz | |
| lnterface Definition | Note: The square pad is defined as N0.1 | ||
Definition of universal socket board is based on the socket opening inward, startcounting from left to right (except custom-type card) | |||
CN15(6PIN/2.0): Inverter Connector | |||
NO |
Symbol |
Description |
|
1 |
12V |
12V Power supply(12V |
|
2 |
12V |
12V Power supply(12V |
|
3 |
BL_ON |
Backlight on/off Control |
|
4 |
ADJ |
Brightness Adjust voltage Signal |
|
5 |
GND |
Ground |
|
6 |
GND |
Ground |
|
CN5 (11PIN/2.0): Key Board Connector | |||
NO |
Symbol |
Description |
|
1 |
KO |
Power |
|
2 |
LED-R |
Red LED |
|
3 |
LED-G |
Green LED |
|
4 |
GND |
Ground |
|
5 |
K6 |
(By default )Auto |
|
6 |
K5 |
(By default ) Menu |
|
7 |
K4 |
(By default )Left |
|
8 |
K3 |
(By default ) Right |
|
9 |
K2 |
(By default )NC |
|
10 |
K1 |
(By default )NC |
|
11 |
3V3 |
3.3V Power Supply |
|
| CN15 (6PIN/2.0):5V POWER | |||
NO |
Symbol |
Description |
|
1 |
5VSB |
+5V Standby Power supply |
|
2 |
STBY |
Power on/off Control |
|
3 |
5V |
+5V Power supply |
|
4 |
5V |
+5V Power supply |
|
5 |
GND |
Ground |
|
6 |
GND |
Ground |
|
| CN2 (4PIN/2.0):12V POWER | |||
NO |
Symbol |
Description |
|
1 |
12V |
12V Power supply |
|
2 |
12V |
||
3 |
GND |
Ground |
|
