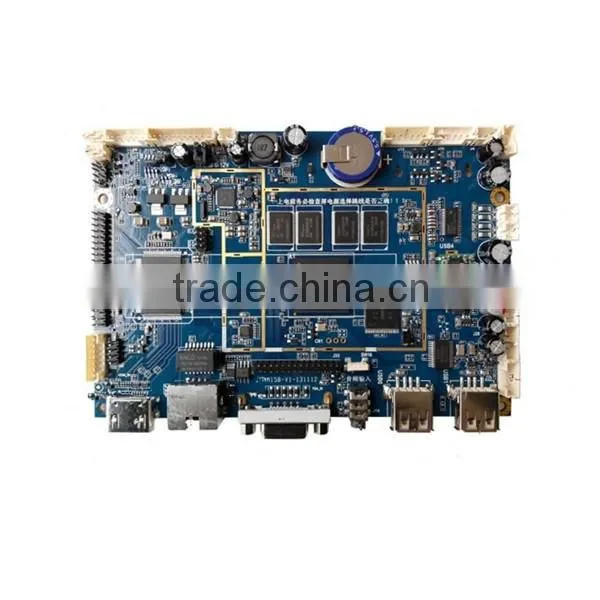

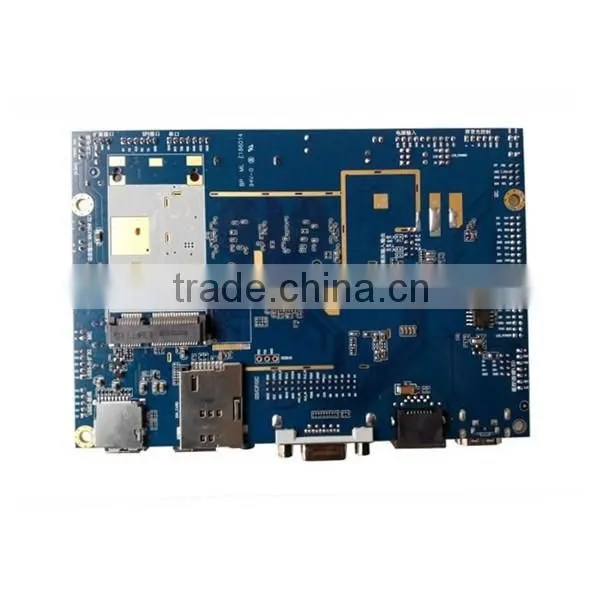

| Mini pc multimedia rockchip main chip network player - integrated LCD driver board. | ||
| Outline | NODKA-ARM2 is a multimedia-based rockchip main chip network player - integrated LCD driver board. Its control IC has a powerful audio and video processing capabilities, support 1080P Full HD decoding, and uses mstar LCD driver program, the perfect combination of the two, so that your machine up to professional HD effect. | |
| Feature | High level of integration | Set of multimedia decoding, LCD driver, audio amplifier and multiple network access methods in one |
| High Definition | Compatible drive 15-100 inch LCD screen, the largest support 1080P video decoding and 1080P LCD screen, you can set the optimum decoding format and display parameters for different resolution LCD screen, display a more perfect. | |
| Featured | Support horizontal and vertical screen playback, video split screen, scrolling marquee, timer switch, USB data import, playback logging, 30 days playlists preset functions | |
| Easy management | With a strong background in management, server architecture approach is B/S, the database is mysql5.1, can be managed from anywhere via the Internet advertising. | |
| 1.Compatible drive 15-100 inch LCD screen, maximum support 1080P video decoding | ||
| 2.Support the mainstream media formats, support for images, videos, marquee decile screen playback | ||
| 3.Support picture + background music playback mode, you can replace the traditional light boxes, poster | ||
| 4.Support cycle, timing and other multi-player mode, supports playlist presets; | ||
| 5.Support display logo | ||
| 6.Super multi-period timer switch function | ||
| 7.Support network remote update program updates can also use U disk manual | ||
| 8.Supports playback logging and upload | ||
| The main hardware index | CPU |
Dual-core ARM Cortex A9 |
GPU |
Quad-Core ARM Mali-400 MP |
|
Nominal frequency |
1.5GHz(Highest 1.6GHz) |
|
Memory |
DDR3 1Gbyte,Brand:HYNIX/SAMSUNG |
|
Built-in memory |
Onboard NAND FLASH 4Gbyte,Brand:HYNIX/SAMSUNG |
|
Memory Expansion |
TF/USB |
|
Decoding resolution |
Up to 1080P |
|
The main function |
Operating system | Android 4.2.2 |
| Playback | Start to play automatically; display terminal work time according to a predetermined schedule and program play multimedia content, according to a preset template screen displays graphic information, support playback modes include: | |
1.Spots | ||
| 2.Play the specified time | ||
| 3.Cycle Play | ||
| 4.Gasket Play | ||
| Network Support | Support 10/100M Ethernet |
|
Support WIFI (150Mbps) | ||
| Scalable 3G module | ||
| Picture stretch | Pictures automatically stretch displayed in the area and tiled display, the terminal supports decoding maximum picture resolution is 1080p. | |
| Remote Control Terminal | Support for remote control commands sent by the server parsing and processing, including: spots news, restart the terminal, sleep, wake up, forced shutdown, timer switch, set the remote online upgrade volume, application, set the terminal download speed limit. | |
Multimedia Support |
Video decoding |
Real-time video decoding, support MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC Decoding |
Decoding resolution |
Up to 1080P@60fps |
|
Video Coding |
H.264,MVC, VP8 |
|
Coding Resolution |
Up to 1080P@30fps |
|
Image Format |
Support JPG,JPEG,BMP,PNG,GIF |
|
Text Format |
TXT(doc) |
|
Video Player |
Support MPEG1,MPEG2,MPEG4,H.264,WMV,MKV,TS,flv |
|
Audio Player |
Support MP3 |
|
Basic Interface |
USB Interface |
1× USB OTG |
Audio Output |
Stereo CLASS-D Amplifier Output |
|
3G Module Interface |
1× PCIE slot (supporting a phone deck) |
|
LVDS Export |
1, can directly drive LCD screen 50/60Hz |
|
Video Input |
VGA×1,HDMI×1 |
|
Audio Enter |
3.5mm Phone Jack |
|
Extended Interface |
1×Serial Ports |
|
Additional features |
RTC Real-time clock |
Support |
Timer switch |
Support |
|
System Upgrade |
Applications can be updated via the following two ways: | |
| network upgrade mode; | ||
| USB imported upgrade file mode; | ||
Electrical Specifications |
Power Input |
Switching power supply (with 12V, 5V), see Interface Description: The power input connector J1 |
Standby Power |
≤6W (when not connected to the speaker / LCD screen / backlight inverter / USB device) |
|
Work Environment |
Operating Temperature |
0°C~40°C |
Humidity |
10%~90%,No condensation |
|
Storage Temperature |
-20°C~60°C,Recommend 5°C~35°C |
|
